Titan Turbos TTS Gen2 68/71 Turbo for Duramax LML
SKU / Part #: DD-LML-106871
Rated 5.0 on Google (110+ reviews) – Ropesville, TX
See all fitments (4 vehicles)
Fits:
- 2011–2016 Chevrolet Silverado 2500HD (LML Duramax)
- 2011–2016 Chevrolet Silverado 3500HD (LML Duramax)
- 2011–2016 GMC Sierra 2500HD (LML Duramax)
- 2011–2016 GMC Sierra 3500HD (LML Duramax)
Fitment notes: 2011-2016 Chevy/GMC 2500HD/3500HD 6.6L Duramax LML
Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.
Customize Your Item
Please choose Finish
Find codes at prismaticpowders.com. We powder coat it in that color.
Please enter your Prismatic color code
Tracking is emailed when your order ships.
Free shipping to the lower 48 states.
Built or ordered for you; see the lead time above.
Estimate shipping to your ZIP
- 30-day returns (20% restocking fee)
- Special orders are non-returnable unless defective · Return policy
- Free local pickup in Ropesville, TX
- Secure checkout with Shop Pay & PayPal
Description

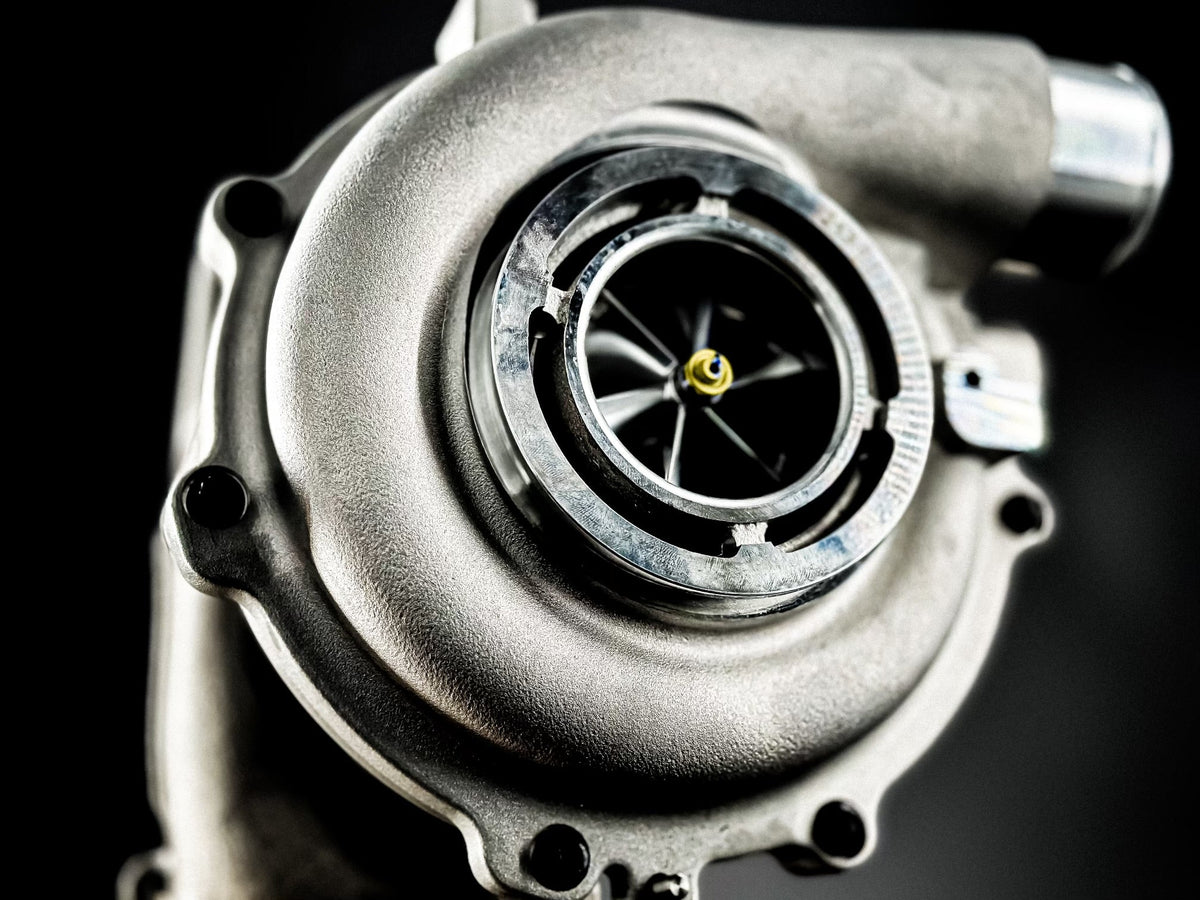

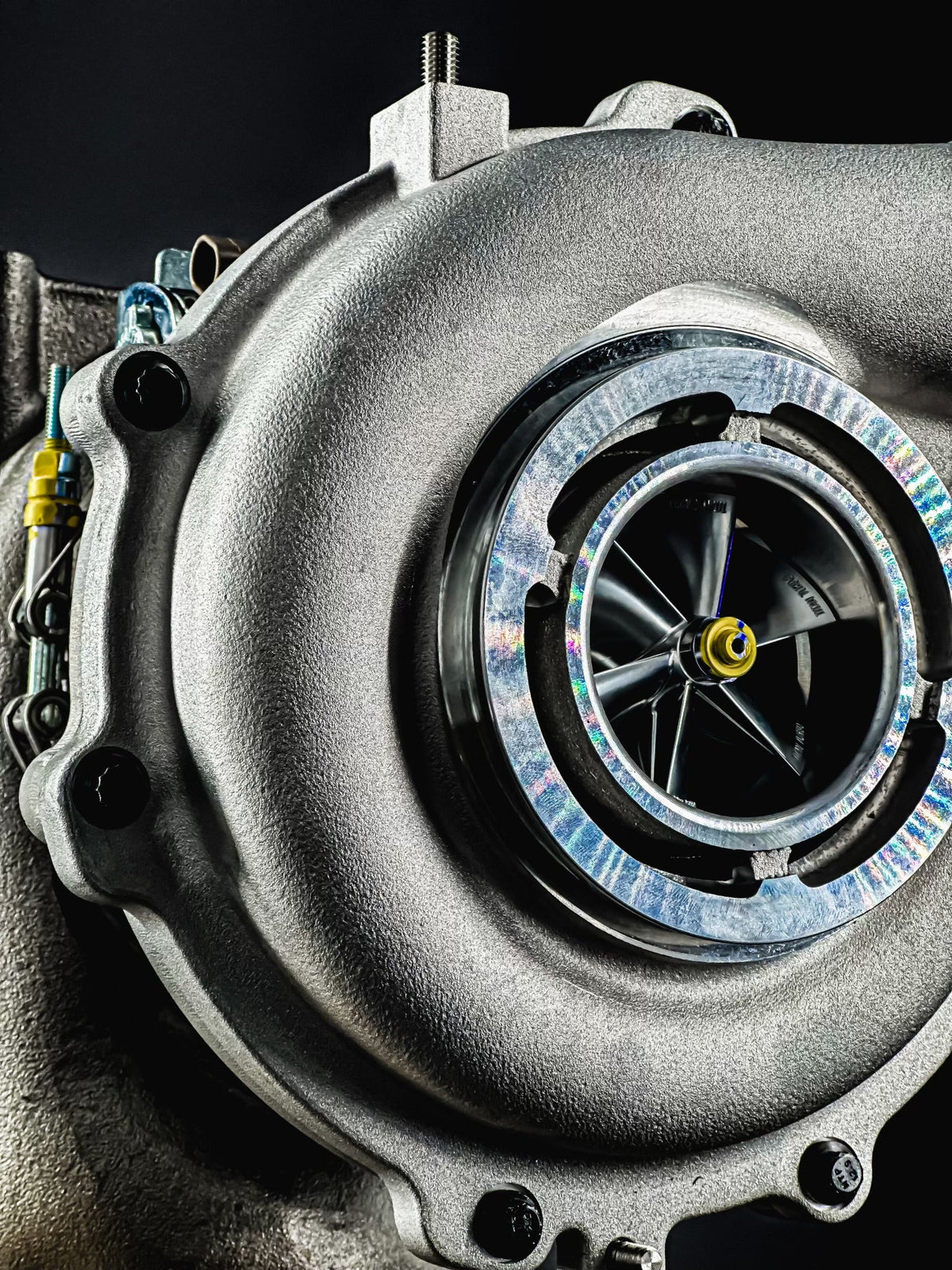

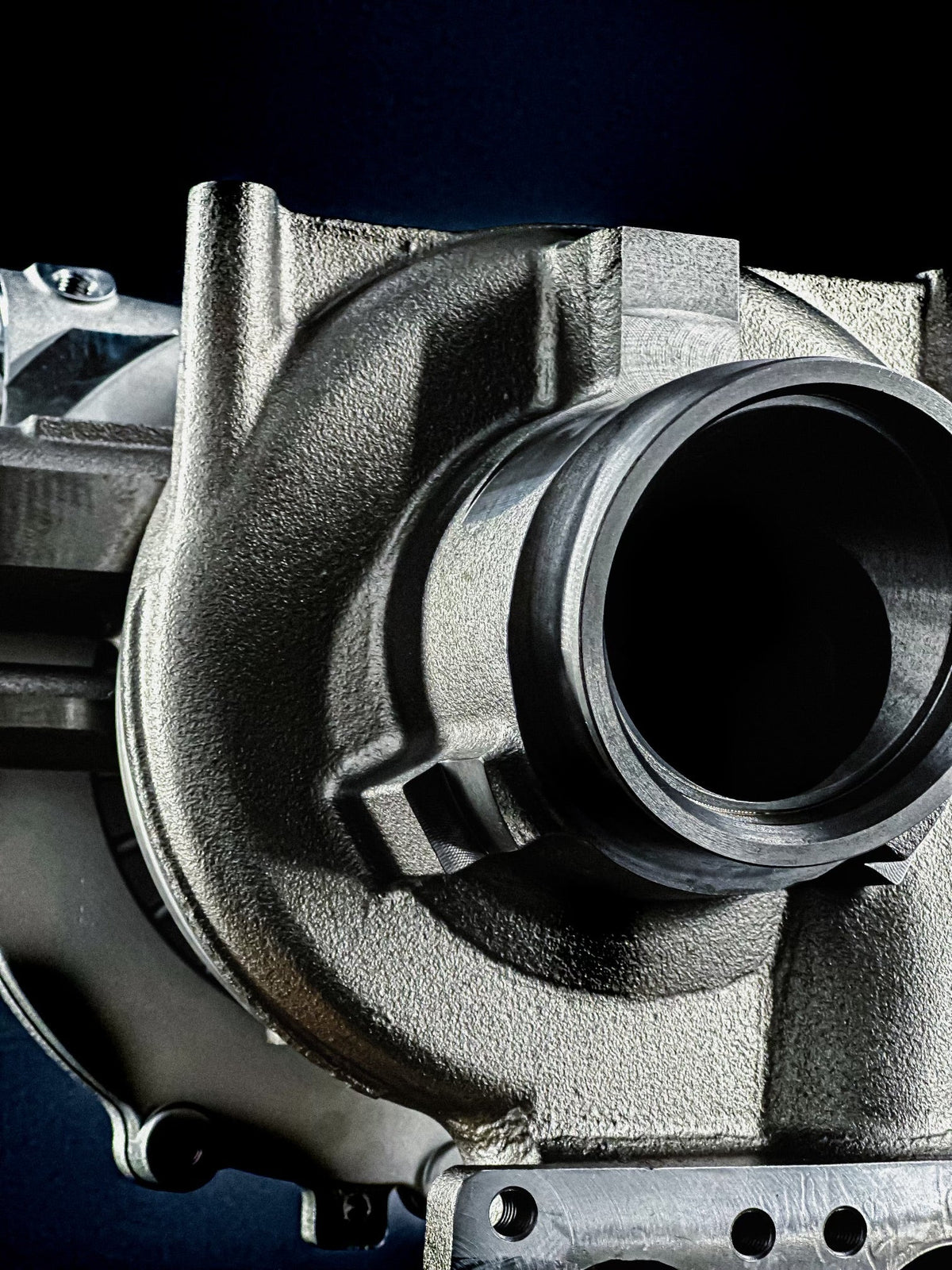

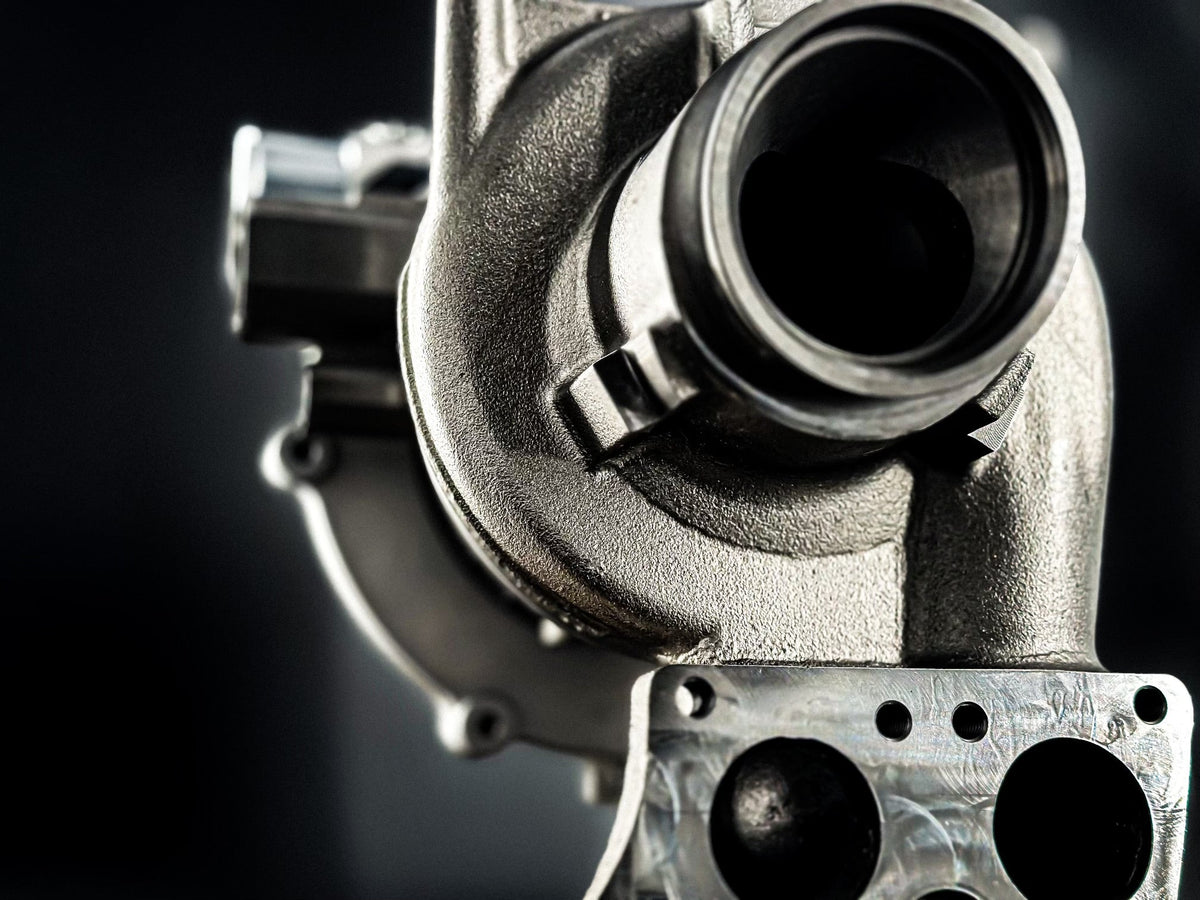

On this page: the TTS Gen2 68/71 Turbo for Duramax LML. The Titan Turbo Service TTS Gen2 68/71 is a built-to-order turbo for the Duramax LML Chevy and GMC heavy-duty trucks. It pairs a 68mm dual-plane billet compressor wheel with a 71mm high-flow 10-blade turbine and a 360-degree thrust bearing.
It's Titan's biggest LML drop-in. It needs added fuel and supports up to 150% injectors. Titan fits a non-magnetic stainless unison ring, high-flow vanes, a new Garrett VGT solenoid and a vane position sensor; no other changes are needed to drop it in.
Why we like it
- Supports up to 150% injectors
- 1-year / 12,000-mile warranty on manufacturer defects
- Includes VGT solenoid and vane position sensor
- Needs added fueling
Black Diamond Unlimited in Ropesville, Texas carries Titan Turbo Service, a builder of diesel turbochargers for Ford, Ram and GM trucks.
Options: Finishes offered: raw, custom powder coat (6-10 day lead) and polished (5 day lead).
What's included: Titan TTS Gen2 VGT turbocharger, brand new; Garrett VGT solenoid; Vane position sensor; All gaskets needed to install.
Install notes: You will need a custom ECM tune. Have a qualified shop install it.
Shipping weight: Weight runs about 56-70 lb with options.
Fitment: 2011-2016 Chevrolet Silverado / GMC Sierra 2500HD / 3500HD with the 6.6L Duramax LML.
Lead time and shipping: Titan assembles it after you order and sends it direct. Lead time is usually 1-2 business days. Polished finishes add about 5 days; custom powder coat adds about 6-10. Custom powder coat requires a color name and code, which we confirm with you once you order.
Trying to decide on a size? Black Diamond Unlimited can help you pick: call (806) 503-2161.
Fitment
Titan Turbo Service product: DURAMAX LML TTS GEN2 68/71
Specifications
Compressor: 68mm dual-plane billet compressor wheel
Turbine: 71mm high-flow 10-blade turbine
Thrust bearing: 360-degree
Type: Variable geometry (VGT)
Warranty: 1 year / 12,000 miles against manufacturer defects
Finish options: Raw, Custom Powder Coat (6-10 Day Lead), Polished (5 Day Lead)
Price, SKU and shipping weight by option:
Raw: $2,725.00, SKU DD-LML-106871, 56 lb
Custom Powder Coat (6-10 Day Lead): $2,975.00, SKU none listed by Titan, 70 lb
Polished (5 Day Lead): $2,975.00, SKU none listed by Titan, 70 lb
What's included
Garrett VGT solenoid
Vane position sensor
All gaskets needed to install
Installation
Professional installation recommended.
Questions? Call Black Diamond Unlimited at (806) 503-2161.
