Industrial Injection

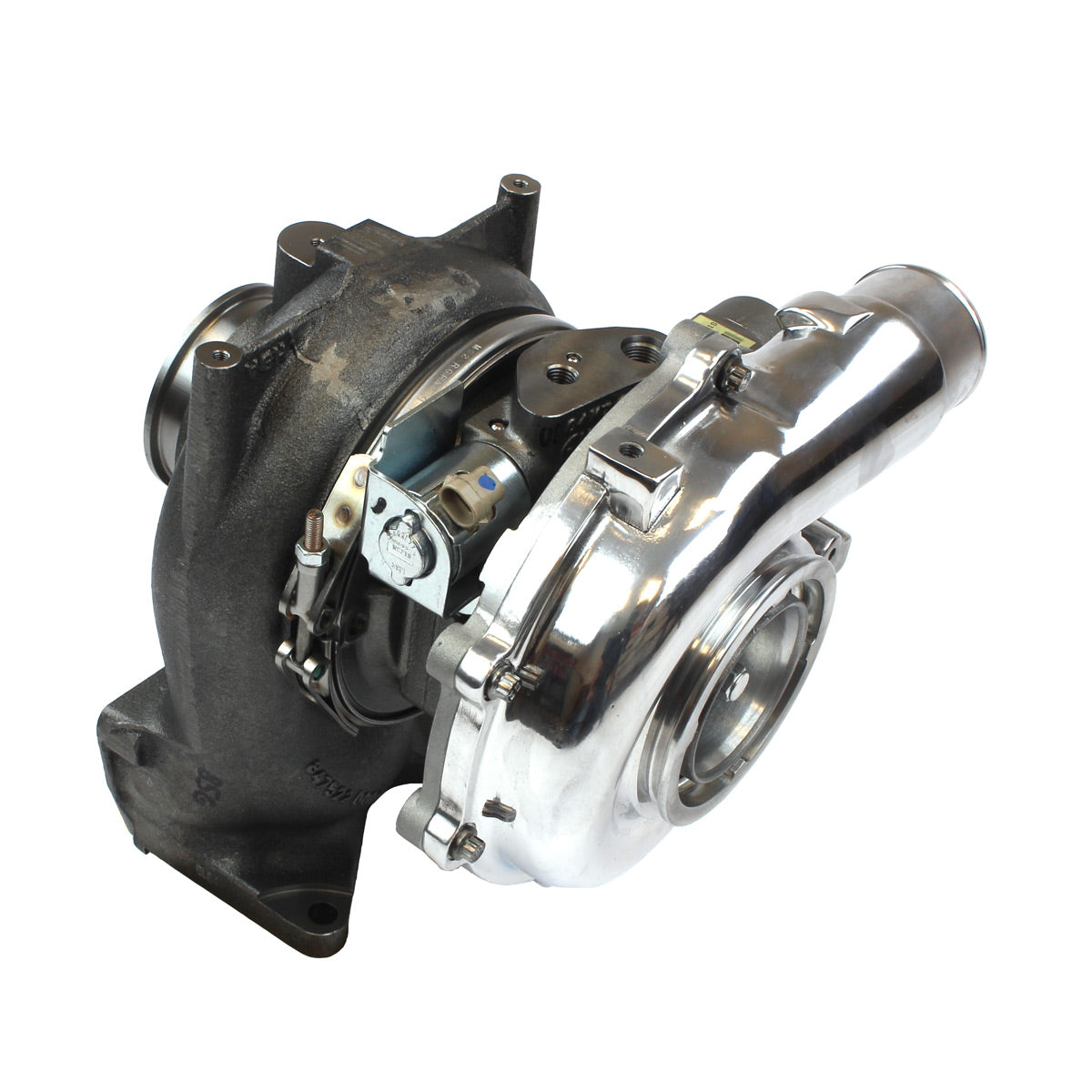

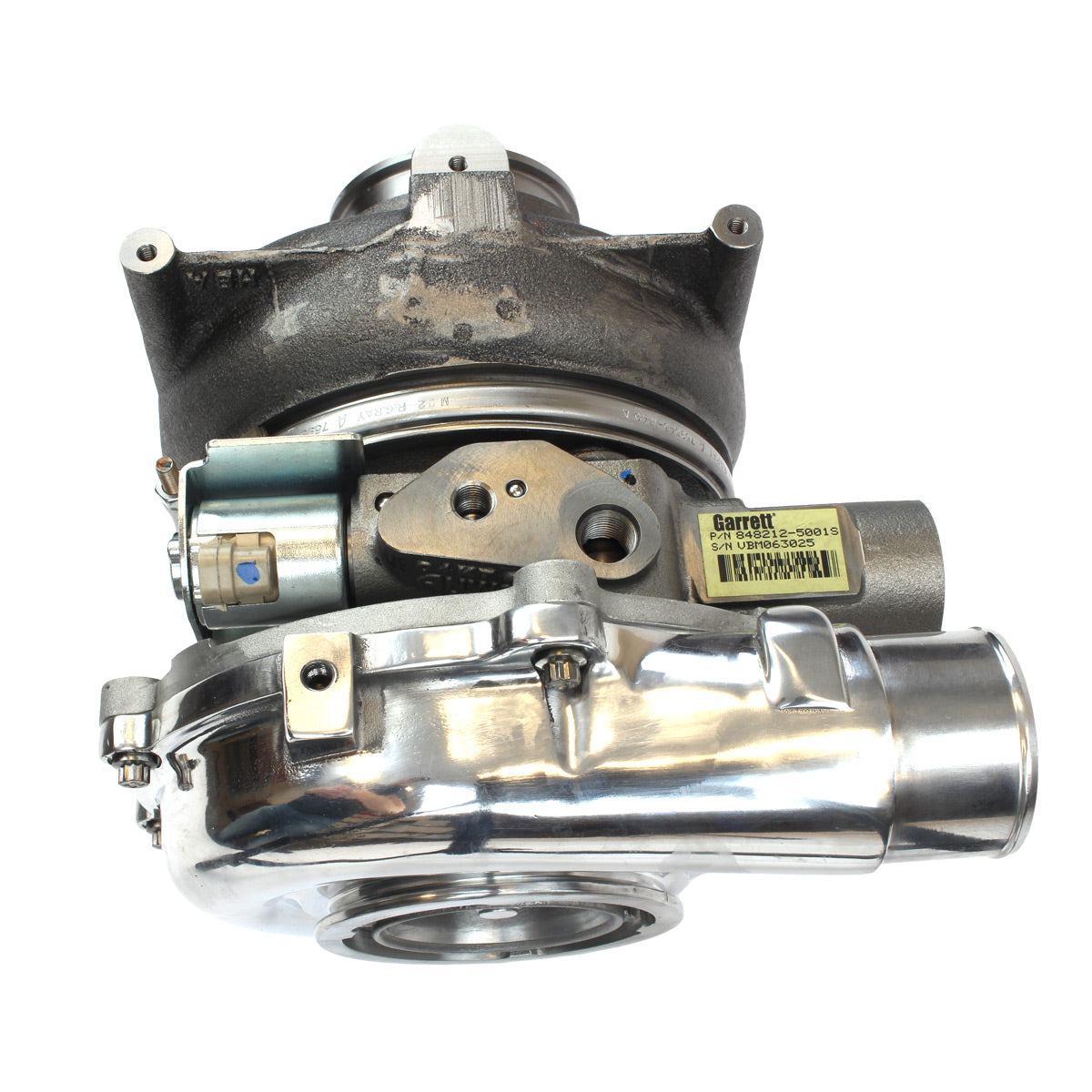

Industrial Injection XR1 Series GT3788 64mm Billet Turbocharger for 2004.5–2010 Chevy/GMC 2500HD/3500HD 6.6L Duramax LLY/LBZ/LMM

SKU / Part #: 848212-0001-XR1

$2,251.32

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

Only 5 left - order soonShips direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (4 vehicles)

Fits:

  • 2004–2010 Chevrolet Silverado 2500HD (LMM Duramax, LBZ Duramax, LLY Duramax)
  • 2004–2010 Chevrolet Silverado 3500HD (LMM Duramax, LBZ Duramax, LLY Duramax)
  • 2004–2010 GMC Sierra 2500HD (LMM Duramax, LBZ Duramax, LLY Duramax)
  • 2004–2010 GMC Sierra 3500HD (LMM Duramax, LBZ Duramax, LLY Duramax)

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $27.95 (53.0 lb) . Not eligible for free shipping.

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to California or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

Here is the XR1 Series GT3788 64mm billet turbocharger, a bolt-in upgrade for the 2004.5–2010 Chevy/GMC 2500HD/3500HD 6.6L Duramax LLY/LBZ/LMM. It uses the factory mounting points, so you get more airflow than the stock turbo without a custom manifold or piping job.

A bigger turbo lowers exhaust gas temperatures under load and feeds larger injectors or tuning the air they need, right where a stock turbo runs out of breath.

Why we like it

  • Stronger billet compressor wheel with more airflow
  • Emissions: not CARB exempt. On pollution-controlled vehicles, for off-road or competition use only
  • Helps tuned trucks run cooler EGTs
  • Factory-style fit with stock mounting points
  • Built on a new Garrett/BorgWarner core, not a rebuilt unit
  • Engine: 6.6L Duramax LLY/LBZ/LMM

What's in the box

One new XR1 Series GT3788 64mm Billet Turbocharger. Quote part 848212-0001-XR1 if you call about this one.

Fitment

2004.5–2010 Chevy/GMC 2500HD/3500HD 6.6L Duramax LLY/LBZ/LMM. Industrial Injection part number 848212-0001-XR1.

Install notes

Custom tuning is recommended to take advantage of the extra airflow. New gaskets, oil and coolant lines are needed on some installs, so call us for a quote on them. We suggest a professional install. Let the 6.6L Duramax LLY/LBZ/LMM idle and check for leaks after the job.

California and CARB states: without a CARB exemption number, this part is for off-road or competition use only on pollution-controlled vehicles in those states. We do not ship it to California.

Questions on fitment? Reach the shop at (806) 503-2161.

Fitment
2004.5–2010 Chevy/GMC 2500HD/3500HD 6.6L Duramax LLY/LBZ/LMM
Specifications
Brand: Industrial Injection
Manufacturer part number: 848212-0001-XR1
APG part number: IIS848212-0001-XR1
UPC: 840256911534
Shipping weight: 53.0 lb
Package dimensions: 15.0 x 14.0 x 14.0 in
CARB status: not CARB exempt (off-road / competition use only)
What's included
One new XR1 Series GT3788 64mm Billet Turbocharger.
Installation
Custom tuning is recommended to take advantage of the extra airflow. Some installs need new gaskets, oil and coolant lines; call us if you want those quoted. Professional installation recommended.
Specs & part info
BrandIndustrial Injection
Part number / SKU848212-0001-XR1
UPC / MPN840256911534
CategoryTurbo Upgrades
Shipping weight53.0 lb
