Firestone Sport-Rite Rear Air Helper Spring Kit - 1999-2005 Chevrolet Silverado 1500 / GMC Sierra 1500 (not HD) and 1997-2004 Ford F-150

SKU / Part #: 2320

$594.12Regular price$780.86Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

Only 1 left - order soonShips direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (3 vehicles)

Fits:

  • 1997–2004 Ford F-150
  • 1999–2005 Chevrolet Silverado 1500
  • 1999–2005 GMC Sierra 1500

Fitment notes: Fits 1999-2005 Chevrolet Silverado 1500 / GMC Sierra 1500 (not HD) and 1997-2004 Ford F-150.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $21.95 (22.1 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

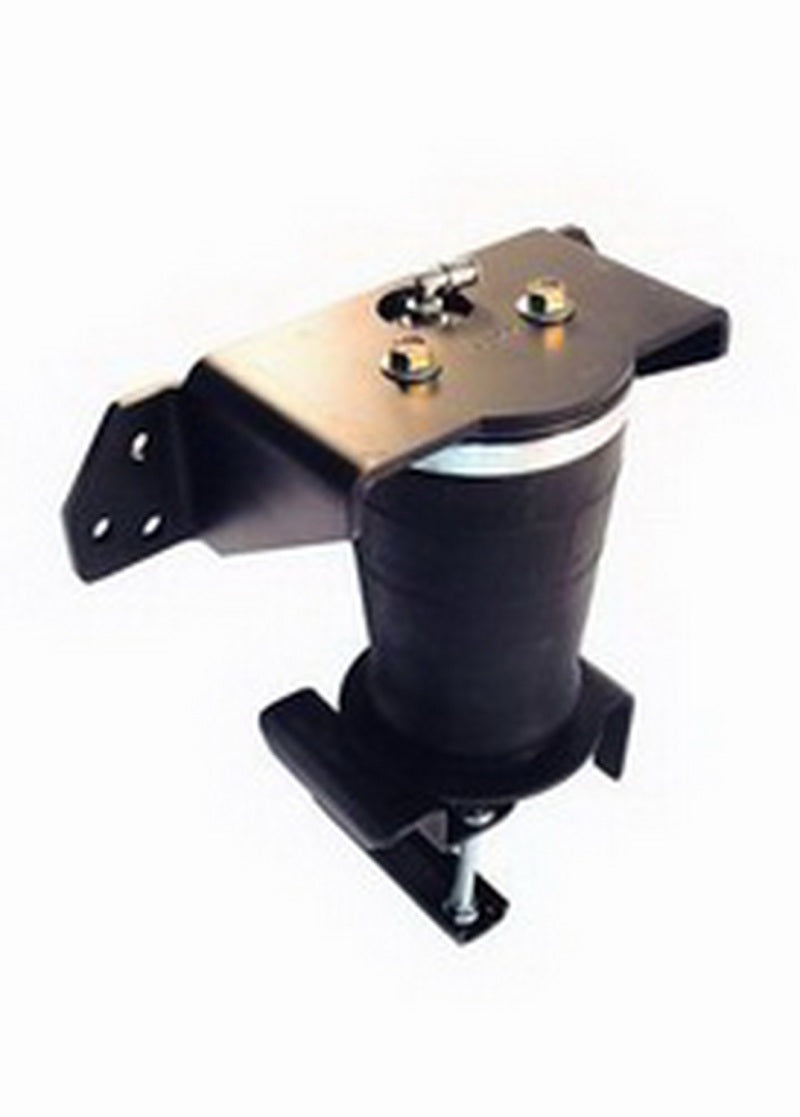

Firestone Sport-Rite air helper springs mount between the frame and rear axle of your 1999-2005 Chevrolet Silverado 1500 / GMC Sierra 1500 (not HD) and 1997-2004 Ford F-150 and give the factory leaf springs adjustable help. Put air in ahead of a towing or hauling job and the rear end holds its height, which keeps weight on the front axle for steering and braking and keeps your lights out of oncoming drivers' eyes. Once the load comes off, let air out and you are back to a near-factory ride. Hot shot runs, hay hauls and RV trips are exactly the jobs a Chevrolet Silverado 1500 / GMC Sierra 1500 and Ford F-150 gets bought for.

Sport-Rite uses a tapered air spring that improves ride quality empty and adds up to 3,000 lbs of load support per pair when you need it (never exceed your truck's GVWR). Separate inflation valves for each side let you level an off-center load.

Features

  • Holds the Chevrolet Silverado 1500 / GMC Sierra 1500 and Ford F-150 level with a trailer hooked up or the bed full
  • 3,000 lb leveling capacity per kit, within your GVWR
  • Run different pressures per side for lopsided cargo
  • Expect to drill a few holes for the brackets
  • 5 PSI minimum pressure, loaded or empty
  • Steadier handling, better steering feel and more confident stops when loaded
  • Support adjusts with air pressure, from an empty bed to a full payload

Specs

  • Firestone part number: 2320 (W217602320)
  • Shipping weight: 22.1 lb
  • UPC: 767555106587

Fitment

  • 1999-2005 Chevrolet Silverado 1500 / GMC Sierra 1500 (not HD) and 1997-2004 Ford F-150

What's included

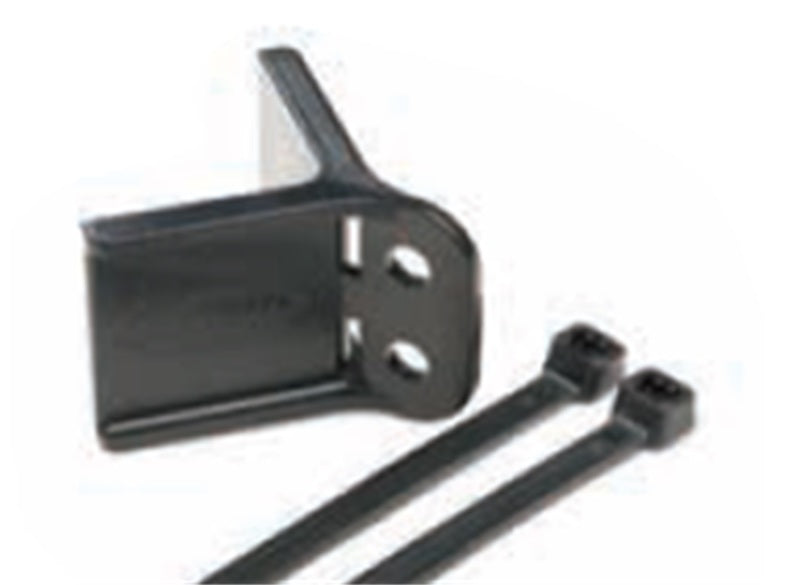

Kit includes upper and lower brackets, two air springs, mounting hardware, air line and inflation valves.

Install notes

Bolt-on with hand tools, with some drilling required for bracket mounting. Most installs wrap up in 2-3 hours. Route air lines well away from heat and moving parts, spray-check the fittings for leaks, and hold at least 5 PSI in the springs.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
1999-2005 Chevrolet Silverado 1500 / GMC Sierra 1500 (not HD) and 1997-2004 Ford F-150
Specifications
Levels the truck when towing or hauling and cuts rear squat
Improves stability, steering feel and braking under load
Adjustable with air pressure for any load, empty to fully loaded
Separate inflation valves for side-to-side leveling of off-center loads
Supports up to 3,000 lbs of load leveling per kit (do not exceed GVWR)
Keep at least 5 PSI in the springs at all times
Some drilling required for the brackets
Firestone part number: 2320 (W217602320)
Shipping weight: 22.1 lb
UPC: 767555106587
What's included
Kit includes upper and lower brackets, two air springs, mounting hardware, air line and inflation valves.
Installation
Bolt-on install with hand tools, plus some drilling for the brackets. Most installs take 2-3 hours. Route the air lines away from the exhaust and moving parts, check for leaks after install, and keep at least 5 PSI in the springs at all times.
