Firestone Sport-Rite Rear Air Helper Spring Kit - 1995-2004 Toyota Tacoma 4WD and 2WD PreRunner
SKU / Part #: 2304
See all fitments (1 vehicle)
Fits:
- 1995–2004 Toyota Tacoma (2WD/4WD)
Fitment notes: Fits 1995-2004 Toyota Tacoma 4WD and 2WD PreRunner.
Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.
Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.
- Flat-rate shipping from $17.95 · Free on orders $999+
- 30-day returns (20% restocking fee)
- Free local pickup in Ropesville, TX
- Secure checkout with Shop Pay & PayPal
Description

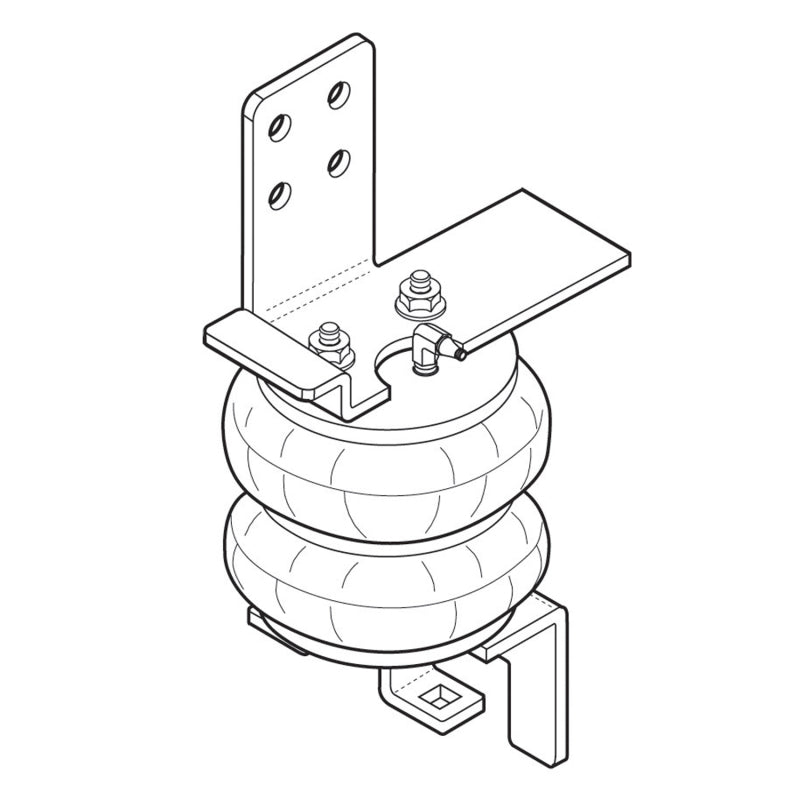

Firestone Sport-Rite air helper springs mount between the frame and rear axle of your 1995-2004 Toyota Tacoma 4WD and 2WD PreRunner and give the factory leaf springs adjustable help. Add pressure before hitching up or loading the bed and the Toyota Tacoma and PreRunner sits level, so the front tires keep their grip, the headlights stay pointed at the road and braking feels normal again. With no load, lower the pressure and the ride quality stays close to how the truck left the factory. Mid-size trucks like the Toyota Tacoma and PreRunner run out of rear spring quickly with a trailer or a loaded rack.
Sport-Rite uses a tapered air spring that improves ride quality empty and adds up to 3,000 lbs of load support per pair when you need it (never exceed your truck's GVWR). Separate inflation valves for each side let you level an off-center load.
Features
- Keeps the rear from squatting under tongue weight or a loaded bed
- Up to 3,000 lbs of load-leveling capacity (GVWR still applies)
- Run a minimum of 5 PSI at all times to protect the springs
- Tune it for the job: low pressure empty, more pressure loaded
- Bracket install calls for some drilling
- Puts weight back on the front tires for steering and braking
- One valve per spring to correct side-to-side lean
Specs
- Firestone part number: 2304 (W217602304)
- Shipping weight: 16.8 lb
- UPC: 767555105030
Fitment
- 1995-2004 Toyota Tacoma 4WD and 2WD PreRunner
What's included

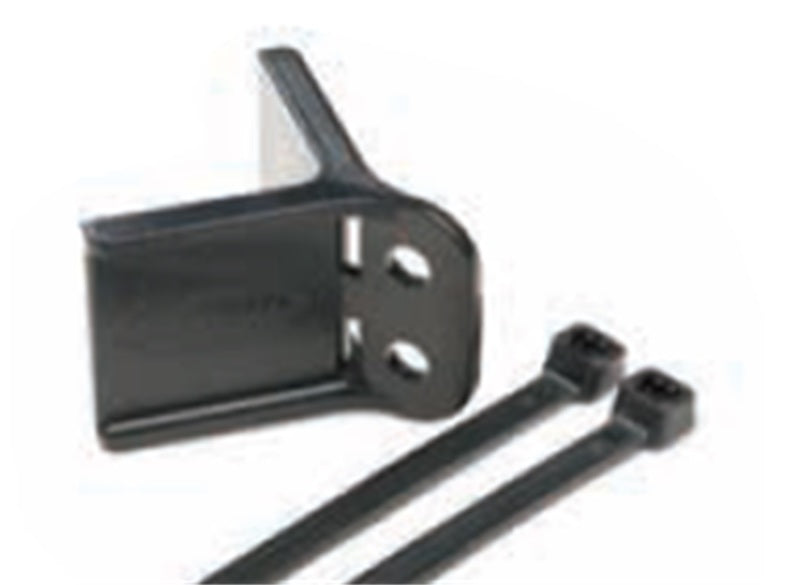

The box holds both air springs, the upper and lower brackets, hardware, air line and fill valves.
Install notes
Mostly a hand-tool bolt-on, though the brackets need a few holes drilled. Typical install time runs 2-3 hours. Route air lines well away from heat and moving parts, spray-check the fittings for leaks, and hold at least 5 PSI in the springs.
Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.
Fitment
Specifications
Improves stability, steering feel and braking under load
Adjustable with air pressure for any load, empty to fully loaded
Separate inflation valves for side-to-side leveling of off-center loads
Supports up to 3,000 lbs of load leveling per kit (do not exceed GVWR)
Keep at least 5 PSI in the springs at all times
Some drilling required for the brackets
Firestone part number: 2304 (W217602304)
Shipping weight: 16.8 lb
UPC: 767555105030
