Firestone Ride-Rite Rear Air Helper Spring Kit - 2024-2025 Toyota Tacoma 4WD

SKU / Part #: 2599

$562.28Regular price$739.00Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

Only 4 left - order soonShips direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (1 vehicle)

Fits:

  • 2024–2025 Toyota Tacoma (4WD)

Fitment notes: Fits 2024-2025 Toyota Tacoma 4WD.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $21.95 (24.5 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

If your Toyota Tacoma sags every time the bed or the hitch gets weight on it, this Ride-Rite kit is the fix: Firestone air helper springs sit between the frame and rear axle of the 2024-2025 Toyota Tacoma 4WD and carry part of the load. Inflate before you load and the rear stops squatting, so the front end keeps the weight it needs to steer and stop, and your low beams stay on the pavement instead of the treetops. Once the load comes off, let air out and you are back to a near-factory ride. Mid-size trucks like the Toyota Tacoma run out of rear spring quickly with a trailer or a loaded rack.

The springs fill independently, one valve per side, so a lopsided load like a transfer tank or a side-heavy tool box can be leveled out with a few extra PSI where it is needed. Rated load leveling for this kit is up to 5,000 lbs per pair, and the truck's GVWR still applies.

Features

  • Stops rear sag when towing or hauling
  • Included brackets position each spring between the frame rail and axle
  • Rated for 5,000 lbs of leveling support; stay under GVWR
  • Tune it for the job: low pressure empty, more pressure loaded
  • Independent left and right fill valves for uneven loads
  • Never let the springs drop below 5 PSI
  • Loaded-truck steering and braking feel closer to normal

Specs

  • Firestone part number: 2599 (W217602599)
  • Shipping weight: 24.5 lb
  • UPC: 767555174197

Fitment

  • 2024-2025 Toyota Tacoma 4WD

What's included

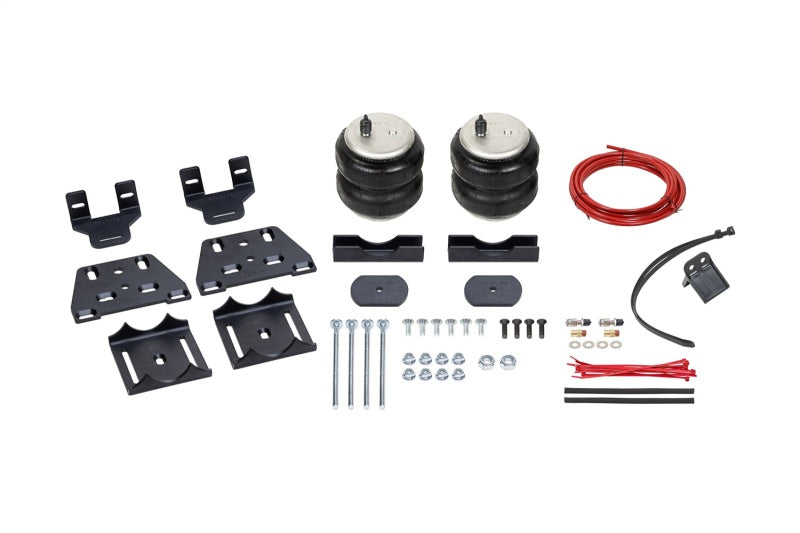

In the box: two air helper springs, the brackets for this application, mounting hardware, air line and two inflation valves.

Install notes

Plan on a bolt-on job with basic hand tools; the brackets are included. Figure about 1-2 hours for most installs. Keep the air line clear of the exhaust and anything that moves, leak-check every fitting when you finish, and never run below 5 PSI.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
2024-2025 Toyota Tacoma 4WD
Specifications
Levels the truck when towing or hauling and cuts rear squat
Improves stability, steering feel and braking under load
Adjustable with air pressure for any load, empty to fully loaded
Separate inflation valves for side-to-side leveling of off-center loads
Supports up to 5,000 lbs of load leveling per kit (do not exceed GVWR)
Keep at least 5 PSI in the springs at all times
Mounts between the frame and axle with the included brackets
Firestone part number: 2599 (W217602599)
Shipping weight: 24.5 lb
UPC: 767555174197
What's included
Complete kit with two air springs, brackets, mounting hardware, air line and inflation valves.
Installation
Bolt-on install with hand tools using the included brackets. Most installs take about 1-2 hours. Route the air lines away from the exhaust and moving parts, check for leaks after install, and keep at least 5 PSI in the springs at all times.
Specs & part info
BrandFirestone
Part number / SKU2599
UPC / MPN767555174197
CategoryAir Suspension
Shipping weight24.5 lb
