Firestone

Firestone Ride-Rite Rear Air Helper Spring Kit - 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD

SKU / Part #: 2625

$633.94Regular price$833.19Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

In stock Ships direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (3 vehicles)

Fits:

  • 2017–2024 Ford F-250 (4WD)
  • 2017–2024 Ford F-350 (4WD)
  • 2017–2024 Ford F-450 (4WD)

Fitment notes: Fits 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $27.95 (39.8 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

Firestone sized this Ride-Rite kit specifically for the 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD. The two air helper springs install above the rear axle, under the frame, and work alongside the factory rear springs instead of replacing them. Add pressure before hitching up or loading the bed and the Ford F-250/F-350/F-450 Super Duty sits level, so the front tires keep their grip, the headlights stay pointed at the road and braking feels normal again. Bleed them back down when the bed is empty and the ride goes back to about where the factory had it. Heavy-duty owners feel the difference most with a loaded flatbed or a big fifth-wheel behind the Ford F-250/F-350/F-450 Super Duty.

Two separate inflation valves let you run the left and right springs at different pressures, handy when a slide-in camper, fuel transfer tank or tool box puts more weight on one side. Firestone rates the kit for as much as 5,000 lbs of leveling support. It does not raise your GVWR, so never load past it.

Features

  • Holds the Ford F-250/F-350/F-450 Super Duty level with a trailer hooked up or the bed full
  • Run different pressures per side for lopsided cargo
  • Loaded-truck steering and braking feel closer to normal
  • Bolts up through existing factory holes, no drilling
  • Support adjusts with air pressure, from an empty bed to a full payload
  • Up to 5,000 lbs of load-leveling capacity (GVWR still applies)
  • Run a minimum of 5 PSI at all times to protect the springs

Specs

  • Firestone part number: 2625 (W217602625)
  • Shipping weight: 39.8 lb
  • UPC: 76755169728

Fitment

  • 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD

What's included

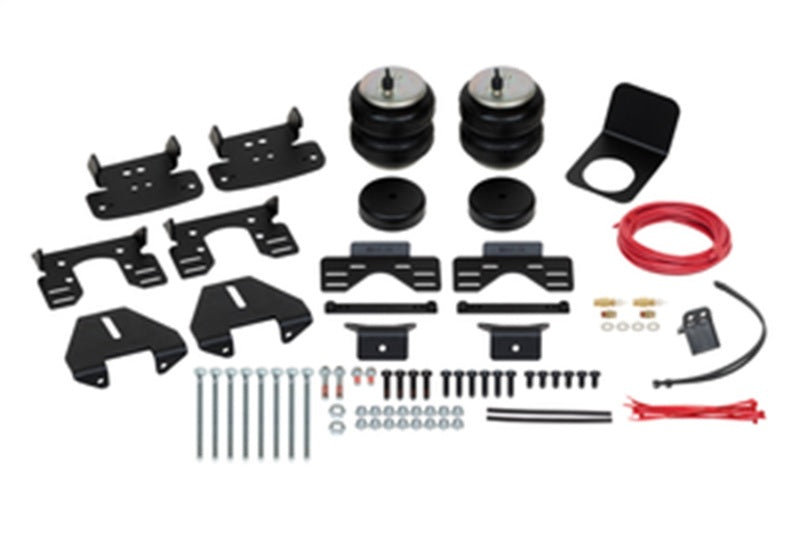

In the box: two air helper springs, the brackets for this application, mounting hardware, air line and two inflation valves.

Install notes

Nothing to drill: the kit mounts using holes already in the chassis. Typical time in the driveway is 1-2 hours with hand tools. Keep the air line clear of the exhaust and anything that moves, leak-check every fitting when you finish, and never run below 5 PSI.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD
Specifications
Levels the truck when towing or hauling and cuts rear squat
Improves stability, steering feel and braking under load
Adjustable with air pressure for any load, empty to fully loaded
Separate inflation valves for side-to-side leveling of off-center loads
Supports up to 5,000 lbs of load leveling per kit (do not exceed GVWR)
Keep at least 5 PSI in the springs at all times
No-drill install using factory holes
Firestone part number: 2625 (W217602625)
Shipping weight: 39.8 lb
UPC: 76755169728
What's included
Complete kit with two air springs, brackets, mounting hardware, air line and inflation valves.
Installation
No-drill install that uses the factory holes. Most installs take about 1-2 hours with hand tools. Route the air lines away from the exhaust and moving parts, check for leaks after install, and keep at least 5 PSI in the springs at all times.
Specs & part info
BrandFirestone
Part number / SKU2625
UPC / MPN76755169728
CategoryAir Suspension
Shipping weight39.8 lb
Shipping & pickup

Ships direct from a US warehouse in 1-3 business days. Most parts ship directly from a US warehouse; tracking is emailed as soon as it ships.

The shipping cost for this part is shown next to Add to cart. Full rates are in our shipping policy. Free local pickup in Ropesville, TX. 30-day returns (20% restocking fee).

Questions? Call (806) 503-2161 (Mon-Fri 8am-5pm CT) or email blackdiamondultd@gmail.com.
