Firestone Ride-Rite Rear Air Helper Spring Kit - 2007-2018 Toyota Tundra 2WD/4WD, including TRD
SKU / Part #: 2445
Rated 5.0 on Google (110+ reviews) – Ropesville, TX
See all fitments (1 vehicle)
Fits:
- 2007–2018 Toyota Tundra (2WD/4WD)
Fitment notes: Fits 2007-2018 Toyota Tundra 2WD/4WD, including TRD.
Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.
Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.
Ground shipping: $21.95 (20.4 lb) . Free on orders $999+ (lower 48).
Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.
Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.
Estimate shipping to your ZIP
- 30-day returns (20% restocking fee)
- Free local pickup in Ropesville, TX
- Secure checkout with Shop Pay & PayPal
Description
Built for the 2007-2018 Toyota Tundra 2WD/4WD, including TRD, this Firestone Ride-Rite kit adds two air helper springs between the frame rails and the rear axle, so the stock rear springs get help only when you ask for it. Put air in ahead of a towing or hauling job and the rear end holds its height, which keeps weight on the front axle for steering and braking and keeps your lights out of oncoming drivers' eyes. Bleed them back down when the bed is empty and the ride goes back to about where the factory had it. On a half-ton Toyota Tundra, a camper trailer or a bed of mulch is usually enough to make the rear sag.
Two separate inflation valves let you run the left and right springs at different pressures, handy when a slide-in camper, fuel transfer tank or tool box puts more weight on one side. Firestone rates the kit for as much as 5,000 lbs of leveling support. It does not raise your GVWR, so never load past it.
Features
- Keeps the rear from squatting under tongue weight or a loaded bed
- Independent left and right fill valves for uneven loads
- Bolts up through existing factory holes, no drilling
- Less sway and better control with weight in the bed or on the hitch
- Tune it for the job: low pressure empty, more pressure loaded
- 5,000 lb leveling capacity per kit, within your GVWR
- Never let the springs drop below 5 PSI
Specs
- Firestone part number: 2445 (W217602445)
- Shipping weight: 20.4 lb
- UPC: 767555117286
Fitment
- 2007-2018 Toyota Tundra 2WD/4WD, including TRD
What's included

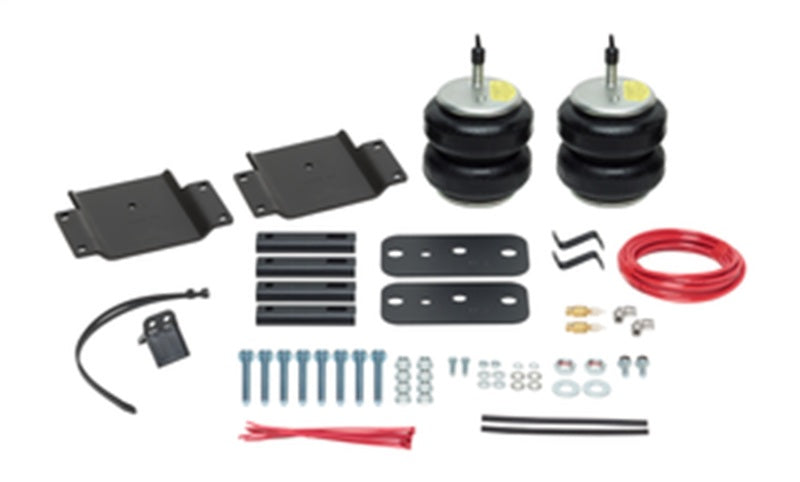

The box holds both air springs, the upper and lower brackets, hardware, air line and fill valves.
Install notes
The brackets bolt to existing factory holes, so nothing gets drilled. Budget roughly 1-2 hours with basic hand tools. Keep the air line clear of the exhaust and anything that moves, leak-check every fitting when you finish, and never run below 5 PSI.
Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.
Fitment
Specifications
Improves stability, steering feel and braking under load
Adjustable with air pressure for any load, empty to fully loaded
Separate inflation valves for side-to-side leveling of off-center loads
Supports up to 5,000 lbs of load leveling per kit (do not exceed GVWR)
Keep at least 5 PSI in the springs at all times
No-drill install using factory holes
Firestone part number: 2445 (W217602445)
Shipping weight: 20.4 lb
UPC: 767555117286
What's included
Installation
Specs & part info
| Brand | Firestone |
|---|---|
| Part number / SKU | 2445 |
| UPC / MPN | 767555117286 |
| Category | Air Suspension |
| Shipping weight | 20.4 lb |
