Firestone

Firestone Ride-Rite Rear Air Helper Spring Kit - 2003-2012 Dodge/Ram 2500 and 3500 pickup 2WD/4WD

SKU / Part #: 2299

$594.12Regular price$780.86Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

In stock Ships direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (2 vehicles)

Fits:

  • 2003–2012 Ram 2500 (2WD/4WD)
  • 2003–2012 Ram 3500 (2WD/4WD)

Fitment notes: Fits 2003-2012 Dodge/Ram 2500 and 3500 pickup 2WD/4WD.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $21.95 (28.5 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

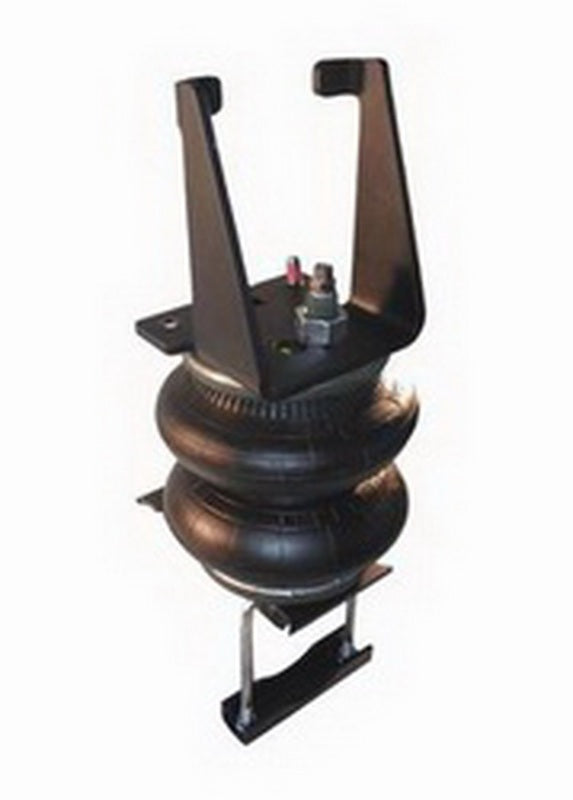

If your Dodge/Ram 2500 and 3500 pickup sags every time the bed or the hitch gets weight on it, this Ride-Rite kit is the fix: Firestone air helper springs sit between the frame and rear axle of the 2003-2012 Dodge/Ram 2500 and 3500 pickup 2WD/4WD and carry part of the load. Inflate before you load and the rear stops squatting, so the front end keeps the weight it needs to steer and stop, and your low beams stay on the pavement instead of the treetops. With no load, lower the pressure and the ride quality stays close to how the truck left the factory. That matters on a Dodge/Ram 2500 and 3500 pickup that spends its weekends hooked to a stock trailer or a toy hauler.

The springs fill independently, one valve per side, so a lopsided load like a transfer tank or a side-heavy tool box can be leveled out with a few extra PSI where it is needed. The pair is rated for up to 5,000 lbs of load-leveling capacity; stay within your truck's GVWR.

Features

  • Holds the Dodge/Ram 2500 and 3500 pickup level with a trailer hooked up or the bed full
  • One valve per spring to correct side-to-side lean
  • 5,000 lb leveling capacity per kit, within your GVWR
  • Bolts up through existing factory holes, no drilling
  • Dial in more or less support with a few PSI
  • 5 PSI minimum pressure, loaded or empty
  • Puts weight back on the front tires for steering and braking

Specs

  • Firestone part number: 2299 (W217602299)
  • Shipping weight: 28.5 lb
  • UPC: 767555104965

Fitment

  • 2003-2012 Dodge/Ram 2500 and 3500 pickup 2WD/4WD

What's included

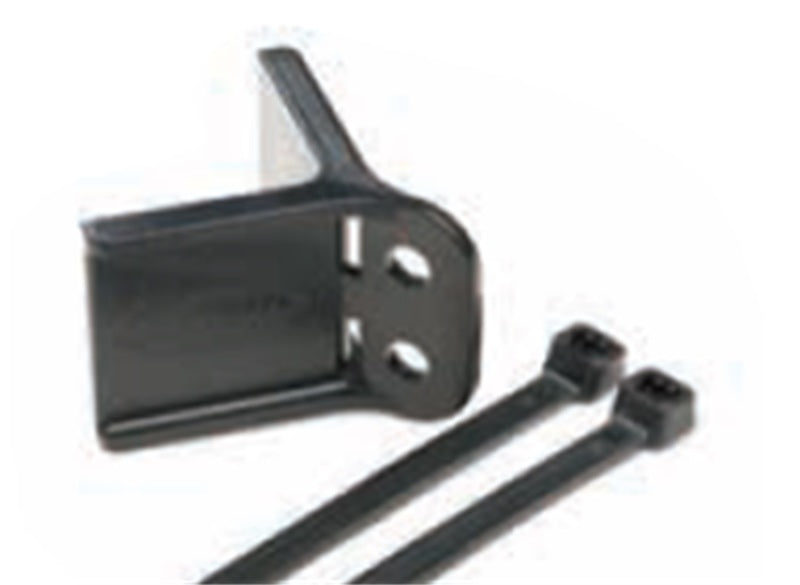

Upper and lower brackets, a pair of air helper springs, mounting hardware, air line and the inflation valves are all included.

Install notes

Nothing to drill: the kit mounts using holes already in the chassis. Typical time in the driveway is 1-2 hours with hand tools. After install, check all fittings for leaks, make sure the lines stay away from exhaust heat and suspension travel, and keep 5 PSI minimum in the springs.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
2003-2012 Dodge/Ram 2500 and 3500 pickup 2WD/4WD
Specifications
Levels the truck when towing or hauling and cuts rear squat
Improves stability, steering feel and braking under load
Adjustable with air pressure for any load, empty to fully loaded
Separate inflation valves for side-to-side leveling of off-center loads
Supports up to 5,000 lbs of load leveling per kit (do not exceed GVWR)
Keep at least 5 PSI in the springs at all times
No-drill install using factory holes
Firestone part number: 2299 (W217602299)
Shipping weight: 28.5 lb
UPC: 767555104965
What's included
Kit includes upper and lower brackets, two air helper springs, mounting hardware, air line and inflation valves.
Installation
No-drill install that uses the factory holes. Most installs take about 1-2 hours with hand tools. Route the air lines away from the exhaust and moving parts, check for leaks after install, and keep at least 5 PSI in the springs at all times.
Specs & part info
BrandFirestone
Part number / SKU2299
UPC / MPN767555104965
CategoryAir Suspension
Shipping weight28.5 lb
