Firestone

Firestone Ride-Rite Rear Air Helper Spring Kit - 1999-2004 Ford F-250/F-350 Super Duty

SKU / Part #: 2550

$660.96Regular price$868.71Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

In stock Ships direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (2 vehicles)

Fits:

  • 1999–2004 Ford F-250
  • 1999–2004 Ford F-350

Fitment notes: Fits 1999-2004 Ford F-250/F-350 Super Duty.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $27.95 (43.3 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

This Ride-Rite kit is matched to the 1999-2004 Ford F-250/F-350 Super Duty: a pair of Firestone air helper springs bolts in between the frame and rear axle and backs up the factory rear springs with support you set with air. Add pressure before hitching up or loading the bed and the Ford F-250/F-350 Super Duty sits level, so the front tires keep their grip, the headlights stay pointed at the road and braking feels normal again. Bleed them back down when the bed is empty and the ride goes back to about where the factory had it. On a heavy-duty Ford F-250/F-350 Super Duty, that usually means a gooseneck, a fifth-wheel or a bed full of equipment.

Two separate inflation valves let you run the left and right springs at different pressures, handy when a slide-in camper, fuel transfer tank or tool box puts more weight on one side. Rated load leveling for this kit is up to 5,000 lbs per pair, and the truck's GVWR still applies.

Firestone also lists 2008-2010 F-250/F-350 trucks for this kit, and now points to kit 2597 as its replacement. Call us and we will confirm the right one for your truck.

Features

  • Stops rear sag when towing or hauling
  • Dial in more or less support with a few PSI
  • Bolts up through existing factory holes, no drilling
  • Rated for 5,000 lbs of leveling support; stay under GVWR
  • Independent left and right fill valves for uneven loads
  • Run a minimum of 5 PSI at all times to protect the springs
  • Steadier handling, better steering feel and more confident stops when loaded

Specs

  • Firestone part number: 2550 (W217602550)
  • Shipping weight: 43.3 lb
  • UPC: 767555143490

Fitment

  • 1999-2004 Ford F-250/F-350 Super Duty

What's included

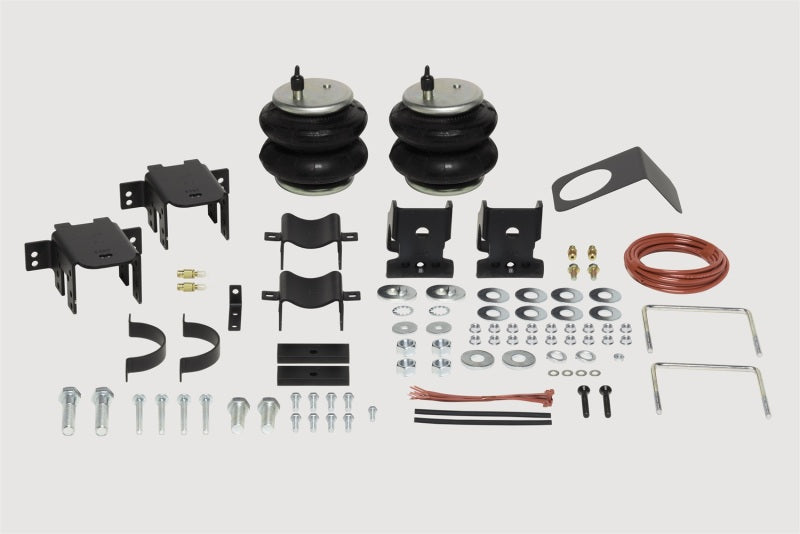

Upper and lower brackets, a pair of air helper springs, mounting hardware, air line and the inflation valves are all included.

Install notes

It goes in using factory mounting holes, with no drilling. Typical time in the driveway is 1-2 hours with hand tools. After install, check all fittings for leaks, make sure the lines stay away from exhaust heat and suspension travel, and keep 5 PSI minimum in the springs.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
1999-2004 Ford F-250/F-350 Super Duty
Specifications
Levels the truck when towing or hauling and cuts rear squat
Improves stability, steering feel and braking under load
Adjustable with air pressure for any load, empty to fully loaded
Separate inflation valves for side-to-side leveling of off-center loads
Supports up to 5,000 lbs of load leveling per kit (do not exceed GVWR)
Keep at least 5 PSI in the springs at all times
No-drill install using factory holes
Firestone part number: 2550 (W217602550)
Shipping weight: 43.3 lb
UPC: 767555143490
What's included
Kit includes upper and lower brackets, two air helper springs, mounting hardware, air line and inflation valves.
Installation
No-drill install that uses the factory holes. Most installs take about 1-2 hours with hand tools. Route the air lines away from the exhaust and moving parts, check for leaks after install, and keep at least 5 PSI in the springs at all times.
