Firestone Ride-Rite RED Label Extreme Duty Rear Air Spring Kit - 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD

SKU / Part #: 2716

$762.31Regular price$1,001.92Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

In stock Ships direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (3 vehicles)

Fits:

  • 2017–2024 Ford F-250 (4WD)
  • 2017–2024 Ford F-350 (4WD)
  • 2017–2024 Ford F-450 (4WD)

Fitment notes: Fits 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $27.95 (39.9 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

This RED Label kit is the heavy-hauler option for the 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD: two Firestone air springs go in between the frame and rear axle to back up the factory rear springs. Pump them up before the trailer goes on the ball or the bed fills up, and the Ford F-250/F-350/F-450 Super Duty stays flat instead of nose-up, with steady steering, normal braking and headlights aimed where they belong. Running empty? Drop the pressure and the Ford F-250/F-350/F-450 Super Duty rides close to stock. For a Ford F-250/F-350/F-450 Super Duty that pulls a gooseneck or carries a camper, that extra support shows up on every trip.

This is Firestone's commercial line: heavier rubber, coated brackets and a build meant for trucks that pull fifth-wheels and goosenecks or carry service bodies and campers every week. Expect up to 7,500 lbs of leveling capacity with springs rated to 150 PSI. Never go past the GVWR on the door sticker.

Features

  • Stops rear sag when towing or hauling
  • Independent left and right fill valves for uneven loads
  • No drilling: the brackets use holes already in the frame
  • Rated for 7,500 lbs of leveling support; stay under GVWR
  • Rated to 150 PSI; keep at least 5 PSI in them
  • Air pressure sets the support level for whatever you are carrying
  • Puts weight back on the front tires for steering and braking

Specs

  • Firestone part number: 2716 (W217602716)
  • Shipping weight: 39.9 lb
  • UPC: 767555170137

Fitment

  • 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD

What's included

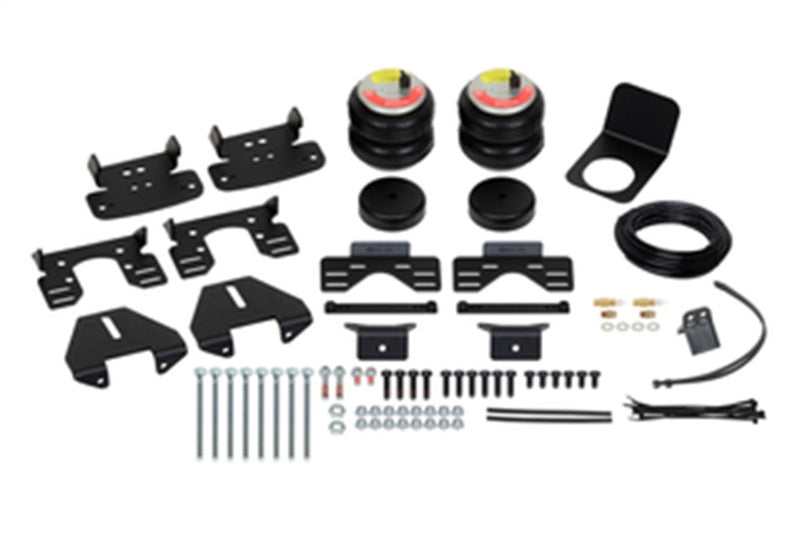

Two air springs plus brackets, hardware, air line and inflation valves, everything needed for the basic install.

Install notes

The brackets bolt to existing factory holes, so nothing gets drilled. Budget roughly 1-2 hours with basic hand tools. Keep the air line clear of the exhaust and anything that moves, leak-check every fitting when you finish, and never run below 5 PSI.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD
Specifications
Levels the truck when towing or hauling and cuts rear squat
Improves stability, steering feel and braking under load
Adjustable with air pressure for any load, empty to fully loaded
Separate inflation valves for side-to-side leveling of off-center loads
Supports up to 7,500 lbs of load leveling per kit (do not exceed GVWR)
Springs rated to 150 PSI max, 5 PSI minimum
No-drill install using factory holes
Firestone part number: 2716 (W217602716)
Shipping weight: 39.9 lb
UPC: 767555170137
What's included
Complete kit with two air springs, brackets, mounting hardware, air line and inflation valves.
Installation
No-drill install that uses the factory holes. Most installs take about 1-2 hours with hand tools. Route the air lines away from the exhaust and moving parts, check for leaks after install, and keep at least 5 PSI in the springs at all times.
Specs & part info
BrandFirestone
Part number / SKU2716
UPC / MPN767555170137
CategoryAir Suspension
Shipping weight39.9 lb
Shipping & pickup

Ships direct from a US warehouse in 1-3 business days. Most parts ship directly from a US warehouse; tracking is emailed as soon as it ships.

The shipping cost for this part is shown next to Add to cart. Full rates are in our shipping policy. Free local pickup in Ropesville, TX. 30-day returns (20% restocking fee).
