Firestone

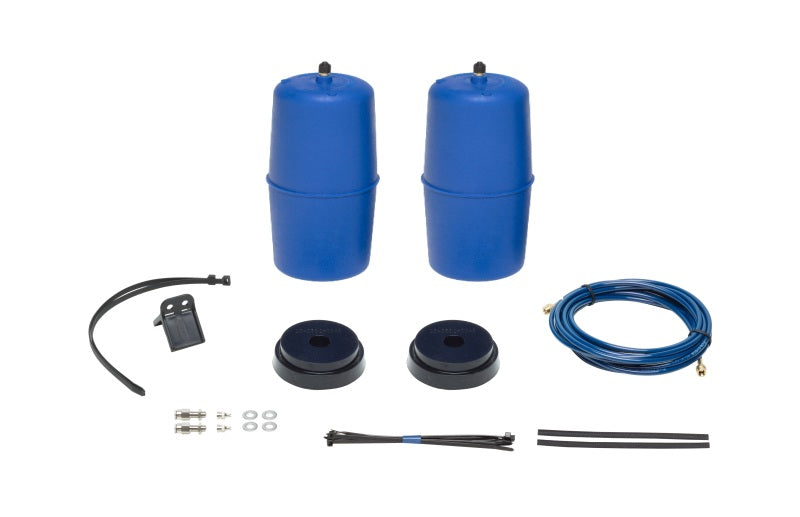

Firestone Coil-Rite Rear Air Helper Spring Kit - 2019-2025 Ram 1500 2WD/4WD (new body style, rear coil spring trucks)

SKU / Part #: 4130

$197.96Regular price$260.18Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

In stock Ships direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (1 vehicle)

Fits:

  • 2019–2025 Ram 1500 (2WD/4WD)

Fitment notes: Fits 2019-2025 Ram 1500 2WD/4WD (new body style, rear coil spring trucks).

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $17.95 (4.4 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

This Coil-Rite kit for the 2019-2025 Ram 1500 2WD/4WD (new body style, rear coil spring trucks) places polyurethane air bags inside the stock coils. Add air and the springs firm up, so the truck stays level with a loaded bed or a trailer on the hitch. Running empty, lower the pressure for a soft ride. You set pressure the same way you air up a tire. On a half-ton Ram 1500, a camper trailer or a bed of mulch is usually enough to make the rear sag.

The polyurethane Coil-Rite bags support 500 to 1,000 lbs per pair; the truck's GVWR still applies. Keeping it level improves steering and braking, keeps lights on the road and evens out tire wear.

Features

  • Sits within the factory coil springs
  • Levels the truck and resists bottoming out under load
  • Gas or diesel, it works the same
  • Individual valve for each side
  • Keeps headlight aim correct with a load
  • Improves loaded handling and braking
  • Rated 500 to 1,000 lbs per pair (GVWR applies)

Specs

  • Firestone part number: 4130 (W237604130)
  • Shipping weight: 4.4 lb
  • UPC: 767555164594

Fitment

  • 2019-2025 Ram 1500 2WD/4WD (new body style, rear coil spring trucks)

What's included

Two air helper springs with upper and lower brackets, mounting hardware, air line and inflation valves.

Install notes

A hand-tool install inside the coil springs, with no welding. Route lines clear of the exhaust and suspension travel and hold a 5 PSI minimum.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
2019-2025 Ram 1500 2WD/4WD (new body style, rear coil spring trucks)
Specifications
Fits inside the factory coil springs
Levels the truck under load and helps prevent bottoming out
Keeps headlights aimed down the road when loaded
Helps braking, steering and balance under load
Supports 500 to 1,000 lbs per pair (do not exceed GVWR)
Separate inflation valves to adjust each side
Works with gas and diesel trucks
Firestone part number: 4130 (W237604130)
Shipping weight: 4.4 lb
UPC: 767555164594
What's included
Kit includes upper and lower brackets, two air helper springs, mounting hardware, air line and inflation valves.
Installation
Installs inside the coil springs with hand tools, no welding. Route the air lines away from the exhaust and moving parts and keep at least 5 PSI in the springs at all times.
Specs & part info
BrandFirestone
Part number / SKU4130
UPC / MPN767555164594
CategoryAir Suspension
Shipping weight4.4 lb
