Firestone

Firestone Ride-Rite All-In-One Wireless Air Spring and Compressor Kit - 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD

SKU / Part #: 2890

$1,123.43Regular price$1,476.53Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

In stock Ships direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (3 vehicles)

Fits:

  • 2017–2024 Ford F-250 (4WD)
  • 2017–2024 Ford F-350 (4WD)
  • 2017–2024 Ford F-450 (4WD)

Fitment notes: Fits 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $27.95 (53.6 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

This kit gives the Ford F-250/F-350/F-450 Super Duty both halves of the job: Ride-Rite rear air helper springs and an onboard compressor run by a Bluetooth ECU. Control it from the Air Command phone app (iOS or Android) with live readings and 2 memory presets. Instead of hunting for an air hose before every tow, you adjust spring pressure from inside the Ford F-250/F-350/F-450 Super Duty. That matters on a Ford F-250/F-350/F-450 Super Duty that spends its weekends hooked to a stock trailer or a toy hauler.

Rated support tops out at 5,000 lbs of leveling, and you should never load past the truck's GVWR. Its standard duty compressor is good for 100 PSI. Firestone added a no-drill mounting plate for the compressor and ECU, which shortens install time. A 5 PSI minimum is held automatically while parked, and multiple phones can connect to the ECU.

Features

  • Springs, compressor, controls, wiring and air line in one kit
  • Spring brackets bolt on without drilling on most trucks and clear most in-bed hitches
  • No-drill plate for the compressor and ECU is included
  • Compressor specs: 100 PSI max, 9% duty, 13 A max, 0.32 CFM at 100 PSI (standard duty)
  • 5,000 lb load-leveling rating; GVWR is still the limit
  • Set and recall 2 pressure presets from the Air Command app
  • Step-by-step instructions come with the kit

Specs

  • Firestone part number: 2890 (W217602890)
  • Shipping weight: 53.6 lb
  • UPC: 767555174951

Fitment

  • 2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD

What's included

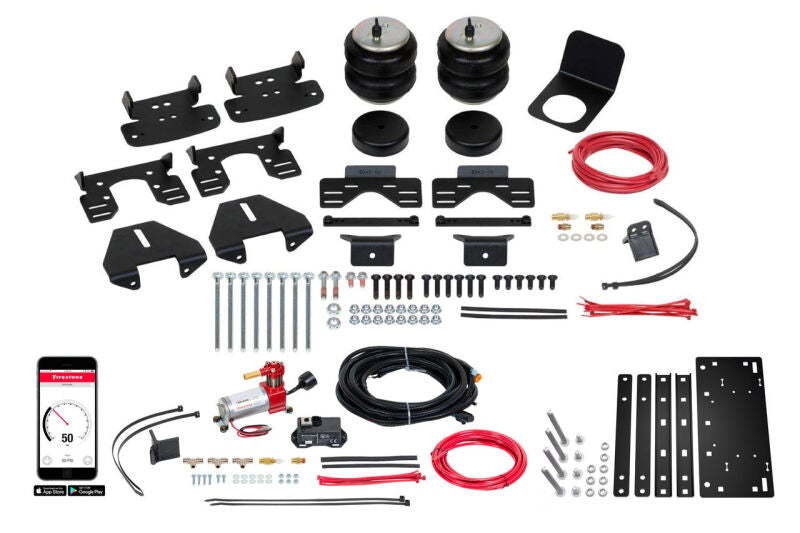

Spring side: Ride-Rite springs, brackets, hardware, air line. Air side: standard duty compressor, Bluetooth ECU, wiring harness and no-drill compressor plate.

Install notes

Springs go in first; the compressor mounts on the included plate, and all wiring and air lines should stay away from exhaust and moving components. Most installs wrap up in 2-4 hours. Power the compressor from a fused, ignition-switched source as the instructions show.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
2017-2024 Ford F-250/F-350/F-450 Super Duty 4WD
Specifications
Complete kit: Ride-Rite air springs, compressor, controls, wiring and air line
Adjust pressure from the cab with your smartphone (Bluetooth, 2 memory presets)
Standard duty compressor: 100 PSI max, 9% duty cycle, 13 amp max draw, 0.32 CFM at 100 PSI
Supports up to 5,000 lbs of load leveling (do not exceed GVWR)
No-drill spring mounting on most applications, works with most in-bed hitches
No-drill mounting plate included for the compressor and ECU
Step-by-step install manual included
Firestone part number: 2890 (W217602890)
Shipping weight: 53.6 lb
UPC: 767555174951
What's included
Ride-Rite air helper springs, brackets, hardware and air line, plus a standard duty compressor, Bluetooth ECU for app control, wiring harness and a no-drill compressor mounting plate.
Installation
Mount the springs first, then the compressor on the included plate, and run the wiring and air lines away from the exhaust and moving parts. Most installs take 2-4 hours. Wire the compressor to a fused, switched source per the instructions.
Specs & part info
BrandFirestone
Part number / SKU2890
UPC / MPN767555174951
CategoryAir Suspension
Shipping weight53.6 lb
