Firestone Ride-Rite All-In-One Wireless Air Spring and Compressor Kit - 2005-2023 Toyota Tacoma 4WD

SKU / Part #: 2876

$1,083.61Regular price$1,424.20Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

Only 2 left - order soonShips direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (1 vehicle)

Fits:

  • 2005–2023 Toyota Tacoma (4WD)

Fitment notes: Fits 2005-2023 Toyota Tacoma 4WD.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $27.95 (37.1 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

One box, one part number: this Firestone All-In-One kit pairs Ride-Rite rear air helper springs for the 2005-2023 Toyota Tacoma 4WD with an onboard compressor and a Bluetooth ECU you run from the Air Command app (iPhone or Android), including 2 memory presets and a live pressure readout. Load leveling becomes a cab-side adjustment: add or release air from the driver's seat instead of kneeling at a valve with a tire chuck. Mid-size trucks like the Toyota Tacoma run out of rear spring quickly with a trailer or a loaded rack.

Rated support tops out at 5,000 lbs of leveling, and you should never load past the truck's GVWR. Its standard duty compressor is good for 100 PSI. Firestone added a no-drill mounting plate for the compressor and ECU, which shortens install time. A 5 PSI minimum is held automatically while parked, and multiple phones can connect to the ECU.

Features

  • One part number covers the air springs and the complete compressor system
  • Rated leveling capacity: 5,000 lbs (do not exceed GVWR)
  • Most applications mount without drilling and coexist with in-bed hitches
  • Phone-based pressure control over Bluetooth with 2 presets
  • Compressor and ECU mount on a supplied no-drill plate
  • Step-by-step instructions come with the kit
  • Standard duty pump: 100 PSI, 9% duty cycle, 13 amps max, 0.32 CFM at 100 PSI

Specs

  • Firestone part number: 2876 (W217602876)
  • Shipping weight: 37.1 lb
  • UPC: 767555174814

Fitment

  • 2005-2023 Toyota Tacoma 4WD

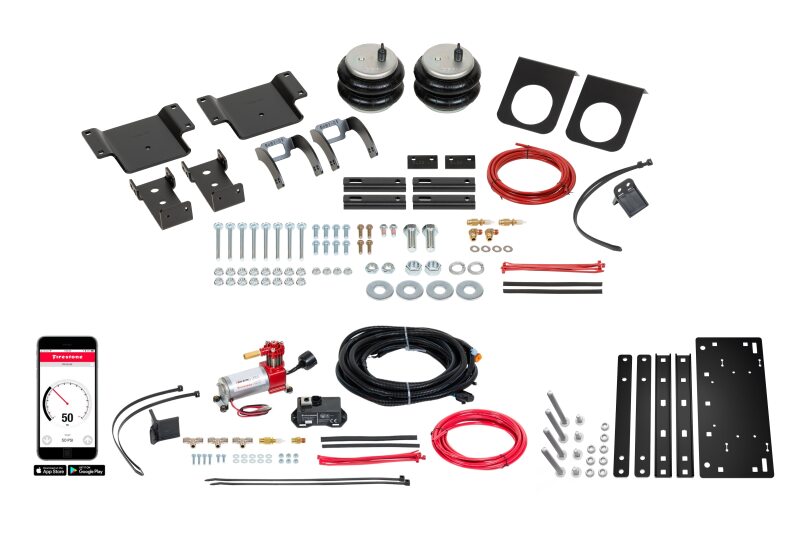

What's included

Air helper springs, brackets, hardware and line for the Toyota Tacoma, along with a standard duty compressor, the app-controlled Bluetooth ECU, harness and a no-drill mounting plate.

Install notes

Install the air springs first, then bolt the compressor to the supplied plate and route wiring and lines clear of the exhaust and suspension. Plan on 2-4 hours for most installs. Power the compressor from a fused, ignition-switched source as the instructions show.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
2005-2023 Toyota Tacoma 4WD
Specifications
Complete kit: Ride-Rite air springs, compressor, controls, wiring and air line
Adjust pressure from the cab with your smartphone (Bluetooth, 2 memory presets)
Standard duty compressor: 100 PSI max, 9% duty cycle, 13 amp max draw, 0.32 CFM at 100 PSI
Supports up to 5,000 lbs of load leveling (do not exceed GVWR)
No-drill spring mounting on most applications, works with most in-bed hitches
No-drill mounting plate included for the compressor and ECU
Step-by-step install manual included
Firestone part number: 2876 (W217602876)
Shipping weight: 37.1 lb
UPC: 767555174814
What's included
Ride-Rite air helper springs, brackets, hardware and air line, plus a standard duty compressor, Bluetooth ECU for app control, wiring harness and a no-drill compressor mounting plate.
Installation
Mount the springs first, then the compressor on the included plate, and run the wiring and air lines away from the exhaust and moving parts. Most installs take 2-4 hours. Wire the compressor to a fused, switched source per the instructions.
Specs & part info
BrandFirestone
Part number / SKU2876
UPC / MPN767555174814
CategoryAir Suspension
Shipping weight37.1 lb
