Firestone Ride-Rite All-In-One Wireless Air Spring and Compressor Kit - 1999-2004 Ford F-250/F-350 Super Duty 2WD/4WD

This Firestone All-In-One kit puts everything in one box for your 1999-2004 Ford F-250/F-350 Super Duty 2WD/4WD: a Ride-Rite rear air helper spring kit plus an onboard compressor system controlled by a Bluetooth ECU you run from the Firestone Air Command app on your phone (iPhone or Android), with 2 memory presets and live pressure readout. You get adjustable load leveling for towing and hauling, and you can add or let out air from the driver's seat instead of crawling under the truck with a tire chuck.

Ride-Rite springs support up to 5,000 lbs of load leveling (never exceed your truck's GVWR). The standard duty compressor is rated to 100 PSI, and Firestone now includes a no-drill mounting plate for the compressor and ECU, so the install goes faster. The system holds a minimum of 5 PSI when parked, and you can pair more than one phone to it.

Features

• Complete kit: Ride-Rite air springs, compressor, controls, wiring and air line
• Adjust pressure from the cab with your smartphone (Bluetooth, 2 memory presets)
• Standard duty compressor: 100 PSI max, 9% duty cycle, 13 amp max draw, 0.32 CFM at 100 PSI
• Supports up to 5,000 lbs of load leveling (do not exceed GVWR)
• No-drill spring mounting on most applications, works with most in-bed hitches
• No-drill mounting plate included for the compressor and ECU
• Step-by-step install manual included

Specs

• Firestone part number: 2864 (W217602864)
• Shipping weight: 54.9 lb
• UPC: 767555174593

Fitment

• 1999-2004 Ford F-250/F-350 Super Duty 2WD/4WD

What's included

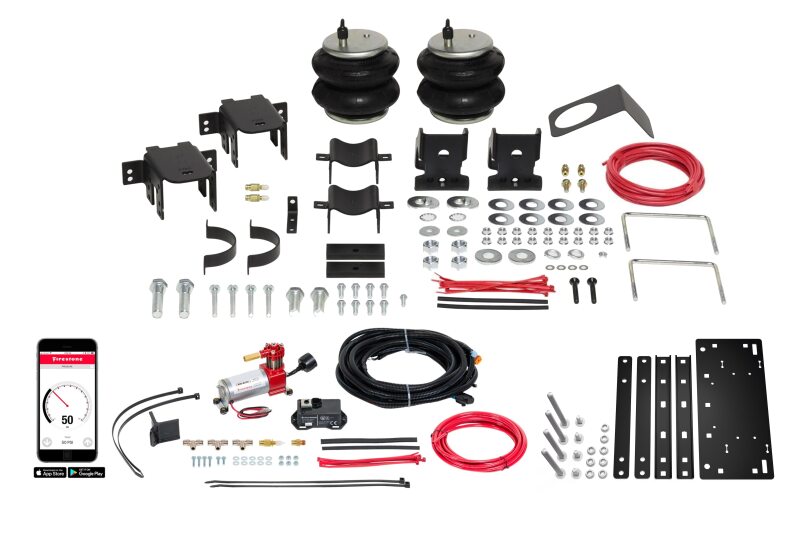

Ride-Rite air helper springs, brackets, hardware and air line, plus a standard duty compressor, Bluetooth ECU for app control, wiring harness and a no-drill compressor mounting plate.

Install notes

Mount the springs first, then the compressor on the included plate, and run the wiring and air lines away from the exhaust and moving parts. Most installs take 2-4 hours. Wire the compressor to a fused, switched source per the instructions.
