Firestone Ride-Rite All-In-One Analog Air Spring and Compressor Kit - 2024-2025 Toyota Tacoma 4WD

SKU / Part #: 2893

$922.97Regular price$1,213.07Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

Only 1 left - order soonShips direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (1 vehicle)

Fits:

  • 2024–2025 Toyota Tacoma (4WD)

Fitment notes: Fits 2024-2025 Toyota Tacoma 4WD.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $27.95 (38.9 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

This kit gives the Toyota Tacoma both halves of the job: Ride-Rite rear air helper springs and an onboard compressor you control with a backlit analog gauge and switch mounted inside the cab. Instead of hunting for an air hose before every tow, you adjust spring pressure from inside the Toyota Tacoma. Overlanders and weekend towers running a Toyota Tacoma get the most from adjustable support.

The Ride-Rite springs in this kit are rated for up to 5,000 lbs of load leveling; your GVWR still sets the limit. Its standard duty compressor is good for 100 PSI, and the included no-drill plate shortens install time. Pick a gauge location you can see from behind the wheel.

Features

  • One part number covers the air springs and the complete compressor system
  • Included plate mounts the compressor without drilling
  • 5,000 lb load-leveling rating; GVWR is still the limit
  • Fill and read pressure from the cab with a backlit gauge
  • Standard duty compressor rated 100 PSI max, 9% duty cycle, 13 amp max draw and 0.32 CFM at 100 PSI
  • Illustrated install instructions included
  • Most applications mount without drilling and coexist with in-bed hitches

Specs

  • Firestone part number: 2893 (W217602893)
  • Shipping weight: 38.9 lb
  • UPC: 767555176160

Fitment

  • 2024-2025 Toyota Tacoma 4WD

What's included

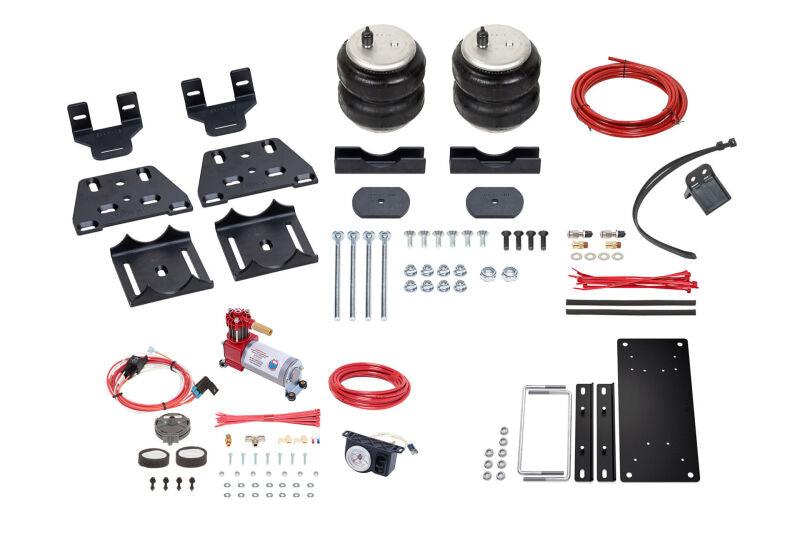

Spring side: Ride-Rite springs, brackets, hardware, air line. Air side: standard duty compressor, backlit gauge, switch, wiring harness and no-drill compressor plate.

Install notes

Start with the springs, move on to the compressor and its mounting plate, and keep every wire and air line away from heat and moving parts. Plan on 2-4 hours for most installs. Power the compressor from a fused, ignition-switched source as the instructions show.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
2024-2025 Toyota Tacoma 4WD
Specifications
Complete kit: Ride-Rite air springs, compressor, controls, wiring and air line
Adjust pressure from the cab with the analog gauge and switch
Standard duty compressor: 100 PSI max, 9% duty cycle, 13 amp max draw, 0.32 CFM at 100 PSI
Supports up to 5,000 lbs of load leveling (do not exceed GVWR)
No-drill spring mounting on most applications, works with most in-bed hitches
No-drill mounting plate included for the compressor
Step-by-step install manual included
Firestone part number: 2893 (W217602893)
Shipping weight: 38.9 lb
UPC: 767555176160
What's included
Ride-Rite air helper springs, brackets, hardware and air line, plus a standard duty compressor, backlit analog gauge and switch, wiring harness and a no-drill compressor mounting plate.
Installation
Mount the springs first, then the compressor on the included plate, and run the wiring and air lines away from the exhaust and moving parts. Most installs take 2-4 hours. Wire the compressor to a fused, switched source per the instructions.
Specs & part info
BrandFirestone
Part number / SKU2893
UPC / MPN767555176160
CategoryAir Suspension
Shipping weight38.9 lb
