Firestone Ride-Rite All-In-One Analog Air Spring and Compressor Kit - 2011-2016 Ford F-250/F-350/F-450 Super Duty pickup 2WD/4WD

This kit gives the Ford F-250/F-350/F-450 Super Duty pickup both halves of the job: Ride-Rite rear air helper springs and an onboard compressor you control with a backlit analog gauge and switch mounted inside the cab. Air goes in and out from the driver's seat, so leveling for a trailer or a full bed takes seconds, not a trip to the gas station air pump. For a Ford F-250/F-350/F-450 Super Duty pickup that pulls a gooseneck or carries a camper, that extra support shows up on every trip.

Rated support tops out at 5,000 lbs of leveling, and you should never load past the truck's GVWR. Expect 100 PSI from the standard duty compressor, which bolts to a supplied no-drill mounting plate. Pick a gauge location you can see from behind the wheel.

Features

• Springs, compressor, controls, wiring and air line in one kit
• Included plate mounts the compressor without drilling
• Compressor specs: 100 PSI max, 9% duty, 13 A max, 0.32 CFM at 100 PSI (standard duty)
• Illustrated install instructions included
• In-cab analog gauge and switch for pressure control
• Most applications mount without drilling and coexist with in-bed hitches
• Up to 5,000 lbs of load leveling, within the truck's GVWR

Specs

• Firestone part number: 2865 (W217602865)
• Shipping weight: 50.5 lb
• UPC: 767555174708

Fitment

• 2011-2016 Ford F-250/F-350/F-450 Super Duty pickup 2WD/4WD

What's included

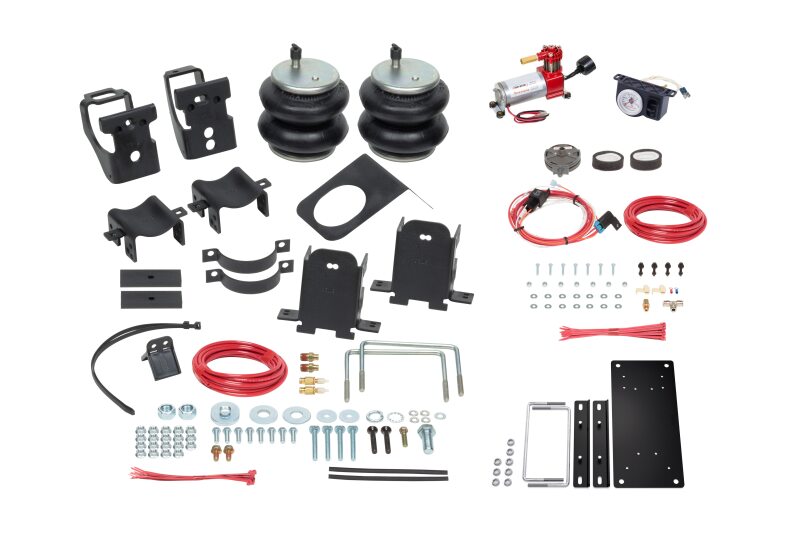

Air helper springs, brackets, hardware and line for the Ford F-250/F-350/F-450 Super Duty pickup, along with a standard duty compressor, gauge and switch, harness and a no-drill mounting plate.

Install notes

Install the air springs first, then bolt the compressor to the supplied plate and route wiring and lines clear of the exhaust and suspension. Plan on 2-4 hours for most installs. Power the compressor from a fused, ignition-switched source as the instructions show.
