Firestone Ride-Rite All-In-One Analog Air Spring and Compressor Kit - 1999-2004 Ford F-250/F-350 Super Duty 2WD/4WD

SKU / Part #: 2863

$1,021.65Regular price$1,342.77Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

In stock Ships direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (2 vehicles)

Fits:

  • 1999–2004 Ford F-250 (2WD/4WD)
  • 1999–2004 Ford F-350 (2WD/4WD)

Fitment notes: Fits 1999-2004 Ford F-250/F-350 Super Duty 2WD/4WD.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $27.95 (52.8 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

Made for the 1999-2004 Ford F-250/F-350 Super Duty 2WD/4WD, this All-In-One kit combines Ride-Rite rear helper springs with an onboard compressor and a simple in-cab control: a backlit analog gauge plus a fill switch. Instead of hunting for an air hose before every tow, you adjust spring pressure from inside the Ford F-250/F-350 Super Duty. That matters on a Ford F-250/F-350 Super Duty that spends its weekends hooked to a stock trailer or a toy hauler.

Rated support tops out at 5,000 lbs of leveling, and you should never load past the truck's GVWR. The standard duty compressor reaches 100 PSI, and a no-drill compressor mounting plate is now included to speed up the install. Put the gauge somewhere visible from the driver's seat.

Features

  • One part number covers the air springs and the complete compressor system
  • Compressor mounts on a supplied no-drill plate
  • Simple switch-and-gauge control from the driver's seat
  • Rated leveling capacity: 5,000 lbs (do not exceed GVWR)
  • Detailed install manual in the box
  • Standard duty compressor rated 100 PSI max, 9% duty cycle, 13 amp max draw and 0.32 CFM at 100 PSI
  • Compatible with most gooseneck and fifth-wheel in-bed hitches, no drilling on most applications

Specs

  • Firestone part number: 2863 (W217602863)
  • Shipping weight: 52.8 lb
  • UPC: 767555174586

Fitment

  • 1999-2004 Ford F-250/F-350 Super Duty 2WD/4WD

What's included

Spring side: Ride-Rite springs, brackets, hardware, air line. Air side: standard duty compressor, backlit gauge, switch, wiring harness and no-drill compressor plate.

Install notes

Start with the springs, move on to the compressor and its mounting plate, and keep every wire and air line away from heat and moving parts. Most installs wrap up in 2-4 hours. Use a fused, key-on power source for the compressor, following Firestone's wiring steps.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
1999-2004 Ford F-250/F-350 Super Duty 2WD/4WD
Specifications
Complete kit: Ride-Rite air springs, compressor, controls, wiring and air line
Adjust pressure from the cab with the analog gauge and switch
Standard duty compressor: 100 PSI max, 9% duty cycle, 13 amp max draw, 0.32 CFM at 100 PSI
Supports up to 5,000 lbs of load leveling (do not exceed GVWR)
No-drill spring mounting on most applications, works with most in-bed hitches
No-drill mounting plate included for the compressor
Step-by-step install manual included
Firestone part number: 2863 (W217602863)
Shipping weight: 52.8 lb
UPC: 767555174586

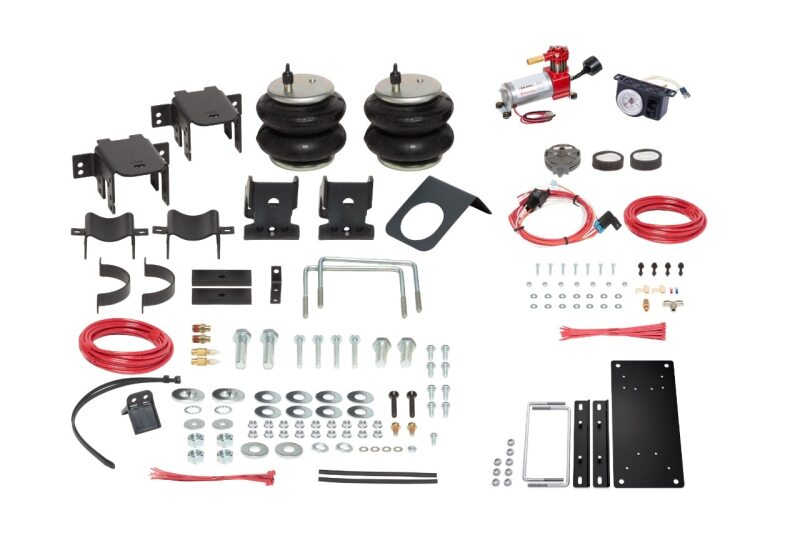

What's included
Ride-Rite air helper springs, brackets, hardware and air line, plus a standard duty compressor, backlit analog gauge and switch, wiring harness and a no-drill compressor mounting plate.
Installation
Mount the springs first, then the compressor on the included plate, and run the wiring and air lines away from the exhaust and moving parts. Most installs take 2-4 hours. Wire the compressor to a fused, switched source per the instructions.
