Firestone Air Command Single-Path Analog Heavy Duty Compressor Kit - For Ride-Rite Air Helper Springs

SKU / Part #: 2901

$655.66Regular price$861.74Save 24%

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

In stock Ships direct from a US warehouse in 1-3 business days
Universal fit, works with any truck

Fits: Universal fit, works with any truck.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ground shipping: $21.95 (14.8 lb) . Free on orders $999+ (lower 48).

Usually ships in 1–3 business days, then typically 2–6 business days by ground. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

Got Firestone air springs on the truck, or about to? This Air Command Single-Path Analog Heavy Duty Compressor Kit lets you adjust air pressure from the driver's seat using an in-cab backlit analog gauge and toggle switch. No more hunting for an air hose before the trailer goes on.

With single-path control, one fill circuit feeds both springs equally, the simplest way to run onboard air. The heavy duty compressor tops out at 150 PSI, runs a 30% duty cycle, pulls 13 amps max, reaches 0-30 PSI in roughly 14 seconds and flows 0.40 CFM at 100 PSI. Pair it with any Firestone Ride-Rite, RED Label, Sport-Rite or Coil-Rite kit; springs are not included.

Features

  • Adjust air spring pressure from inside the truck with an in-cab backlit analog gauge and toggle switch
  • One circuit keeps left and right at matching pressure
  • Compressor bracket needs no drilling and mounts any direction
  • Springs sold separately
  • Heavy duty pump rated 150 PSI, 30% duty cycle, 13 amps max, fills 0-30 PSI in about 14 s, 0.40 CFM at 100 PSI

Specs

  • Firestone part number: 2901 (WR17602901)
  • Shipping weight: 14.8 lb
  • UPC: 767555174494

Fitment

  • Universal: works with Firestone Ride-Rite, RED Label, Sport-Rite and Coil-Rite air helper spring kits on trucks, SUVs and RVs

What's included

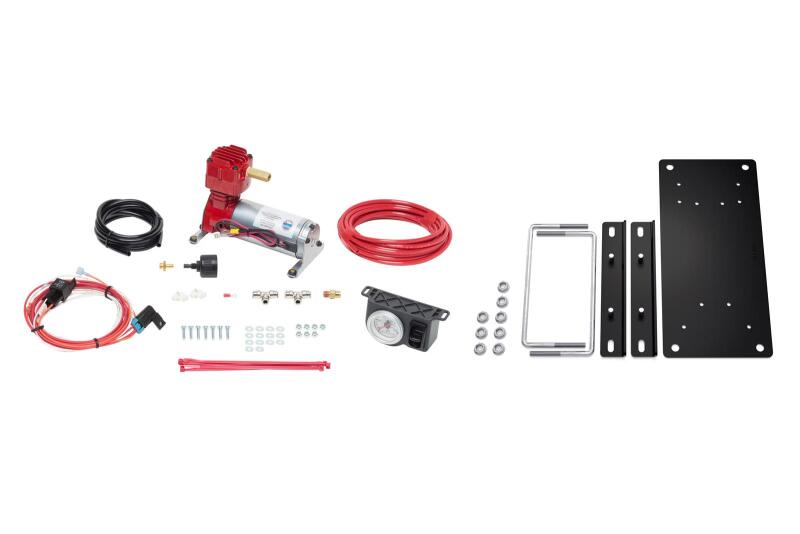

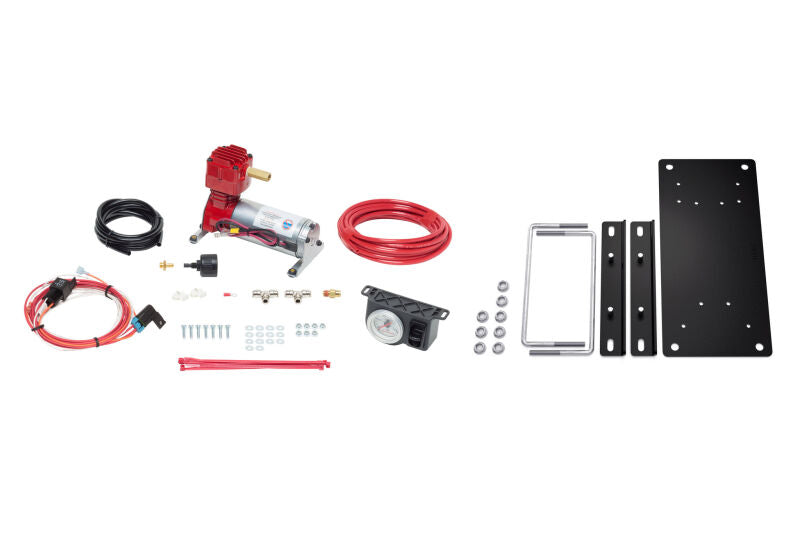

Heavy duty compressor, backlit electric analog gauge, single toggle switch, plug-and-play wiring harness, 30 ft of 1/4 in. air line, no-drill compressor mounting bracket and hardware.

Install notes

Pick a protected mounting spot for the compressor, power it from a fused, switched circuit following Firestone's directions, and route air lines clear of heat and moving parts. Typical install time is around 1-2 hours. The springs need at least 5 PSI at all times.

Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.

Fitment
Universal: works with Firestone Ride-Rite, RED Label, Sport-Rite and Coil-Rite air helper spring kits on trucks, SUVs and RVs
Specifications
Adjust air spring pressure from inside the truck with an in-cab backlit analog gauge and toggle switch
Single-path fill keeps both springs at the same pressure
Heavy duty compressor: 150 PSI max, 30% duty cycle, 13 amp max draw, 0-30 PSI in about 14 seconds, 0.40 CFM at 100 PSI
Air springs sold separately
No-drill compressor mounting bracket included; mounts in any orientation
Firestone part number: 2901 (WR17602901)
Shipping weight: 14.8 lb
UPC: 767555174494
What's included
Heavy duty compressor, backlit electric analog gauge, single toggle switch, plug-and-play wiring harness, 30 ft of 1/4 in. air line, no-drill compressor mounting bracket and hardware.
Installation
Mount the compressor in a protected spot, wire it to a fused, switched power source per the Firestone instructions, and run the air lines away from the exhaust and moving parts. Most installs take about 1-2 hours. Keep at least 5 PSI in the air springs at all times.
