Carli Pintop 2.5 System 3.25in Lift - Base Kit - 2014-2025 Ram 2500 4x4 Diesel

Pintop is Carli's most popular system. It's built around King 2.5in remote-reservoir shocks with Carli's own valving and 17-4 stainless shafts, plus Carli springs and the parts that keep the geometry right. It gives you a calm, confident highway ride and handles light- to medium-duty off-road work without drama.

This listing is Carli part numbers CS-DPT25-1419-D, CS-DPT25-1419-D-R2, built for 2014-2025 Ram 2500 4x4 Diesel at 3.25in of lift.

Why we like it

• King 2.5in remote-reservoir shocks with Carli valving
• 55% more piston area than a 2.0in shock (Carli)
• Carli springs and geometry correction parts included
• Built for 3/4-ton and 1-ton trucks
• Increases wheel travel to 9.3" front and 11" rear

Fitment

Fits 2014-2025 Ram 2500 4x4 Diesel, 3.25in lift. Pick your rear coils from the Rear Coils menu.

Heads up: Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419. Requires but does not include rear lift option and sway bar option. Not compatible with factory rear air assist trucks.

What's in the box

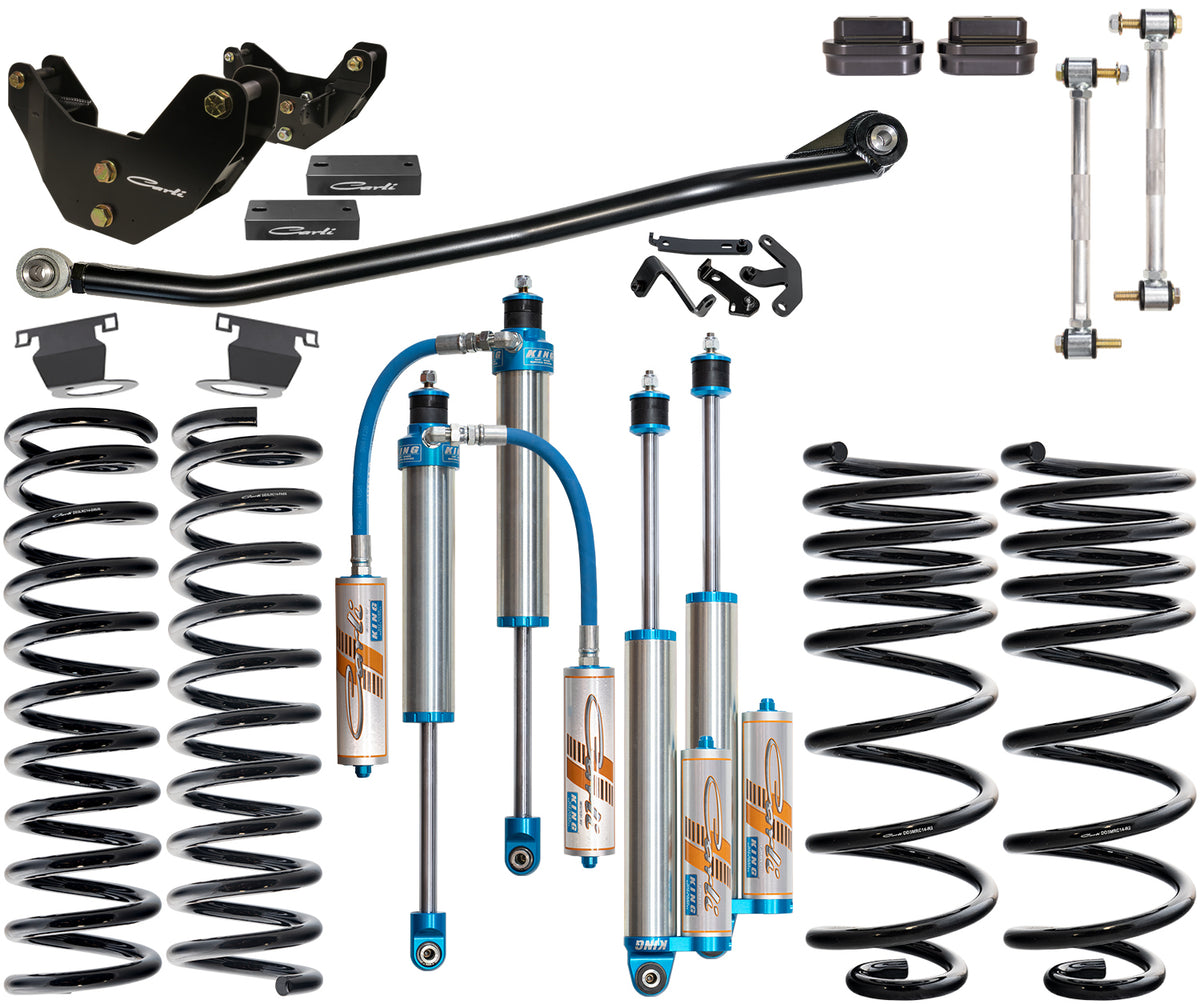

Carli base kit: Rear Sway Bar End Links; Front Bump Drops; Front Linear-Rate Coil Springs; Rear Multi-Rate Coil Springs; Adjustable Track Bar with Stabilizer Bracket; Radius Arm Drops; Transmission Crossmember, Extended Hardware Kit; Rear Bump Drops; Carli Tuned King 2.5in Remote Reservoir Pintop Shock Package with Reservoir Mounts, Stainless Shafts, Brake Line Tabs.

Specs at a glance

• Part number CS-DPT25-1419-D (R1 Multi-Rate Rear Coils)

Install notes

This is a full suspension system, not a bolt-on accessory. We recommend a shop install with a lift and an alignment right after. Torque everything to Carli's specs and re-check it after the first few hundred miles.

Questions on fitment? Call the shop at (806) 503-2161.

Ships direct from a US warehouse in 1-3 business days. Most parts drop-ship directly from the manufacturer or distributor warehouse; tracking is emailed as soon as it ships.

Free shipping on qualifying orders. Free local pickup in Ropesville, TX.

Questions? Call (806) 503-2161 (Mon-Fri 8am-5pm CT) or email blackdiamondultd@gmail.com.
