Carli

Carli Pathfinder 2.5 System 3.25in Lift - Base Kit - R2 Coils - 2014-2025 Ram 2500 4x4 Diesel

SKU / Part #: CS-D3-PF-1419-D-R2

$5,601.00

Rated 5.0 on Google (110+ reviews) – Ropesville, TX

Only 1 left - order soonShips direct from a US warehouse in 1-3 business days
Select your truck to check fit
See all fitments (1 vehicle)

Fits:

  • 2014–2025 Ram 2500 (Diesel, 4WD)

Fitment notes: Fits 2014-2025 Ram 2500 4x4 Diesel, 3.25in lift.

Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.

Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.

Ships by truck freight: freight is quoted live at checkout by ZIP code.

Usually ships in 1–3 business days; freight transit is typically 5–10 business days after that. Estimate only.

Can’t ship to CA, FL, IL, IN, MD, MA, SD, TN or Hawaii. No U.S. territories or APO/FPO. Free pickup in Ropesville, TX is always available.

Estimate shipping to your ZIP

Description

This is the Pathfinder 2.5 System 3.25in Lift - Base Kit - R2 Coils - 2014-2025 Ram 2500 4x4 Diesel. Pathfinder is Carli's all-rounder for the Ram 2500. It lifts the truck 3.25 inches and runs Carli-SPEC 2.5 remote-reservoir shocks for a comfortable ride, better off-road control and a steadier truck with a trailer on. This version uses R2 rear coils for trucks that carry weight.

Why it's worth it

  • Carli-SPEC 2.5 remote-reservoir shocks in a durable gray hardcoat
  • R2 rear coils sit 1 inch taller and stay closer to factory rate for campers and tool boxes
  • Adjustable track bar with stabilizer bracket
  • Radius arm drops and front and rear bump drops

Fitment

2014-2025 Ram 2500 4x4 diesel at 3.25 inches of lift. Plan on adding a front sway bar and a rear track bar from Carli's option list; both are sold separately. Trucks with factory rear air ride can't use this system.

What's in the box

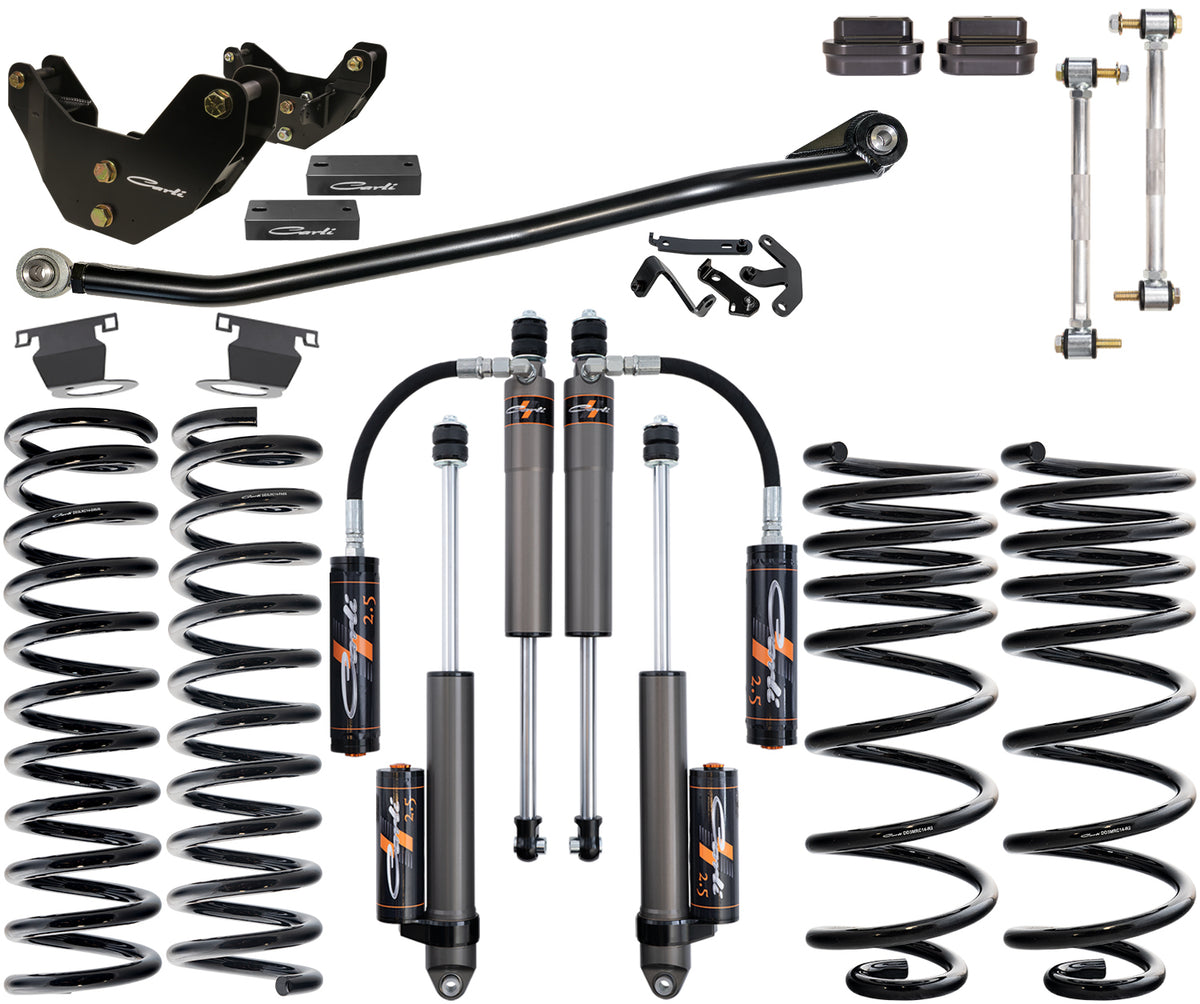

Front linear-rate coils, R2 rear multi-rate coils, Carli-SPEC 2.5 shocks with reservoir mounts and brake line tabs, adjustable track bar, radius arm drops, front and rear bump drops, rear sway bar end links and extended transmission crossmember hardware. Part CS-D3-PF-1419-D-R2, about 210 lb shipping weight.

It is a complete system, so a shop install and prompt alignment are recommended. Follow Carli's torque specs, then re-check everything after the first few hundred miles.

Need help with fit? Call the shop at (806) 503-2161.

Fitment
2014-2025 Ram 2500 4x4 Diesel
Specifications
Brand: Carli
Part number CS-D3-PF-1419-D-R2 | UPC 883584173946 | Shipping weight 210.0 lb
Fitment: 2014-2025 Ram 2500 4x4 Diesel
Lift: 3.25in
Carli spec: Dodge 3in Pathfinder 2.5 System, Diesel, 2014-2025 2500 Base Kit , R2 Coils
Requirement: REQUIRED: this system requires but DOES NOT INCLUDE Carli front sway bar option and rear track bar option.
Requirement: Not compatible with trucks equipped with factory rear air ride.
What's included
Carli base kit includes (per Carli):
CS-DEL-R-14 Rear Sway Bar End Links
CS-DFBD-1 Front Bump Drops
CS-DLRC-14-D Front Linear-Rate Coil Springs
CS-DMRC-14-R2 Rear Multi-Rate Coil Springs, R2
CS-DATB-1419 Adjustable Track Bar with Stabilizer Bracket
CS-DRAD-14 Radius Arm Drops
CS-DCM-20-HK Transmission Crossmember, Extended Hardware Kit
CS-DRBD-AL Rear Bump Drops
CS-D3SPKG-CS25RR-A Carli-SPEC 2.5in Remote Reservoir Shock Package with Reservoir Mounts & Brake Line Tabs
Installation
This is a full suspension system, not a bolt-on accessory. We recommend a shop install with a lift and an alignment right after. Torque everything to Carli's specs and re-check it after the first few hundred miles.
Specs & part info
BrandCarli
Part number / SKUCS-D3-PF-1419-D-R2
UPC / MPN883584173946
CategoryLift Kits
Shipping weight210.0 lb
