Firestone Ride-Rite All-In-One Analog Air Spring and Compressor Kit - 2014-2025 Ram 2500 2WD/4WD
SKU / Part #: 2883
Fits:
- 2014–2025 Ram 2500 (2WD/4WD)
Fitment notes: Fits 2014-2025 Ram 2500 2WD/4WD.
Not sure? Call (806) 503-2161 with your year, make, model and engine and we'll confirm before it ships.
Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.
- Flat-rate shipping from $17.95 · Free on orders $999+
- 30-day returns (20% restocking fee)
- Free local pickup in Ropesville, TX
- Secure checkout with Shop Pay & PayPal
Description
Made for the 2014-2025 Ram 2500 2WD/4WD, this All-In-One kit combines Ride-Rite rear helper springs with an onboard compressor and a simple in-cab control: a backlit analog gauge plus a fill switch. Load leveling becomes a cab-side adjustment: add or release air from the driver's seat instead of kneeling at a valve with a tire chuck. Diesel Ram 2500 owners who tow heavy see it first in the mirrors: a level rig and a calmer trailer.
Load-leveling capacity is up to 5,000 lbs, but the factory GVWR is still the ceiling. Expect 100 PSI from the standard duty compressor, which bolts to a supplied no-drill mounting plate. Pick a gauge location you can see from behind the wheel.
Features
- Springs, compressor, controls, wiring and air line in one kit
- Compatible with most gooseneck and fifth-wheel in-bed hitches, no drilling on most applications
- Up to 5,000 lbs of load leveling, within the truck's GVWR
- Standard duty compressor rated 100 PSI max, 9% duty cycle, 13 amp max draw and 0.32 CFM at 100 PSI
- Simple switch-and-gauge control from the driver's seat
- Included plate mounts the compressor without drilling
- Step-by-step instructions come with the kit
Specs
- Firestone part number: 2883 (W217602883)
- Shipping weight: 42.8 lb
- UPC: 767555174883
Fitment
- 2014-2025 Ram 2500 2WD/4WD
What's included

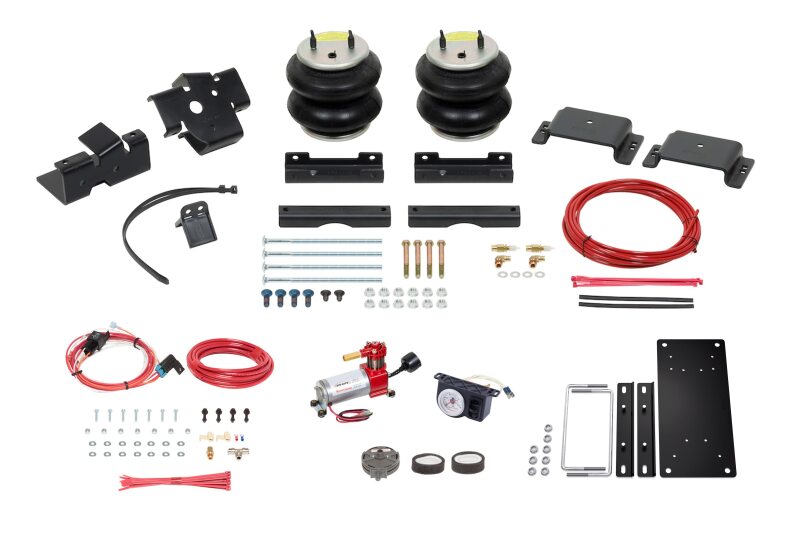

Spring side: Ride-Rite springs, brackets, hardware, air line. Air side: standard duty compressor, backlit gauge, switch, wiring harness and no-drill compressor plate.
Install notes
Springs go in first; the compressor mounts on the included plate, and all wiring and air lines should stay away from exhaust and moving components. Plan on 2-4 hours for most installs. Use a fused, key-on power source for the compressor, following Firestone's wiring steps.
Not sure it fits your truck? Call the shop at (806) 503-2161 and we will confirm before you order.
Fitment
Specifications
Adjust pressure from the cab with the analog gauge and switch
Standard duty compressor: 100 PSI max, 9% duty cycle, 13 amp max draw, 0.32 CFM at 100 PSI
Supports up to 5,000 lbs of load leveling (do not exceed GVWR)
No-drill spring mounting on most applications, works with most in-bed hitches
No-drill mounting plate included for the compressor
Step-by-step install manual included
Firestone part number: 2883 (W217602883)
Shipping weight: 42.8 lb
UPC: 767555174883
What's included
Installation
Specs & part info
| Brand | Firestone |
|---|---|
| Part number / SKU | 2883 |
| UPC / MPN | 767555174883 |
| Category | Air Suspension |
| Shipping weight | 42.8 lb |
Shipping & pickup
Ships direct from a US warehouse in 1-3 business days. Most parts drop-ship directly from the manufacturer or distributor warehouse; tracking is emailed as soon as it ships.
Flat-rate shipping from $17.95 · Free on orders $999+. Free local pickup in Ropesville, TX. 30-day returns (20% restocking fee).
Questions? Call (806) 503-2161 (Mon-Fri 8am-5pm CT) or email blackdiamondultd@gmail.com.
