FASS No-Drop Series Diesel Fuel System
SKU / Part #: NDTSD10180F140G
Customize Your Item
Please choose Fitment
Please choose Flow Rate
Most in-stock items leave the warehouse within 1–3 business days. Tracking is emailed when your order ships.
- Free shipping on qualifying orders
- Free local pickup in Ropesville, TX
- Secure checkout with Shop Pay & PayPal
Description

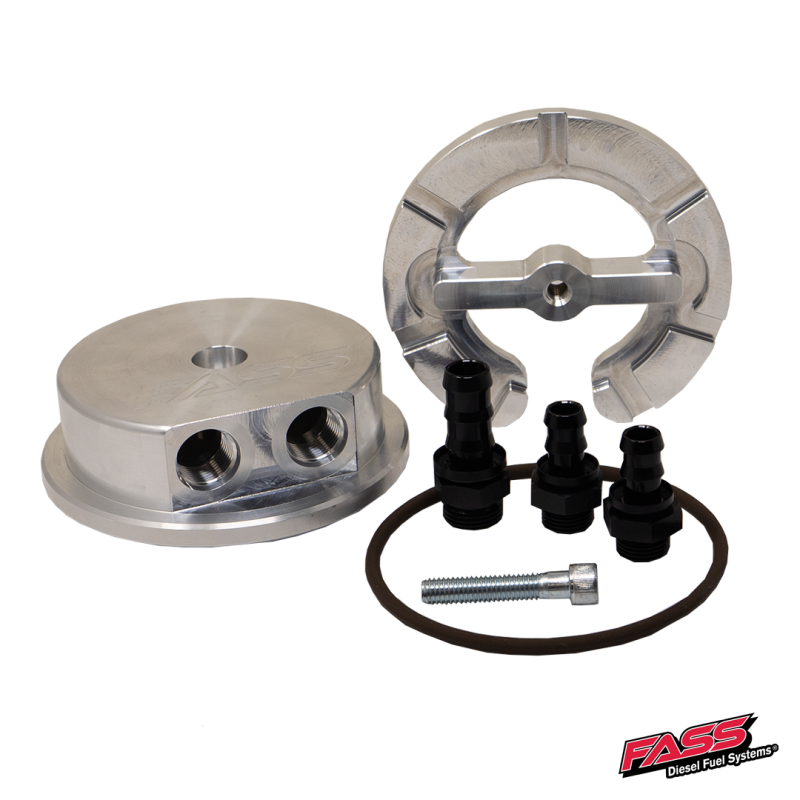

The No-Drop Series is the Titanium Signature Series system shipped with the FASS fuel sump in the box. The sump installs through the bottom of the tank and feeds the system directly, so you don't drop the tank or pull the bed to get at the factory sending unit. That's what saves labor on the install.

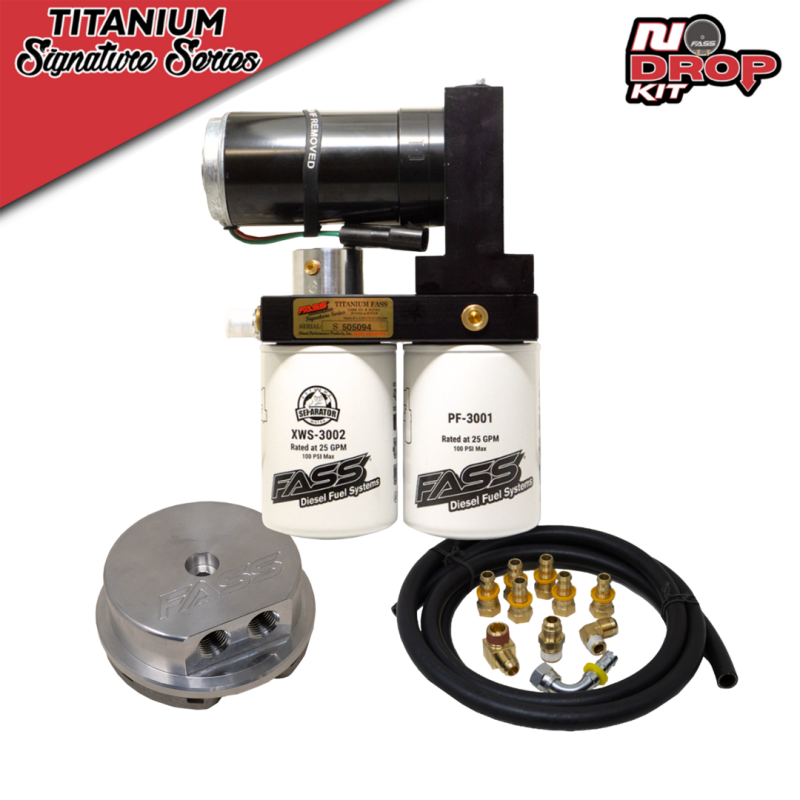

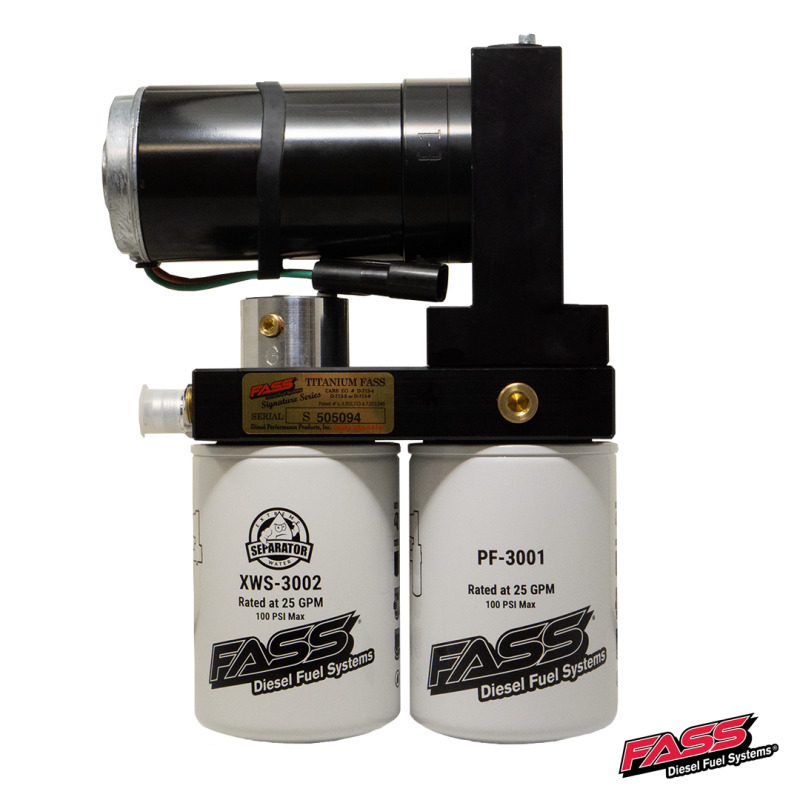

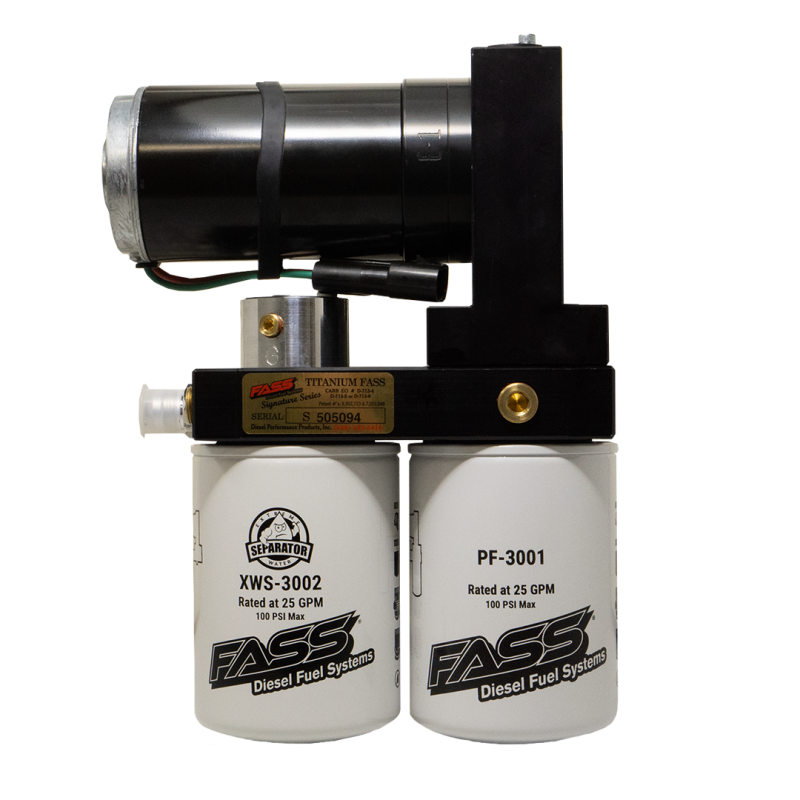

Everything else is the Signature Series: the lift pump, water separator, filtration and air/vapor removal in one unit. Size it the same way, using FASS's ratings: 100/140 GPH for stock to 600 HP, 165 GPH for 600 to 1,000 HP, 220-250 GPH for 1,000 to 1,200 HP, and 290 GPH for 1,200 to 1,500 HP. Each option lists the exact FASS part number.
Why we like it
- FASS fuel sump included, with no tank drop needed for the install (per FASS)
- The sump draws fuel from the bottom of the tank
- Same 2 micron absolute filtration and air/vapor separation as the Signature Series (per FASS)
- Mass Flow Return keeps cycling unused fuel back through the filters (per FASS)
Fitment: Ram/Dodge Cummins 1994-2023, Chevy/GMC Duramax 2001-2019, Ford Power Stroke 1999-2024 (in-stock options). Choose your exact application from the options; each option is a specific FASS part number.
Questions on fitment? Call the shop at (806) 503-2161.
Fitment
1998.5-2004.5 Dodge Ram 2500/3500 5.9L Cummins / 100 GPH - FASS part #NDTSD08100G
1998.5-2004.5 Dodge Ram 2500/3500 5.9L Cummins / 165 GPH - FASS part #NDTSD08165G
2005-2018 & 2021-2023 Dodge/Ram 2500/3500 5.9L/6.7L Cummins / 100 GPH - FASS part #NDTSD07100G
2005-2018 & 2021-2023 Dodge/Ram 2500/3500 5.9L/6.7L Cummins / 165 GPH - FASS part #NDTSD07165G
2005-2018 & 2021-2023 Dodge/Ram 2500/3500 5.9L/6.7L Cummins / 250 GPH - FASS part #NDTSD07250G
2019-2020 Ram 2500/3500 6.7L Cummins / 165 GPH - FASS part #NDTSD12165G
1999-2007 Ford F-250/F-350 7.3L/6.0L Power Stroke / 140 GPH - FASS part #NDTSF14180F140G
1999-2007 Ford F-250/F-350 7.3L/6.0L Power Stroke / 220 GPH - FASS part #NDTSF14250F220G
2000-2005 Ford Excursion 7.3L/6.0L Power Stroke / 140 GPH - FASS part #NDTSF15180F140G
2008-2010 Ford F-250/F-350 6.4L Power Stroke / 100 GPH - FASS part #NDTSF16100G
2011-2016 Ford F-250/F-350 6.7L Power Stroke / 140 GPH - FASS part #NDTSF17180F140G
2011-2016 Ford F-250/F-350 6.7L Power Stroke / 220 GPH - FASS part #NDTSF17250F220G
2017-2022 Ford F-250/F-350 6.7L Power Stroke / 140 GPH - FASS part #NDTSF18180F140G
2017-2022 Ford F-250/F-350 6.7L Power Stroke / 220 GPH - FASS part #NDTSF18250F220G
2023-2024 Ford F-250/F-350 6.7L Power Stroke / 220 GPH - FASS part #NDTSF20250F220G
2023-2024 Ford F-250/F-350 6.7L Power Stroke / 240 GPH - FASS part #NDTSF20290F240G
2001-2010 Chevy/GMC 2500/3500 6.6L Duramax / 100 GPH - FASS part #NDTSC10100G
2001-2010 Chevy/GMC 2500/3500 6.6L Duramax / 165 GPH - FASS part #NDTSC10165G
2011-2014 Chevy/GMC 2500/3500 6.6L Duramax LML / 100 GPH - FASS part #NDTSC11100G
2015-2016 Chevy/GMC 2500/3500 6.6L Duramax LML / 100 GPH - FASS part #NDTSC12100G
2015-2016 Chevy/GMC 2500/3500 6.6L Duramax LML / 165 GPH - FASS part #NDTSC12165G
2017-2019 Chevy/GMC 2500/3500 6.6L Duramax L5P / 140 GPH - FASS part #NDTSC13180F140G
2017-2019 Chevy/GMC 2500/3500 6.6L Duramax L5P / 220 GPH - FASS part #NDTSC13250F220G
Specifications
NDTSD08100G: FASS 98.5-04.5 Dodge Cummins 2500/3500 100gph No Drop Titanium Fuel System | 29.9 lb
NDTSD08165G: FASS 98.5-04.5 Dodge Cummins 2500/3500 165gph No Drop Titanium Fuel System | 30.0 lb
NDTSD07100G: FASS 05-18 / 21-23 Dodge Cummins 2500/3500 100gph No Drop Titanium Fuel System | 30.3 lb
NDTSD07165G: FASS 05-18 / 21-23 Dodge Cummins 2500/3500 165gph No Drop Titanium Fuel System | 30.4 lb
NDTSD07250G: FASS 05-18 / 21-23 Dodge Cummins 2500/3500 250gph No Drop Titanium Fuel System | 32.8 lb
NDTSD12165G: FASS 19-20 Dodge Cummins 2500/3500 165gph No Drop Titanium Fuel System | 30.1 lb
NDTSF14180F140G: FASS 99-07 Ford Powerstroke F250/F350 140gph No Drop Titanium Fuel System | 32.9 lb
NDTSF14250F220G: FASS 99-07 Ford Powerstroke F250/F350 250gph No Drop Titanium Fuel System | 33.2 lb
NDTSF15180F140G: FASS 00-05 Ford Powerstroke F250/F350 (Excursion 6.0 and 7.3L) 140gph No Drop Titanium Fuel System | 26.7 lb
NDTSF16100G: FASS 08-10 Ford Powerstroke F250/F350 100gph No Drop Titanium Fuel System | 31.0 lb
NDTSF17180F140G: FASS 11-16 Ford Powerstroke F250/F350 140gph No Drop Titanium Fuel System | 32.3 lb
NDTSF17250F220G: FASS 11-16 Ford Powerstroke F250/F350 250gph No Drop Titanium Fuel System | 32.3 lb
NDTSF18180F140G: FASS 17-22 Ford Powerstroke F250/F350 140gph No Drop Titanium Fuel System | 36.4 lb
NDTSF18250F220G: FASS 17-22 Ford Powerstroke F250/F350 250gph No Drop Titanium Fuel System | 36.1 lb
NDTSF20250F220G: FASS 23-24 Ford Powerstroke F250/F350 220gph No Drop Titanium Fuel System | 34.8 lb
NDTSF20290F240G: FASS 23-24 Ford Powerstroke F250/F350 240gph No Drop Titanium Fuel System | 35.1 lb
NDTSC10100G: FASS 01-10 Chevy Duramax 100gph No Drop Titanium Fuel System | 29.2 lb
NDTSC10165G: FASS 01-10 Chevy Duramax 165gph No Drop Titanium Fuel System | 29.2 lb
NDTSC11100G: FASS 11-14 Chevy Duramax 100gph No Drop Titanium Fuel System | 28.7 lb
NDTSC12100G: FASS 15-16 Chevy Duramax 100gph No Drop Titanium Fuel System | 28.8 lb
NDTSC12165G: FASS 15-16 Chevy Duramax 165gph No Drop Titanium Fuel System | 28.5 lb
NDTSC13180F140G: FASS 17-19 Chevy Duramax 140gph No Drop Titanium Fuel System | 31.7 lb
NDTSC13250F220G: FASS 17-19 Chevy Duramax 250gph No Drop Titanium Fuel System | 31.9 lb
Specs & part info
| Brand | FASS Fuel Systems |
|---|---|
| Part number / SKU | NDTSD10180F140G |
| Category | Fuel Systems |
| Shipping weight | 32.8 lb |
