Small Block Chevy - Use with MSD 6/7/8 Series Ignition - Black

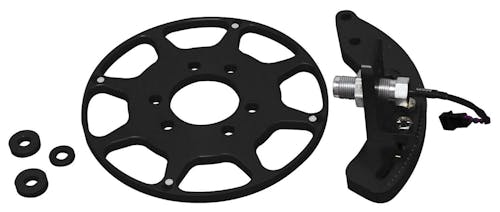

The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustments. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25" motor plate. These systems will trigger MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories.
The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustments. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25" motor plate. These systems will trigger MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories.
- 6.25" Diameter
- Absolutely the most accurate way to trigger the ignition.
- The non-magnetic pickup cannot be false triggered.
- Powerful magnets are embedded in a billet aluminum trigger wheel.
- Kits feature special brackets and mounting hardware for a variety of engines.
Information:
Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled VehicleApplication Summary:
| Year | Make/Model |
|---|---|
| 1955-1975 | Chevrolet Bel Air |
| 1981 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1987-1994 | Chevrolet Blazer |
| 1959-1961 | Chevrolet Brookwood |
| 1969-1972 | Chevrolet Brookwood |
| 1975-1986 | Chevrolet C10 |
| 1960-1974 | Chevrolet C10 Pickup |
| 1967-1986 | Chevrolet C10 Suburban |
| 1982-1985 | Chevrolet C15 |
| 1988-1999 | Chevrolet C1500 |
| 1992-1999 | Chevrolet C1500 Suburban |
| 1975-1987 | Chevrolet C20 |
| 1960-1974 | Chevrolet C20 Pickup |
| 1967-1986 | Chevrolet C20 Suburban |
| 1988-2000 | Chevrolet C2500 |
| 1992-1999 | Chevrolet C2500 Suburban |
| 1975-1986 | Chevrolet C30 |
| 1966 | Chevrolet C30 Panel |
| 1960-1974 | Chevrolet C30 Pickup |
| 1983-2000 | Chevrolet C35 |
| 1988-2000 | Chevrolet C3500 |
| 1960-1962 | Chevrolet C40 |
| 1967-1997 | Chevrolet Camaro |
| 1966-1996 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1963-1968 | Chevrolet Chevy II |
| 1955-1982 | Chevrolet Corvette |
| 1984-1996 | Chevrolet Corvette |
| 1957 | Chevrolet Del Ray |
| 1959-1960 | Chevrolet El Camino |
| 1964-1987 | Chevrolet El Camino |
| 1969-1970 | Chevrolet Estate |
| 1996-2002 | Chevrolet Express 1500 |
| 1996-2002 | Chevrolet Express 2500 |
| 1996-2002 | Chevrolet Express 3500 |
| 1975-1995 | Chevrolet G10 |
| 1968-1974 | Chevrolet G10 Van |
| 1975-1995 | Chevrolet G20 |
| 1967-1974 | Chevrolet G20 Van |
| 1975-1996 | Chevrolet G30 |
| 1970-1974 | Chevrolet G30 Van |
| 1959-1985 | Chevrolet Impala |
| 1994-1996 | Chevrolet Impala |
| 1975-1986 | Chevrolet K10 |
| 1960-1974 | Chevrolet K10 Pickup |
| 1967-1986 | Chevrolet K10 Suburban |
| 1988-1999 | Chevrolet K1500 |
| 1992-1999 | Chevrolet K1500 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1967 | Chevrolet K20 Panel |
| 1960-1974 | Chevrolet K20 Pickup |
| 1967-1986 | Chevrolet K20 Suburban |
| 1988-2000 | Chevrolet K2500 |
| 1992-1999 | Chevrolet K2500 Suburban |
| 1977-1986 | Chevrolet K30 |
| 1968-1974 | Chevrolet K30 Pickup |
| 1988-2000 | Chevrolet K3500 |
| 1975-1986 | Chevrolet K5 Blazer |
| 1959-1961 | Chevrolet Kingswood |
| 1969-1972 | Chevrolet Kingswood |
| 1973-1976 | Chevrolet Laguna |
| 1964-1967 | Chevrolet Malibu |
| 1973-1983 | Chevrolet Malibu |
| 1970-1988 | Chevrolet Monte Carlo |
| 1976-1979 | Chevrolet Monza |
| 1959-1961 | Chevrolet Nomad |
| Attributes | |
| ASIN | B01GVIMBE2 |
| Brand | MSD |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Ignition |
| Color | Black |
| Country of Origin (Primary) | US |
| Diameter | 6.25", 6.25 in. |
| Diameter (in.) | 6.250 in. |
| Emission Code | 4, Off Road |
| GTIN | 00085132860036 |
| Harmonized Tariff Code (Schedule B) | 8409914000 |
| Hazardous Material Code | N |
| Life Cycle Status Code | Available to Order |
| Make | GM, Chevrolet |
| NAFTA Preference Criterion Code | B |
| Product Type | Crank Trigger Kit |
| SDR Required Flag | N |
| Sale Category | Ignition |
| Sensor Dimensions | 3/4" x 2.25" |
| Sensor Type | Magnetic |
| Series | Crank Triggers and Accessories |
| Sub Category | Sensors |
| Subcategory | Crank Trigger Kits and Accessories |
| Trigger Type | 4X |
| Warning | California Proposition 65 |
| Warranty | Limited 1 Year Warranty |
| Warranty Time | 12 |
| Wheel Width | 3/8" |
| part type | Ignition Crank Trigger Kit |
MSD Performance 86003 Black Crank Trigger Kits 6.25
Product Information
- Brand: MSD Performance
- Product Number: 86003
$461.95
