Small Block Chevy - Use with MSD 6/7/8 Series Ignition - Red

---

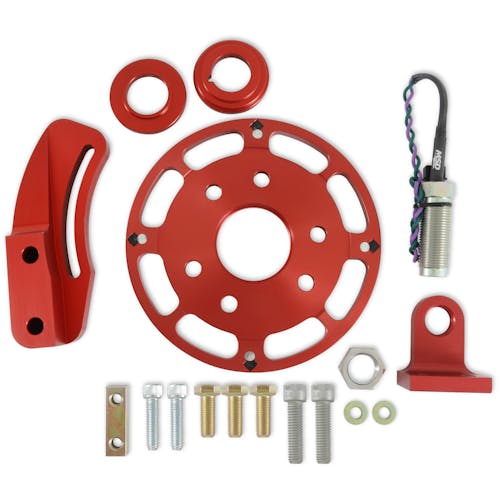

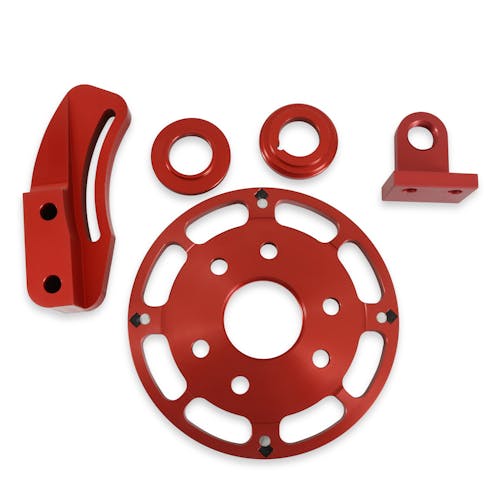

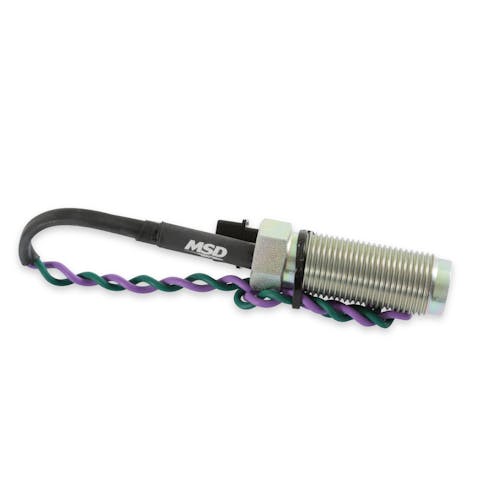

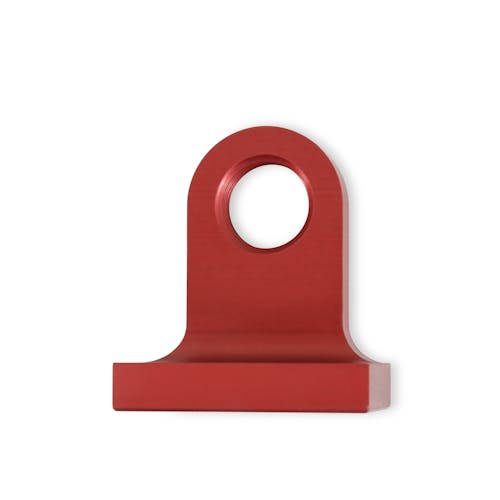

The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustments. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25" motor plate. These systems will trigger MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories.

• 6.25" Diameter
• Absolutely the most accurate way to trigger the ignition.
• The non-magnetic pickup cannot be false triggered.

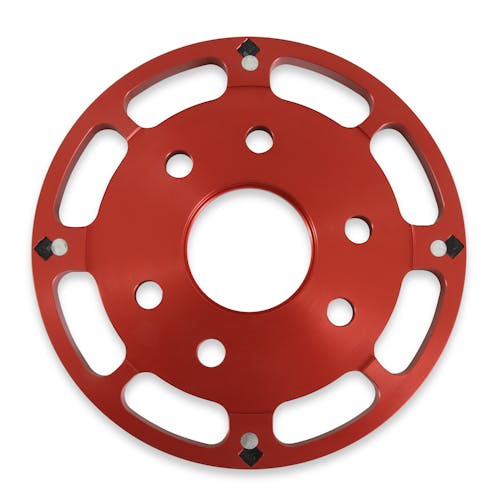

• Powerful magnets are embedded in a billet aluminum trigger wheel.
• Kits feature special brackets and mounting hardware for a variety of engines.

---

Information:

Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

---

Application Summary:

Year	Make/Model
1977-1980	Buick Century
1978	Buick LeSabre
1977-1980	Buick Regal
1977-1979	Buick Skylark
1975	Chevrolet Bel Air
1987-1994	Chevrolet Blazer
1975-1986	Chevrolet C10
1975-1986	Chevrolet C10 Suburban
1988-1995	Chevrolet C1500
1992-1995	Chevrolet C1500 Suburban
1975-1986	Chevrolet C20
1975-1986	Chevrolet C20 Suburban
1988-1995	Chevrolet C2500
1992-1995	Chevrolet C2500 Suburban
1975-1986	Chevrolet C30
1988-1995	Chevrolet C3500
1975-1992	Chevrolet Camaro
1975-1996	Chevrolet Caprice
1975-1982	Chevrolet Corvette
1984-1991	Chevrolet Corvette
1975-1987	Chevrolet El Camino
1975-1995	Chevrolet G10
1975-1995	Chevrolet G20
1975-1996	Chevrolet G30
1975-1985	Chevrolet Impala
1975-1986	Chevrolet K10
1975-1986	Chevrolet K10 Suburban
1988-1995	Chevrolet K1500
1992-1995	Chevrolet K1500 Suburban
1975-1986	Chevrolet K20
1975-1986	Chevrolet K20 Suburban
1988-1995	Chevrolet K2500
1992-1995	Chevrolet K2500 Suburban
1977-1986	Chevrolet K30
1988-1995	Chevrolet K3500
1975-1986	Chevrolet K5 Blazer
1975-1976	Chevrolet Laguna
1975-1983	Chevrolet Malibu
1975-1988	Chevrolet Monte Carlo
1975-1979	Chevrolet Monza
1975-1979	Chevrolet Nova
1987	Chevrolet R10
1987-1988	Chevrolet R10 Suburban
1989-1991	Chevrolet R1500 Suburban
1987-1988	Chevrolet R20
1987-1988	Chevrolet R20 Suburban
1989	Chevrolet R2500
1989-1991	Chevrolet R2500 Suburban
1987	Chevrolet R30
1989-1991	Chevrolet R3500
1995	Chevrolet Tahoe
1987	Chevrolet V10
1987-1988	Chevrolet V10 Suburban
1989-1991	Chevrolet V1500 Suburban
1987	Chevrolet V20
1987-1988	Chevrolet V20 Suburban
1989-1991	Chevrolet V2500 Suburban
1987-1988	Chevrolet V30
1989-1991	Chevrolet V3500
1975-1978	GMC C15
1975-1978	GMC C15 Suburban
1979-1986	GMC C1500
1988-1995	GMC C1500
1979-1986	GMC C1500 Suburban
1992-1995	GMC C1500 Suburban
1975-1978	GMC C25
1975-1978	GMC C25 Suburban
1979-1986	GMC C2500
1988-1995	GMC C2500
1979-1986	GMC C2500 Suburban
1992-1995	GMC C2500 Suburban
1975-1978	GMC C35
