MAX Winch Tray; Black;

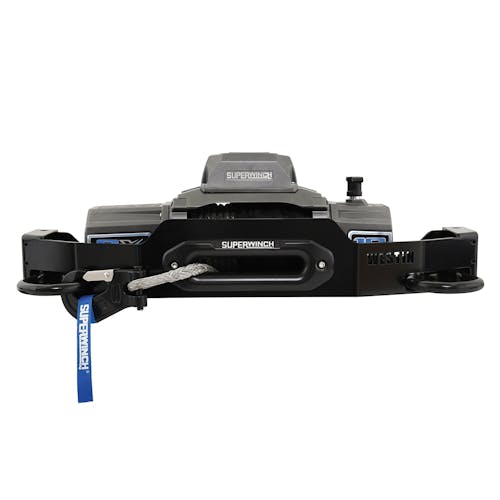

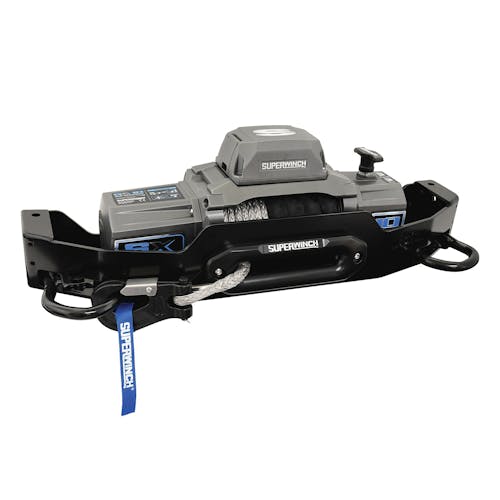

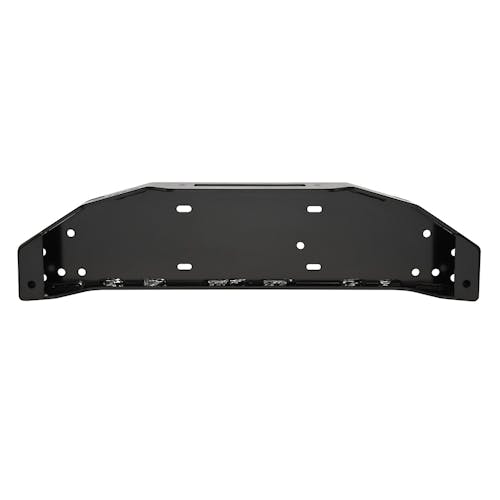

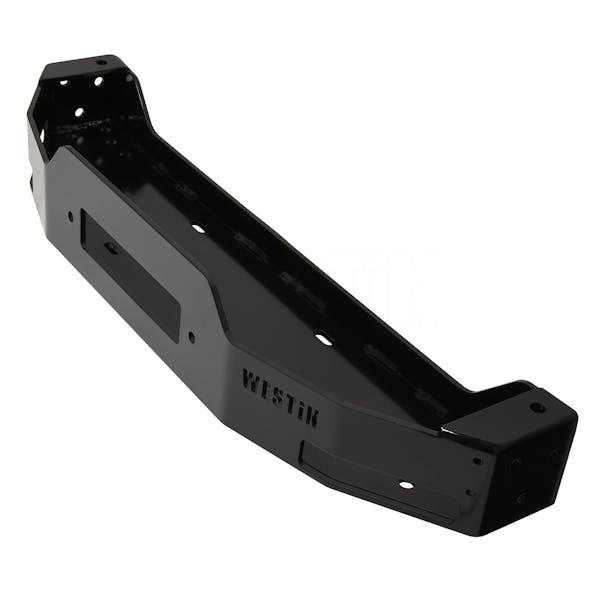

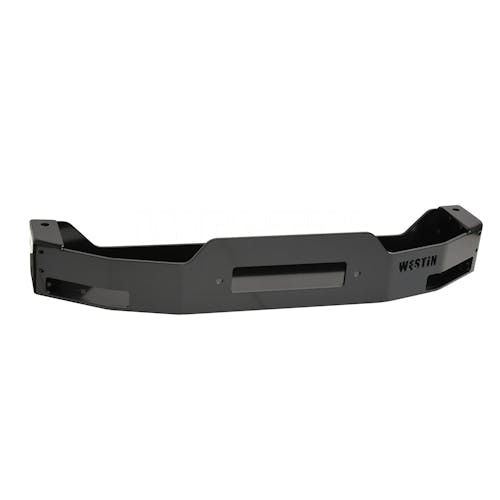

Westins MAX Winch Tray is the core product in our winch mounting system that mounts directly to the vehicle frame. MAX Winch Trays are constructed of heavy weight steel designed to provide a sturdy platform for winch mounting that is pre-drilled for easy bolt-on mounting of the winch and roller fairlead (not included). MAX Winch Trays are compatible with most major brand medium frame winches. The tray is rated line pull of up to 16500 lbs. All trays feature openings for two MAX Tow Hooks (sold individually) for clevis hook anchoring.

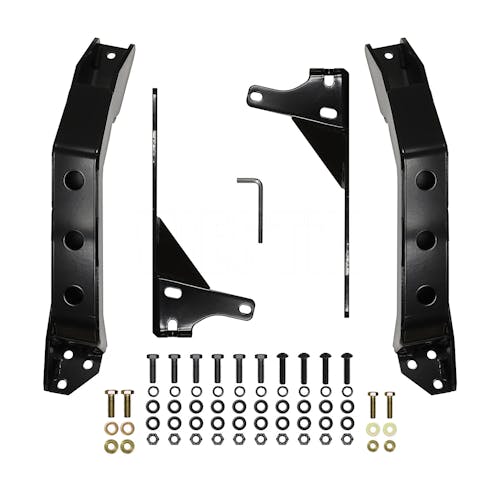

- HD brackets mount directly to vehicle frame
- Winch tray tested to a maximum straight line pull of 16,500 lbs
- Fits most medium frame 8,000-12,000 lbs winches up to 10.25 tall
- Pre-drilled for quick mounting of hawse or roller fairlead
- Optional MAX Bull Bar/Light Bar
- Optional MAX Faceplate

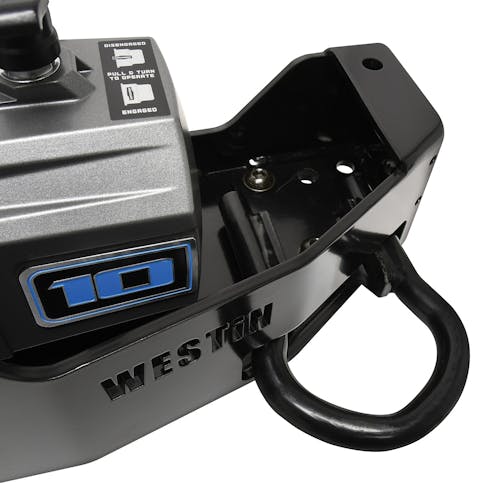

- Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)
Information:
Mounts Directly To Frame
Application Summary:
| Year |
Make/Model |
| 2022-2024 |
Nissan Frontier |
| Attributes |
| AMZ Title |
Westin 46-24075 MAX Winch Tray fits 2022-2024 Frontier |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Can Ship By Ground Delivery |
Yes |
| Color |
Black |
| Country of Origin (Primary) |
CN |
| Finish |
Powder Coated |
| Finish/Color |
Black |
| Freight Class |
65 |
| GTIN |
00707742112274 |
| Harmonized Tariff Code (Schedule B) |
8708295170 |
| Hazardous Material Code |
N |
| Length |
40.550 |
| Life Cycle Status Code |
Available to Order |
| Marketing Status |
New Product |
| Material |
Steel |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| Straight Line Pull Capacity (lbs.) |
12,500 |
| Warranty Time |
36 |
| Width |
12.600 |
| Winch Depth (in.) |
6.75 |
| eBay Title |
Westin 46-24075 MAX Winch Tray fits 2022-2024 Frontier fits 2022-2024 Frontier |
