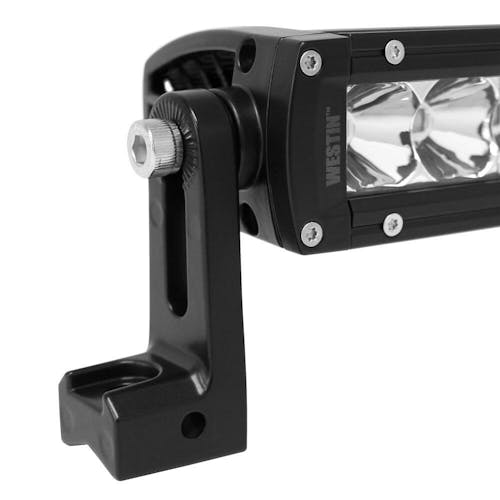

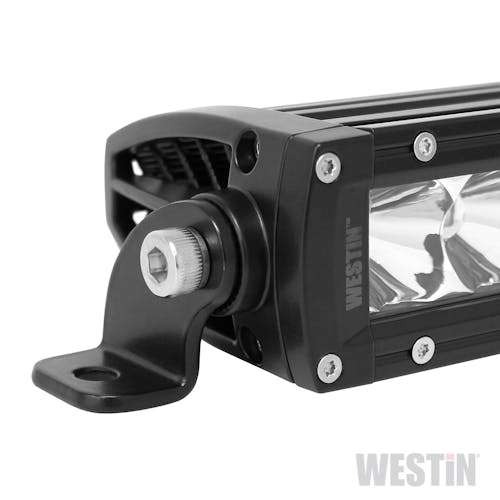

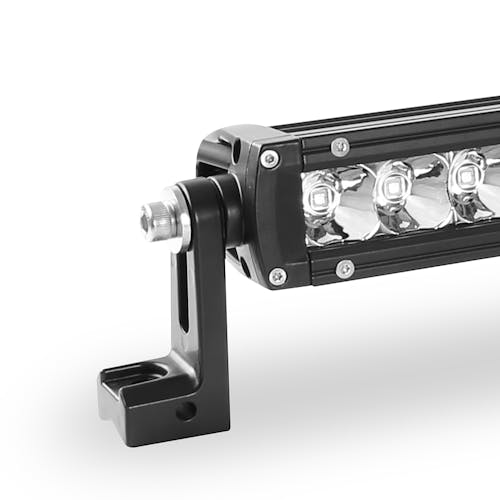

Xtreme Single Row LED Light Bar; Low Profile Single Row; 40 inch Flex w/5W Cree; Black;
Westins Xtreme LED Light Bars are available in 6 10 20 30 40 and 50 lengths. All feature a high quality powder coat finish are rubber sealed and are IP rated at 68 include a GORE(R) pressure-equalizing vent and have a shock proof shatter and scratch resistant polycarbonate lens. Wiring harness with connector switch and in-line fuse hardware and side mount brackets are included.
- Available in 6", 10", 20", 30", 40" and 50" lengths
- 5W LED chips

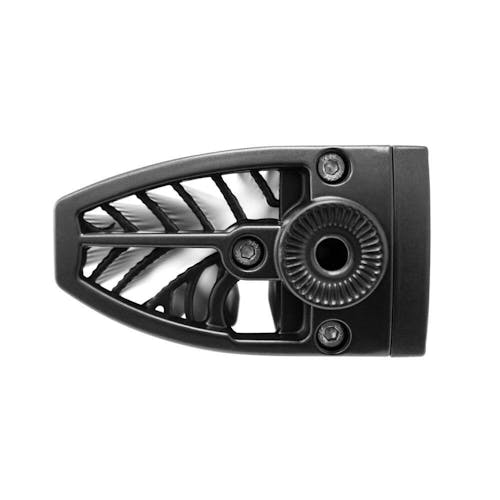

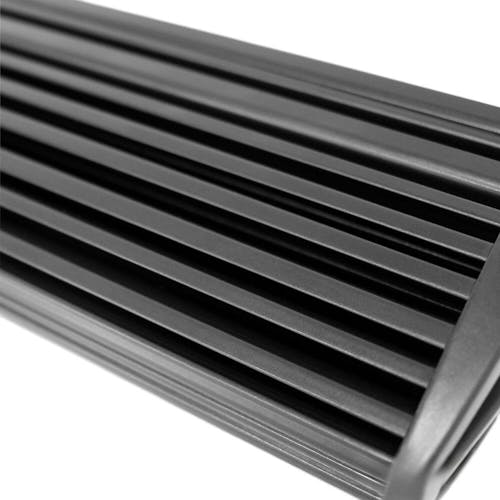

- 6063 extruded aluminum housing with die-cast ends
- Dust and moisture resistant lens
- GORE pressure equalizing vent
- Raw Lumens: 3,000 - 21,500
- Includes wiring harness with connector, switch, relay and in-line fuse and mounting hardware
Information:
Xtreme LED Light Bar
Application Summary:
| Year |
Make/Model |
| LED |
Light Bar Low Profile Single Row 40 inch Flex w/5W Cree |
| Attributes |
| AMZ Title |
Westin 09-12270-40S Xtreme LED Light Bar Low Profile Single Row 40 in. Flex with 5W Cree |
| ASIN |
B01IJDEIVG |
| Beam Distance |
1020 |
| Beam Pattern |
Flex, Flex |
| Beam Style |
Flex |
| Bulb Type |
LED, LED |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Can Ship By Ground Delivery |
Yes, Yes |
| Color |
Black, Black |
| Connector Type |
Pigtail |
| Country of Origin (Primary) |
CN |
| Face Size |
40 in., 40 in. |
| Finish |
Powder Coated, Powder Coated |
| Finish/Color |
Black |
| Freight Class |
70 |
| GTIN |
00707742070918 |
| Harmonized Tariff Code (Schedule B) |
8512202000 |
| Hazardous Material Code |
N |
| Housing Color |
Black, Black |
| Housing Shape |
Rectangular, Rectangular |
| LEDs |
40 x 5W Cree |
| Length |
45.000 |
| Length (in.) |
40 |
| Life Cycle Status Code |
Available to Order |
| Light Color |
White |
| Light Quantity |
Single |
| Marketing Status |
Current |
| Material |
Aluminum, Aluminum |
| NAFTA Preference Criterion Code |
B |
| Overall Length |
40.000 in. |
| Overall Length (in.) |
40.000 in. |
| Raw Lumens |
19920 |
| SDR Required Flag |
N |
| Shape |
Rectangle |
| Voltage |
9V-30V |
| Wattage |
200 Watts |
| Width |
6.000 |
| eBay Title |
Westin 09-12270-40S Xtreme LED Light Bar Single Row 40 in. Flex |
