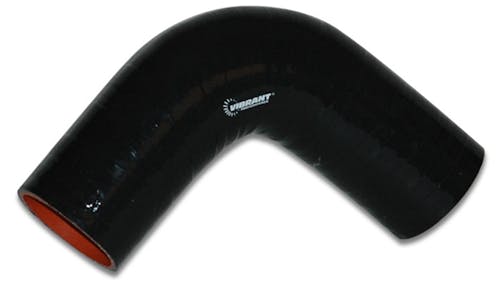

4 Ply 90 Degree Elbow; 1.75 in. I.D. x 7 in. Leg Length; Black;
Vibrant Performance Aramid Reinforced Silicone Couplers are hand wrapped and feature 4-ply reinforcement, which allows our couplers to be capable of withstanding extreme temperatures and heavy duty pressure conditions without swelling or bursting. All Vibrant Performance reinforced hoses meet or exceed SAE J20 specifications, are suitable for coolant service and are UV and Ozone resistant. Not suitable for oil or fuel service, although custom hose solutions are available for such applications. Available in straight sections, transition hoses, hump hoses, 45 and 90 deg. elbows as well as transition elbows, and in a wide variety of Hose ID sizing. Rated for temperatures ranging from -65 deg. F to 350 deg. F.
Vibrant Performance Aramid Reinforced Silicone Couplers are hand wrapped and feature 4-ply reinforcement, which allows our couplers to be capable of withstanding extreme temperatures and heavy duty pressure conditions without swelling or bursting. All Vibrant Performance reinforced hoses meet or exceed SAE J20 specifications, are suitable for coolant service and are UV and Ozone resistant. Not suitable for oil or fuel service, although custom hose solutions are available for such applications. Available in straight sections, transition hoses, hump hoses, 45 and 90 deg. elbows as well as transition elbows, and in a wide variety of Hose ID sizing. Rated for temperatures ranging from -65 deg. F to 350 deg. F.
- 4 Ply Reinforced Silicone
- Center Line Radius 1.5 in.
- Leg Length 5 in.
- 1 Year Limited Warranty
Information:
4 Ply 90 degree Elbow, 1.75" I.D. x 7" Leg Length - Black| Attributes | |
| ASIN | B009OLV3SO |
| Add-On/Complementary Part - Fifth Choice | 12890 |
| Add-On/Complementary Part - First Choice | 2790 |
| Add-On/Complementary Part - Fourth Choice | 2172 |
| Add-On/Complementary Part - Second Choice | 12154 |
| Add-On/Complementary Part - Third Choice | 2696 |
| Bend (dd) | 90 |
| Bend Angle | 90 Degree |
| Burst Strength | 110 |
| Burst Strength (ps) | 110 |
| CLR (in) | 1.75 |
| CLR (mm) | 44.45 |
| California Proposition 65 | Yes |
| Center Line Radius | 1.750 in. |
| Color | Black |
| Country of Origin (Primary) | CN |
| Emission Code | Legal US |
| Finish | Gloss |
| GTIN | 00690092136390 |
| Harmonized Tariff Code (Schedule B) | 3917400090 |
| Hazardous Material Code | N |
| Inlet Diameter | 1.750 in. |
| Inlet ID (in) | 1.75 |
| Inlet ID (mm) | 44.45 |
| Leg Length (in) | 4 |
| Leg Length (mm) | 101.6 |
| Leg/Straight Length | 7.000 in. |
| Life Cycle Status Code | Available to Order |
| Material | 4 Ply Aramid Reinforced Silicone |
| NAFTA Preference Criterion Code | B |
| Outlet Diameter | 1.750 in. |
| Outlet ID (in) | 1.75 |
| Outlet ID (mm) | 44.45 |
| SDR Required Flag | N |
| SDS Sheet Number | NA |
| Wall Thickness | 0.180 in. |
| Wall Thickness (in) | 0.18 |
| Wall Thickness (mm) | 4.572 |
| Warranty Time | 1 |
Vibrant Performance 2843 4 Ply 90 degree Elbow, 1.75" I.D. x 7" Leg Length - Black
Product Information
- Brand: Vibrant Performance
- Product Number: 2843
$40.99
