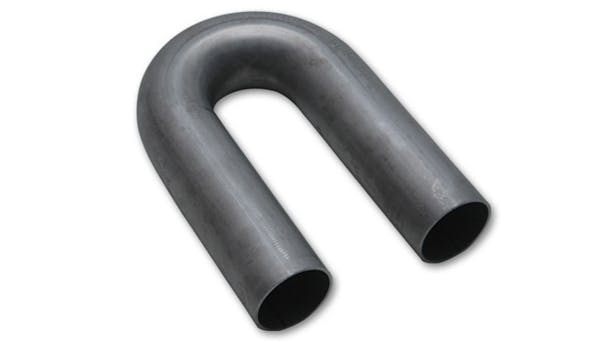

Stainless Tubing; 1-7/8 in./47.625mm O.D. Tight Radius 180 Degree U-Bend;
Vibrants comprehensive line of high quality 304 Stainless Steel Round Tubing is consistent both dimensionally and in material composition, and requires minimal preparation when welding. Available in 16 gauge (0.065") thickness in a selection of sizes ranging from 1.25" to 5", in both round and oval, as well as straight and mandrel bend options.
Vibrants comprehensive line of high quality 304 Stainless Steel Round Tubing is consistent both dimensionally and in material composition, and requires minimal preparation when welding. Available in 16 gauge (0.065") thickness in a selection of sizes ranging from 1.25" to 5", in both round and oval, as well as straight and mandrel bend options.
- Stainless Steel
- Ideal For Difficult Fabrication Projects
- Capable Of Withstanding Acidic/High Heat/Corrosive Conditions
- 5 Year Limited Warranty
Information:
Constructed from 304 stainless 16-gauge wall thickness steel| Attributes | |
| ASIN | B00BT1BROC |
| Bend (dd) | 180 |
| Bend Angle | 180 Degree |
| CLR (in) | 3 |
| CLR (mm) | 76.2 |
| California Proposition 65 | Yes |
| Center Line Radius | 2.500 in. (63.5mm) |
| Country of Origin (Primary) | CA |
| Diameter (in.) | 1.875 in. |
| Emission Code | Legal US |
| Finish | Raw |
| GTIN | 00690092136840 |
| Harmonized Tariff Code (Schedule B) | 8708925000 |
| Hazardous Material Code | N |
| Inlet Diameter | 1.875 in. (47.6mm) |
| Inlet ID (in) | 1.88 |
| Inlet ID (mm) | 47.625 |
| Leg length A (in) | 4 |
| Leg length A (mm) | 101.6 |
| Leg length B (in) | 4 |
| Leg length B (mm) | 101.6 |
| Leg/Straight Length | 4.000 in./102mm x 4.000 in./101.6mm |
| Life Cycle Status Code | Available to Order |
| Material | 304 Stainless Steel |
| NAFTA Preference Criterion Code | D |
| Outlet Diameter | 1.875 in. (47.6mm) |
| Outlet ID (in) | 1.88 |
| Outlet ID (mm) | 47.625 |
| Overall Length | N/A |
| Overall Length (in.) | N/A |
| SDR Required Flag | N |
| Thickness | 16 Gauge |
| Tube Thickness (gu) | 16 |
| Tube Thickness (in) | 0.065 |
| Warranty Time | 5 |
Vibrant Performance 2697 1.875" (47.6mm) O.D. Tight Radius 180 Degree U-Bend
Product Information
- Brand: Vibrant Performance
- Product Number: 2697
$46.99
