Alky Fuel Solenoid

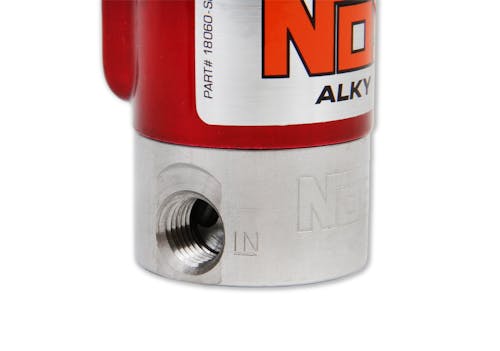

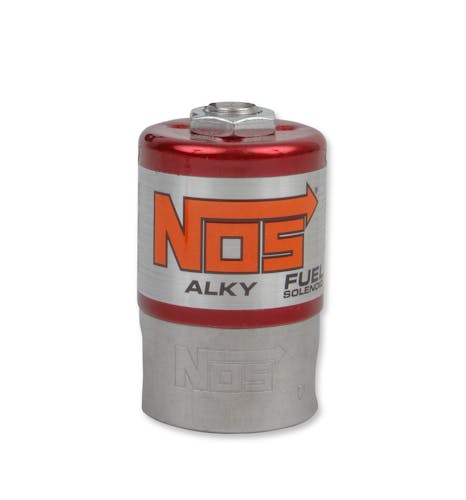

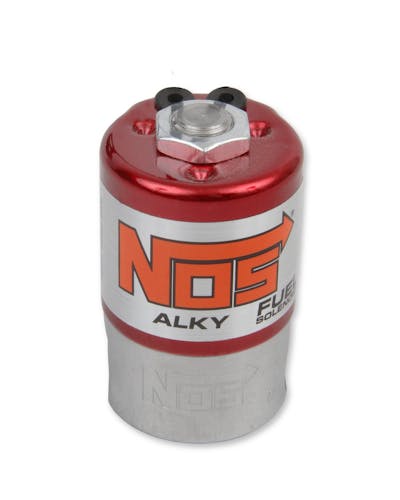

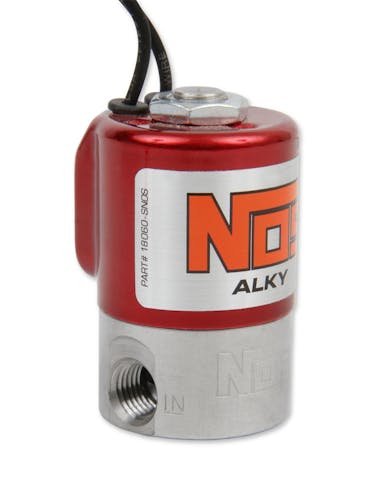

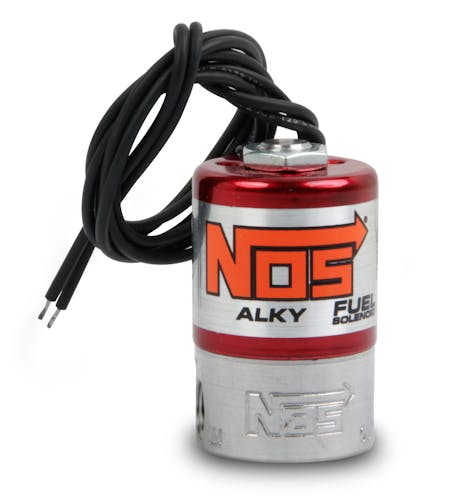

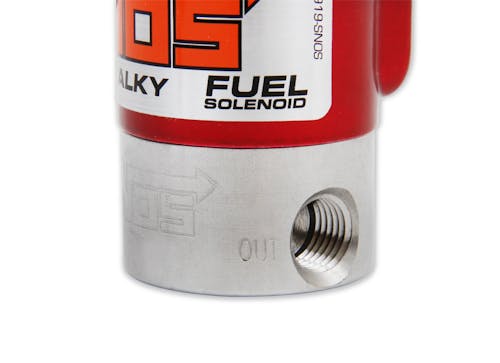

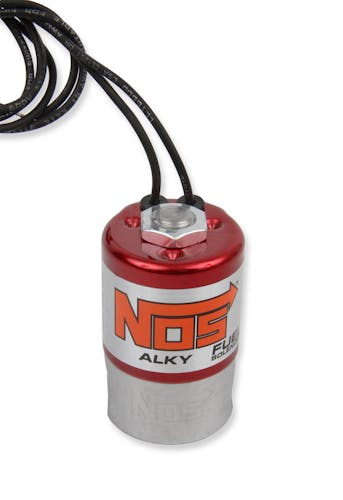

NOS solenoids have been the standard in the performance and racing world for over 35 years and are designed for optimum flow and operation. NOS has overhauled the entire line with new features and new part numbers. The NOS fuel solenoids feature a red powder coated housing, large orifice sizes and FKM rubber plunger pucks for durability and sealing. All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

Inlet size - 1/4" NPT
Outlet Size - 1/4" NPT
Outlet Location - side
Orifice - 1/4" (0.250")
Plunger - BUNA-N
Current Draw @12VDC - 5.75 amps
Up to 600 HP

Information:

Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

Attributes
ASIN	B00CX2C0SS
Amp Draw	5.75A
Amperage Draw	5.75
Bracket(s) Included	No
Brand	NOS
California Proposition 65	No
Category	Air and Fuel Delivery
Country of Origin (Primary)	US
Emission Code	4, Off Road
Finish	Natural
Fittings Included	No
GTIN	00090127684306
Harmonized Tariff Code (Schedule B)	8409915085
Hazardous Material Code	N
Inlet	Side
Inlet Attachment	Female Threads
Inlet Size	0.250 in. NPT
Inlet Thread	1/4" NPT
Life Cycle Status Code	Available to Order
Max Horsepower	600
Maximum Horsepower	600
NAFTA Preference Criterion Code	B
Orifice	1/4" (0.250")
Orifice Diameter	1/4 (0.250 in.)
Outlet	Side
Outlet Attachment	Female Threads
Outlet Size	0.250 in. NPT
Outlet Thread	1/4" NPT
Plunger Material	BUNA-N
Product Line	Alky
Product Type	Fuel Solenoid
Purge Port	None
SDR Required Flag	N
Sale Category	Nitrous
Solenoid Top Cover Color	Red
Sub Category	Switches, Solenoids and Actuators
part type	Nitrous Oxide Solenoid
