Crank trigger kit for use with MSD 6/7/8-Series Ignition - Red

---

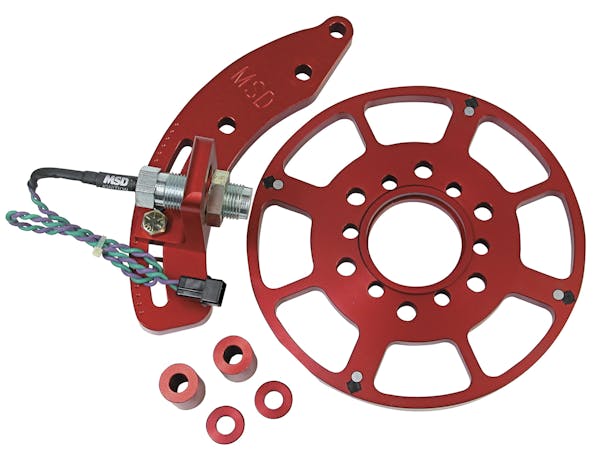

The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered. Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustments. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25" motor plate. These systems will trigger MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories.

• Absolutely the most accurate way to trigger the ignition.
• The non-magnetic pickup cannot be false triggered.
• Powerful magnets are embedded in a billet aluminum trigger wheel.
• Kits feature special brackets and mounting hardware for a variety of engines.

---

Information:

Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle

---

Application Summary:

Year	Make/Model
1974-1980	Pontiac Bonneville
1974-1980	Pontiac Catalina
1974-1981	Pontiac Firebird
1974-1975	Pontiac Grand Am
1978-1980	Pontiac Grand Am
1975-1977	Pontiac Grand LeMans
1979-1981	Pontiac Grand LeMans
1974-1980	Pontiac Grand Prix
1974-1978	Pontiac Grand Safari
1974-1975	Pontiac Grandville
1973-1977	Pontiac LeMans
1979-1981	Pontiac LeMans
1974-1975	Pontiac Ventura
1977	Pontiac Ventura
