Designed To Be Used With The 6EFI Ignition Box Part Number 6415

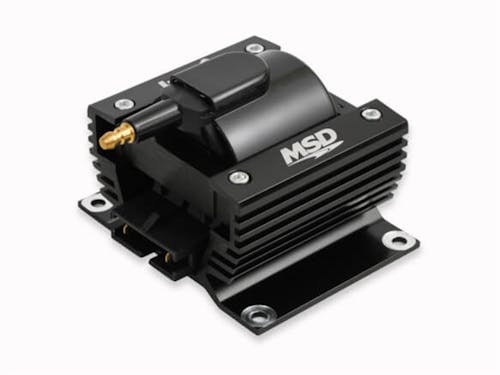

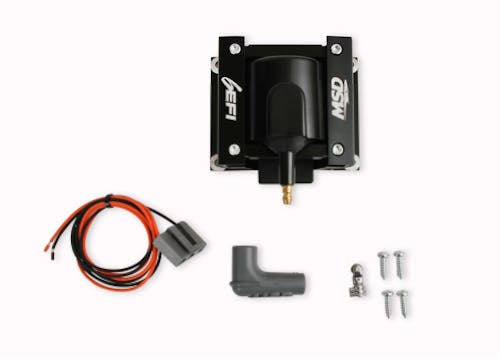

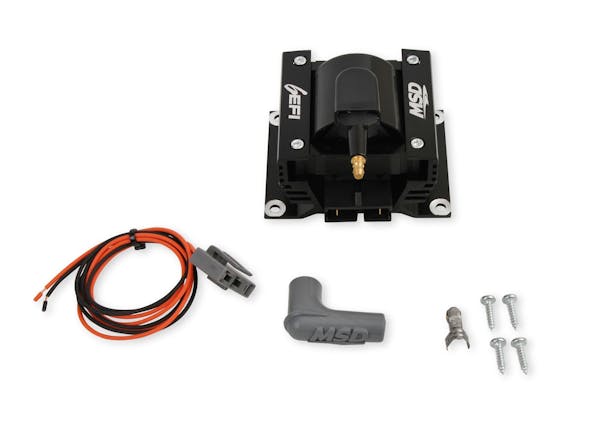

When running an MSD Atomic EFI or similar throttle body fuel injection system with a 6EFI ignition box, the 6EFI ignition coil is made for you. Designed to match the 6EFI ignition, the 6EFI coil has a clean black appearance with logos laser-etched on its black anodized aluminum mounting bracket. It is supplied with four, self-tapping mounting screws and a plug-in harness with color-coded wires for easy installation. The 6EFI coil produces high voltage and current that translate to powerful spark improving engine starting, throttle response, and power throughout the RPM range.
- Produces high spark energy to ensure the air and fuel in your engine get burned completely to improve starting, throttle response, and supply powerful spark throughout the RPM range
- Designed to work with the MSD 6EFI Ignition part number 6415 and can also be used with other MSD 6-series ignition boxes such as a 6AL part number 6425

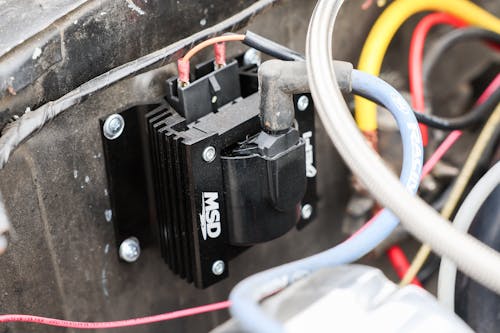

- The black housing and laser-etched black anodized mounting bracket add great looks and a solid mounting point

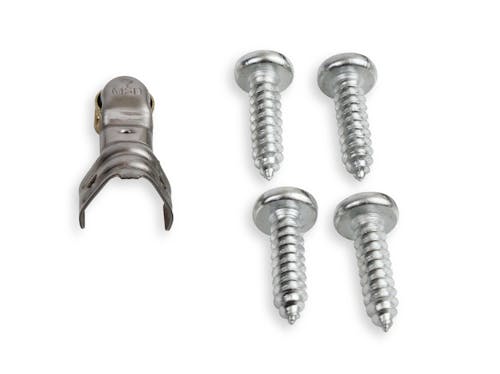

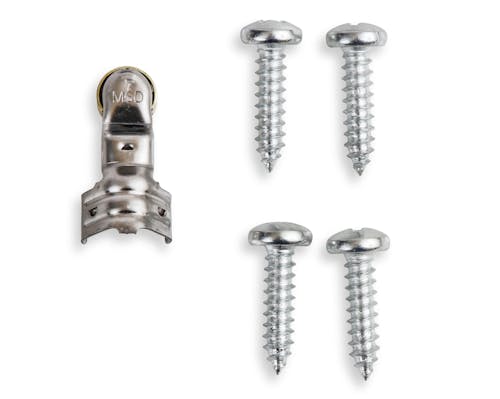

- Four, self-tapping screws are supplied for mounting the coil

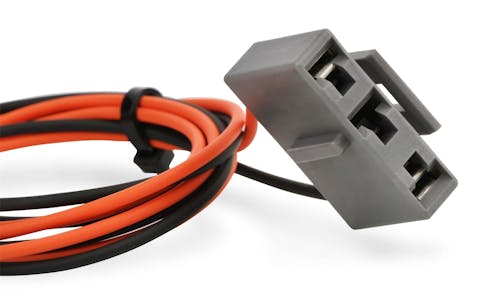

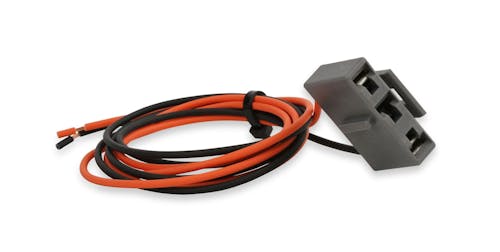

- Provided with a plug-in wiring harness with wire colors that match the 6EFI ignition for an easy installation

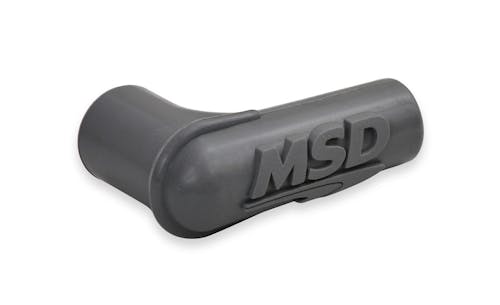

- An MSD spark plug wire boot and terminal come in the kit to convert your existing coil wire from a female, socket connection to a male high energy ignition (H.E.I.) connection if needed
Information:
Coil output specs obtained when used with the MSD 6EFI ignition box part number 6415.
Application Summary:
| Year |
Make/Model |
| Designed |
to work with the MSD 6EFI Ignition part number 6415 and can also be used with other MSD 6-series ignition boxes such as a 6AL part number 6425 |
| Attributes |
| Brand |
MSD |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category |
Ignition |
| Color |
Black |
| Country of Origin (Primary) |
CN |
| Emission Code |
2, 3 |
| GTIN |
00090127070383 |
| Harmonized Tariff Code (Schedule B) |
8511300080 |
| Hazardous Material Code |
N |
| Inductance |
4.34 mH |
| Life Cycle Status Code |
Available to Order |
| Maximum Voltage |
45,000 Volts |
| NAFTA Preference Criterion Code |
B |
| Peak Current |
300 mA |
| Primary Resistance |
0.43 Ohms |
| Product Type |
Ignition Coil |
| SDR Required Flag |
N |
| Secondary Resistance |
4.6K Ohms |
| Series |
6EFI Coils |
| Spark Duration |
300 uS |
| Sub Category |
Ignition Coil |
| Subcategory |
Coils and Parts |
| Turns Ratio |
80:1, 3.3340277777777776 |
| Warning |
California Proposition 65 |
| Warranty |
Limited 1 Year Warranty |
| Warranty Time |
12 |
| part type |
Ignition Coil |
