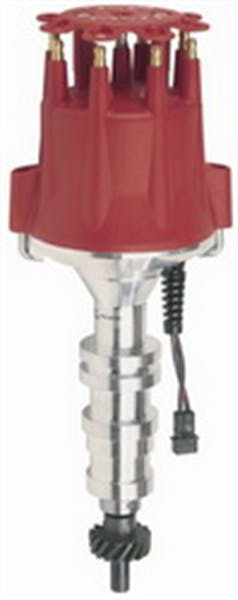

Fits 332, 352, 360, 390, 406, 410, 427, 428 FE Engines. Must be used with an MSD 6, 7 or 8-series ignition. Comes with an iron gear

---

A magnetic pick-up triggers your MSD Ignition Control accurately at any rpm. Above this pick-up the mechanical advance assembly is positioned so it can be adjusted without disassembling the distributor. In addition, the specially ground advance cam is tig-welded to the 9/16" hardened shaft and the weight pins are staked and TIG-welded to the advance plate.

• CNC machined billet aluminum housing and billet aluminum base
• Advance weight pins are staked and tig welded to the plate
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• No CARB Exemption Order Number
• Will not accept a vacuum advance or MSD Cap-A-Dapt
• Supplied with an HEI style distributor cap and rotor
• Must be used with an MSD Ignition Control
• Mechanical advance assembly can be locked out for crank trigger systems
• Nylon pads ensure smooth operation of the advance weights

---

Information:

Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle

---

Application Summary:

Year	Make/Model
1963	Ford 300
1959	Ford Club
1958-1971	Ford Country Sedan
1958-1971	Ford Country Squire
1957-1960	Ford Courier Sedan Delivery
1964-1971	Ford Custom
1958-1960	Ford Custom 300
1964-1971	Ford Custom 500
1958	Ford Del Rio Wagon
1957-1963	Ford F-100
1965-1976	Ford F-100
1975-1976	Ford F-150
1957-1963	Ford F-250
1965-1976	Ford F-250
1957-1976	Ford F-350
1958-1970	Ford Fairlane
1959-1967	Ford Galaxie
1962-1971	Ford Galaxie 500
1964-1969	Ford GT40
1965-1971	Ford LTD
1967-1970	Ford Mustang
1958-1971	Ford Ranch Wagon
1957-1959	Ford Ranchero
1966-1969	Ford Ranchero
1958-1959	Ford Skyliner
1960	Ford Starliner
1958-1960	Ford Sunliner
1958-1969	Ford Thunderbird
1968-1970	Ford Torino
1958-1960	Ford Victoria
1967	Mercury Brougham
1964-1967	Mercury Caliente
1966-1967	Mercury Capri
1961-1971	Mercury Colony Park
1964-1969	Mercury Comet
1961-1968	Mercury Commuter
1967-1970	Mercury Cougar
1963	Mercury Country Cruiser
1964-1970	Mercury Cyclone
1963-1970	Mercury Marauder
1967-1970	Mercury Marquis
1961-1963	Mercury Meteor
1964-1968	Mercury Montclair
1968-1969	Mercury Montego
1961-1970	Mercury Monterey
1964-1968	Mercury Park Lane
1964-1967	Mercury Villager
1966-1967	Mercury Voyager
