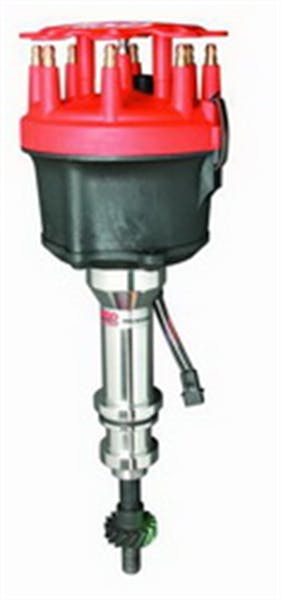

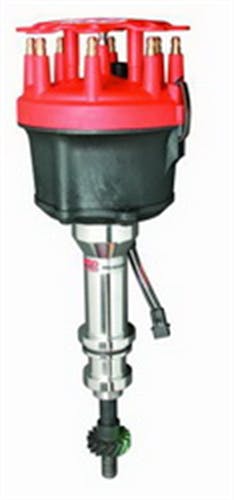

Small Block Ford - 289/302 - SBF - Must Be Used With an MSD 6, 7, or 8-Series Ignition.

---

The steel shaft that spins the advance and reluctor receives a friction-reducing coating plus is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any rpm. Triggering chores are handled by MSD's race-proven, maintenance-free magnetic pick-up. MSD premium distributors come complete with a race rotor and alkyd cap.

• CNC machined billet aluminum housing and Dupont Rynite base
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• No CARB Exemption Order Number
• Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
• Must be used with an MSD Ignition Control
• Mechanical advance assembly can be locked out for crank trigger systems
• Nylon pads ensure smooth operation of the advance weights
• Advance weight pins are staked and tig welded to the plate
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

---

Information:

Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle

---

Application Summary:

Year	Make/Model
1975-1977	Ford Bronco
1980-1989	Ford Bronco
1991-1996	Ford Bronco
1987-1989	Ford Country Squire
1991	Ford Country Squire
1975	Ford E-100 Econoline
1979-1983	Ford E-100 Econoline
1979-1983	Ford E-100 Econoline Club Wagon
1975	Ford E-150 Econoline
1979-1989	Ford E-150 Econoline
1991-1996	Ford E-150 Econoline
1979-1989	Ford E-150 Econoline Club Wagon
1991-1996	Ford E-150 Econoline Club Wagon
1975	Ford E-250 Econoline
1979-1989	Ford E-250 Econoline
1991	Ford E-250 Econoline
1979-1980	Ford E-250 Econoline Club Wagon
1975	Ford E-350 Econoline
1979-1982	Ford E-350 Econoline
1979-1980	Ford E-350 Econoline Club Wagon
1975-1983	Ford F-100
1975-1989	Ford F-150
1991-1996	Ford F-150
1975	Ford F-250
1977-1978	Ford F-250
1980-1989	Ford F-250
1991-1996	Ford F-250
1975-1980	Ford F-350
1978-1979	Ford Fairmont
1975-1980	Ford Granada
1977-1986	Ford LTD
1987-1989	Ford LTD Crown Victoria
1991	Ford LTD Crown Victoria
1977-1979	Ford LTD II
1975-1977	Ford Maverick
1979	Ford Mustang
1982-1985	Ford Mustang
1975-1978	Ford Mustang II
1977-1979	Ford Ranchero
1977-1981	Ford Thunderbird
1983-1988	Ford Thunderbird
1991-1993	Ford Thunderbird
1984	Mercury Capri
