Low profile, magnetic pickup distributor ideal for clearing blower snouts, and for any application where height is critical.

---

Ford crab cap distributors are built on the proven foundation of the MSD Pro-Billet distributor line. They rely on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance. Mounted to the top of this shaft is a fully adjustable mechanical advance assembly.

• Low Profile, crab cap for optimal clearance in tight areas
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• CNC machined billet aluminum housing and billet aluminum base
• Easy-to-adjust mechanical advance with supplied springs and stop bushings provide the ability to create a timing curve perfect for your engine

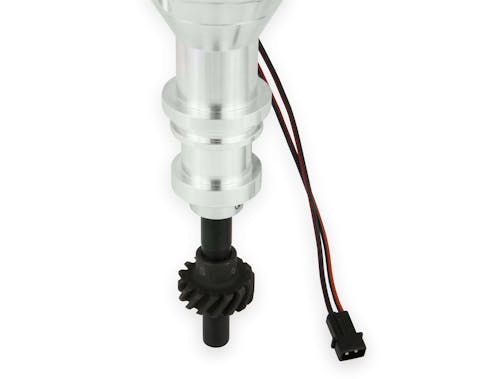

• Supplied with a STEEL distributor gear, compatible with MOST hydraulic roller cam applications
• Must be used with an MSD Ignition Control
• Nylon pads ensure smooth operation of the advance weights
• Advance weight pins are staked and tig welded to the plate for strength and durability
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

---

Information:

1. Must be used with an MSD ignition control. 2. Supplied with STEEL distributor gear. *Always contact your cam manufacturer for proper distributor gear recommendations.

---

Application Summary:

Year	Make/Model
1978-1996	Ford Bronco
1995-1996	Ford Club Wagon
1969-1974	Ford Country Sedan
1969-1974	Ford Country Squire
1969-1972	Ford Custom
1969-1977	Ford Custom 500
1975-1983	Ford E-100 Econoline
1975-1983	Ford E-100 Econoline Club Wagon
1975-1996	Ford E-150 Econoline
1975-1996	Ford E-150 Econoline Club Wagon
1975-1996	Ford E-250 Econoline
1975-1991	Ford E-250 Econoline Club Wagon
1975-1996	Ford E-350 Econoline
1977-1996	Ford E-350 Econoline Club Wagon
1975-1976	Ford Elite
1973-1974	Ford F-100
1977-1979	Ford F-100
1975-1996	Ford F-150
1986	Ford F-200
1973-1997	Ford F-250
1997	Ford F-250 HD
1973-1997	Ford F-350
1969-1970	Ford Fairlane
1969-1970	Ford Falcon
1969-1974	Ford Galaxie 500
1972-1976	Ford Gran Torino
1975-1977	Ford Granada
1969-1986	Ford LTD
1987-1991	Ford LTD Crown Victoria
1977-1979	Ford LTD II
1969-1973	Ford Mustang
1995	Ford Mustang
1969-1974	Ford Ranch Wagon
1969-1979	Ford Ranchero
1968-1979	Ford Thunderbird
1969-1976	Ford Torino
