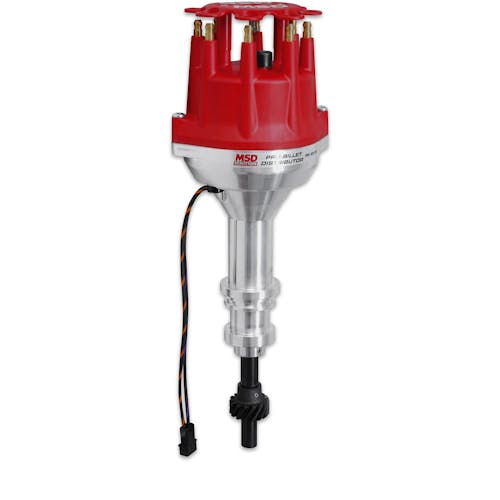

Small diameter distributor for 351W, includes iron gear. Must be used with an MSD 6, 7 or 8-series ignition.

---

Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance.

• Billet housing is 5/8” smaller in diameter than stock Ford distributors
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• CNC machined billet aluminum housing and billet aluminum base
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• No CARB Exemption Order Number
• Must be used with an MSD Ignition Control
• Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
• Nylon pads ensure smooth operation of the advance weights
• Advance weight pins are staked and tig welded to the plate
• Mechanical advance assembly can be locked out for crank trigger systems

---

Information:

Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle

---

Application Summary:

Year	Make/Model
1981-1989	Ford Bronco
1991-1996	Ford Bronco
1976-1977	Ford Custom 500
1975-1983	Ford E-100 Econoline
1975-1983	Ford E-100 Econoline Club Wagon
1975-1989	Ford E-150 Econoline
1991-1996	Ford E-150 Econoline
1975-1989	Ford E-150 Econoline Club Wagon
1991-1996	Ford E-150 Econoline Club Wagon
1975-1989	Ford E-250 Econoline
1991-1996	Ford E-250 Econoline
1975-1989	Ford E-250 Econoline Club Wagon
1991	Ford E-250 Econoline Club Wagon
1975-1989	Ford E-350 Econoline
1991-1996	Ford E-350 Econoline
1977-1989	Ford E-350 Econoline Club Wagon
1991-1996	Ford E-350 Econoline Club Wagon
1976	Ford Elite
1981	Ford F-100
1981-1989	Ford F-150
1991-1996	Ford F-150
1981-1989	Ford F-250
1991-1997	Ford F-250
1997	Ford F-250 HD
1981-1989	Ford F-350
1991-1997	Ford F-350
1975-1976	Ford Gran Torino
1975-1977	Ford Granada
1976-1986	Ford LTD
1988-1989	Ford LTD Crown Victoria
1991	Ford LTD Crown Victoria
1977-1979	Ford LTD II
1995	Ford Mustang
1975-1979	Ford Ranchero
1977-1979	Ford Thunderbird
1975-1976	Ford Torino
