Transmission Cooler Line Kit, fits Chevrolet/GMC 6.6L Duramax (LLY/LBZ/LMM) 2006-2010
Every truck owner knows that it doesn't matter how powerful or reliable your engine is if you can't get any power to the wheels. The transmission mated to your 2006-20010 LLY/LBZ/LMM Duramax is essential to everything your truck does, and keeping it cool is crucial. Upgrading your transmission cooler with a Mishimoto performance transmission cooler is a good start, but the fluid still needs to get to the cooler. That's where this 2006-20010 LLY/LBZ/LMM Transmission Line Kit comes in. These high performance lines are constructed with a durable PTFE line that's wrapped in a high-strength nylon braid. The PTFE line is extremely oil and heat resistant for durability in even the harshest environments. To protect the lines against higher line pressures that come with performance transmissions, We've wrapped them in braided high-strength nylon. This wrap prevents expansion and further protects the lines from abrasion. Finally, these lines are capped off with -10AN fittings for a secure and leak-free connection. Like all Mishimoto Duramax products, these transmission lines are backed by our Mishimoto Lifetime Warranty for a lifetime of performance.
- Direct fit for 2006-2010 LLY/LBZ/LMM Duramax
- Working pressure of 2,000 psi and burst pressure of 6,000 psi
- High-strength nylon outer braid prevents expansion under high pressure and protects line against abrasion
- High-flow -10AN lines and fittings ensure high flow while preventing leaks
- Mishimoto Lifetime Warranty
Application Summary:
| Year |
Make/Model |
| 2006-2010 |
Chevrolet Silverado 2500 HD |
| 2007 |
Chevrolet Silverado 2500 HD Classic |
| 2006 |
Chevrolet Silverado 3500 |
| 2007 |
Chevrolet Silverado 3500 Classic |
| 2007-2010 |
Chevrolet Silverado 3500 HD |
| 2006-2010 |
GMC Sierra 2500 HD |
| 2007 |
GMC Sierra 2500 HD Classic |
| 2006 |
GMC Sierra 3500 |
| 2007 |
GMC Sierra 3500 Classic |
| 2007-2010 |
GMC Sierra 3500 HD |
| Attributes |
| Country of Origin (Primary) |
CN |
| GTIN |
00811580036095 |
| Hazardous Material Code |
N |
| Install Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for 2006-2010 LLY/LBZ/LMM Duramax |
| SellingPoint02 |
PTFE inner liner is extremely oil and heat resistant for maximum durability |
| SellingPoint03 |
High-strength nylon outer braid prevents expansion under high pressure and protects line against abrasion |
| SellingPoint04 |
Working pressure of 2,000 psi and burst pressure of 6,000 psi |
| SellingPoint05 |
High-flow -10AN lines and fittings ensure high flow while preventing leaks |
| SellingPoint06 |
Includes -10AN to M22x1.5 fittings for use with many aftermarket radiators |
| SellingPoint07 |
Fits with Mishimoto Performance Transmission Coolers |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for 2006-2010 LLY/LBZ/LMM Duramax |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
PTFE inner liner is extremely oil and heat resistant for maximum durability |
| SellingPoint3 |
High-strength nylon outer braid prevents expansion under high pressure and protects line against abrasion |
| SellingPoint4 |
Working pressure of 2,000 psi and burst pressure of 6,000 psi |
| SellingPoint5 |
High-flow -10AN lines and fittings ensure high flow while preventing leaks |
| SellingPoint6 |
Includes -10AN to M22x1.5 fittings for use with many aftermarket radiators |
| SellingPoint7 |
Fits with Mishimoto Performance Transmission Coolers |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
2006-2010 Chevrolet/GMC 6.6L Duramax (LLY/LBZ/LMM) |
| TechSpec Caution |
N/A |
| TechSpec Chassis Codes |
N/A |
| TechSpec Core Construction |
N/A |
| TechSpec Core Height (in) |
N/A |
| TechSpec Core Length (in) |
N/A |
| TechSpec Core Thickness (in) |
N/A |
| TechSpec Engine Codes |
LLY--LBZ--LMM |
| TechSpec Fluid Capacity (qts) |
N/A |
| TechSpec Includes |

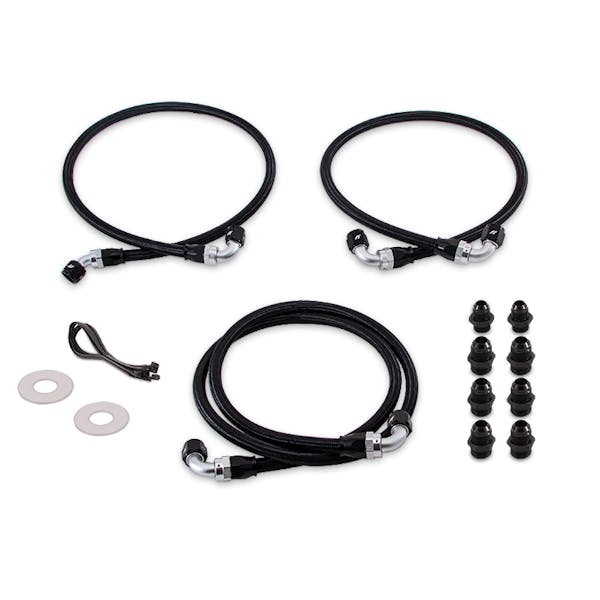

-10AN 46.45-in Line w/ 90-degree & 45-degree Fittings---10AN 69.68-in Line w/ 90-degree Fittings---10AN 39.76-in Line w/ 90-degree Fittings---10AN to 7/8-in-14 ORB Fittings---10AN to M22x1.5 Fittings--Washers--Zip Ties--Mishimoto Lifetime Warranty |
| TechSpec Inlet |
N/A |
| TechSpec Installation Notes |
N/A |
| TechSpec Note |
Trucks with aftermarket radiators that include a large integral nut on radiator fittings should use -10AN to M22x1.5 fittings |
| TechSpec Outlet |
N/A |
| TechSpec Overall Height (in) |
0.625 |
| TechSpec Overall Length (in) |
46.45 |
| TechSpec Overall Width (in) |
0.625 |
