Performance Aluminum Radiator, fits Jeep Wrangler JK 2007-2018
Performance Jeeps deserve performance Jeep parts. That's why We've developed an update for our 2007-2018 Jeep Wrangler JK radiator. Mishimoto's V1 JK radiator has served as a substantial upgrade over the stock plastic radiator, but after hearing feedback from our customers, we wanted to push the limits even further. With the off-road enthusiast in mind, Mishimoto has developed the V2 2007-2018 Jeep Wrangler JK radiator. This new radiator incorporates several updates that bolster the performance and durability of the Wrangler's cooling system. As with many of our radiators, this updated radiator provides a substantial size increase over stock. An 18-percent greater core volume, fin area, and external tube area, along with a 13-percent increase in coolant capacity, allow MMRAD-WRA-07V2 to keep up with the cooling needs of even the most demanding off-road machine. Of course, reliability is also a major concern for any Wrangler owner. Mishimoto has devoted countless hours of RandD to bring the JK market a stronger, more reliable radiator. Our V2 radiator features extruded, internally strutted tubes to help combat flex within the core. These strutted tubes provide the radiator with greater rigidity and durability, reducing the potential for cracks and leaks. As with all our products, MMRAD-WRA-07V2 is backed by Mishimoto's Lifetime Warranty for unparalleled peace of mind.
- Extruded tubes with internal struts for increased strength and pressure tolerance
- 18-percent increase in core volume, fin area, and external tube area
- 13-percent increase in coolant capacity
Application Summary:
| Year |
Make/Model |
| 2007-2018 |
Jeep Wrangler |
| 2018 |
Jeep Wrangler JK |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
CN |
| Dimensions |
29in x 9in x 24in |
| Feature Bullet 1 |
Direct fit for the 2007-2018 Jeep Wrangler JK |
| Feature Bullet 2 |
Extruded tubes with internal struts for increased strength and pressure tolerance |
| Feature Bullet 3 |
18% increase in core volume, fin area, and external tube area |
| Feature Bullet 4 |
13 percent increase in coolant capacity |
| Feature Bullet 5 |
Mishimoto Lifetime Warranty |
| GTIN |
00748354038996 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2007-2018 Jeep Wrangler JK |
| SellingPoint02 |
Extruded tubes with internal struts for increased strength and pressure tolerance |
| SellingPoint03 |
18-percent increase in core volume, fin area, and external tube area |
| SellingPoint04 |
13-percent increase in coolant capacity |
| SellingPoint05 |
100-percent brazed aluminum core |
| SellingPoint06 |
TIG-welded to perfection |
| SellingPoint07 |

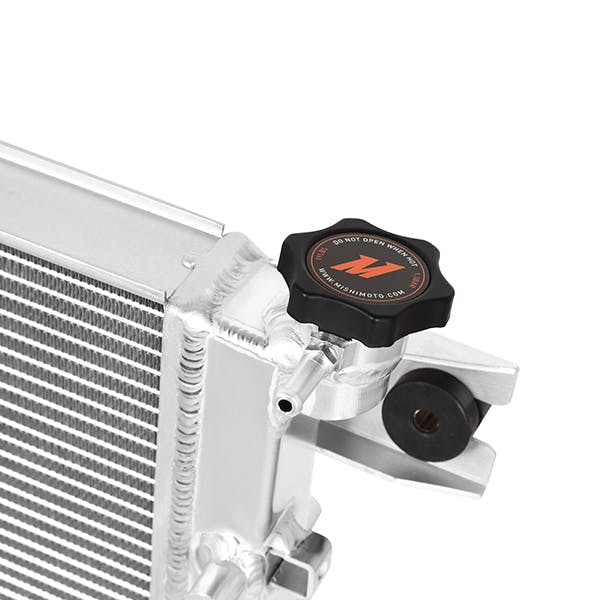

Includes 19 PSI high-pressure radiator cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint08 |
Includes magnetic drain plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint09 |
Mishimoto Lifetime Warranty |
| SellingPoint1 |
Direct fit for the 2007-2018 Jeep Wrangler JK |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Extruded tubes with internal struts for increased strength and pressure tolerance |
| SellingPoint3 |
18-percent increase in core volume, fin area, and external tube area |
| SellingPoint4 |
13-percent increase in coolant capacity |
| SellingPoint5 |
100-percent brazed aluminum core |
| SellingPoint6 |
TIG-welded to perfection |
| SellingPoint7 |
Includes 19 PSI high-pressure radiator cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint8 |
Includes magnetic drain plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint9 |
Mishimoto Lifetime Warranty |
| TechSpec Applications |
2007-2018 Jeep Wrangler JK |
| TechSpec Chassis Codes |
JK |
| TechSpec Core Height (in) |
20.66 |
| TechSpec Core Length (in) |
22 |
| TechSpec Core Thickness (in) |
1.26 |
| TechSpec DPI |
N/A |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
EGH (3.8L)--Pentastar V6 (3.6L) |
| TechSpec Fluid Capacity (gal) |
.62 |
| TechSpec Includes |
Mishimoto Radiator--Magnetic Drain Plug--Additional Mounting Hardware--Rubber Isolator Bushings--Mishimoto Lifetime Warranty |

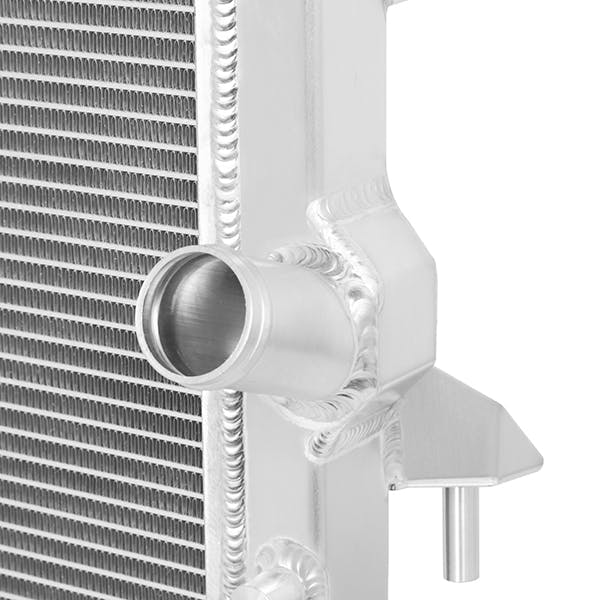

| TechSpec Inlet (in) |
1.5 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
N/A |
| TechSpec Outlet (in) |
1.5 |
| TechSpec Overall Height (in) |
22.1 |
| TechSpec Overall Length (in) |
29.6 |
| TechSpec Overall Width (in) |
6.4 |
| TechSpec Overall Width (ins) |
6.4 |
| TechSpec Rows |
1 |
