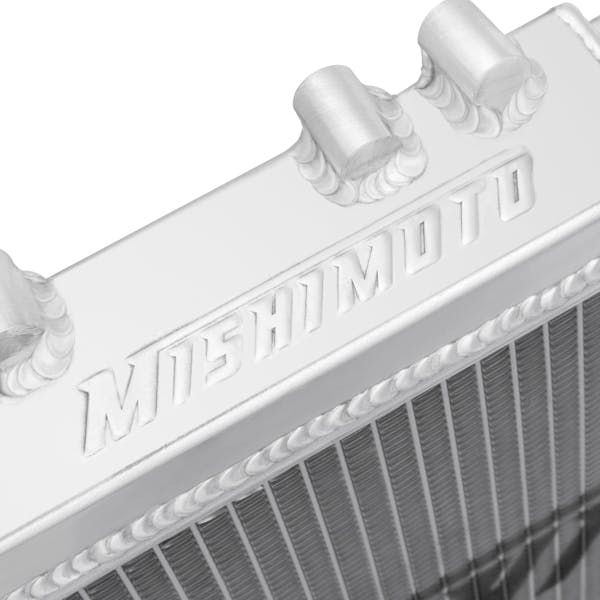

Performance Aluminum Radiator, fits Nissan Sentra w/ SR20 1991-1999 Manual
The Mishimoto performance aluminum radiator for the Nissan Sentra w/ SR20 is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and protect your car from overheating.The Mishimoto 1991-1999 Nissan Sentra radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap and a great warranty including accident protection.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.57-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Application Summary:
| Year |
Make/Model |
| 1995-1998 |
Nissan 200SX |
| 1991-1994 |
Nissan Sentra |
| 1998-1999 |
Nissan Sentra |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
CN |
| Dimensions |
26.4in x 17.2in x 2.07in |
| GTIN |
00748354799989 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1991-1999 Nissan Sentra SE-R |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |
Provides efficient temperature reduction for use on the street, track, or autocross course |
| SellingPoint06 |

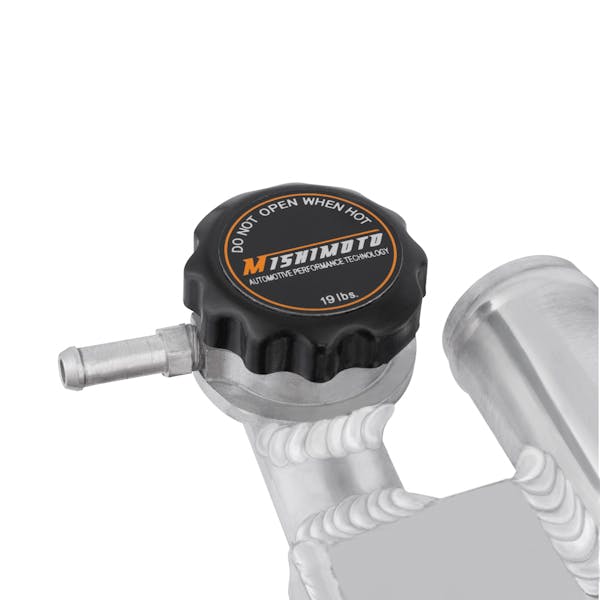

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint07 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 1991-1999 Nissan Sentra SE-R |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 1.57-in thick, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Provides efficient temperature reduction for use on the street, track, or autocross course |
| SellingPoint6 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint7 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
1991-1994 Nissan Sentra SE-R--1995-1998 Nissan 200sx |
| TechSpec Chassis Codes |
B13--B14 |
| TechSpec Core Height (in) |
25.51 |
| TechSpec Core Length (in) |
12.44 |
| TechSpec Core Thickness (in) |
1.57 |
| TechSpec DPI |
1152/1178/1317/1426 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
SR20DE--SR20DET |
| TechSpec Fluid Capacity (gal) |
1.85 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.38 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| TechSpec Outlet (in) |
1.38 |
| TechSpec Overall Height (in) |
26.4 |
| TechSpec Overall Length (in) |
17.2 |
| TechSpec Overall Width (in) |
2.07 |
| TechSpec Overall Width (ins) |
2.07 |
| TechSpec Rows |
2 |
