Performance Aluminum Radiator, fits Nissan Sentra SE-R / Spec-V 2002-2006
The Mishimoto performance aluminum radiator for the Nissan Sentra SE-R/Spec-V is designed and engineered to maximize cooling efficiency by up to 30-percent, boost engine functions, and most importantly, protect your car from overheating whether you drive your vehicle daily or take it for track runs.The Mishimoto aluminum 2002-2005 Sentra radiator features a lightweight dual core, 100-percent brazed aluminum, and polished end tanks, enhancing the overall performance of your engine.Every Mishimoto aluminum radiator is a direct OEM fit, making installation effortless with no cutting or modification required.This is the ideal upgrade to the stock Sentra radiator.
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 1.42-in thick, efficient brazed aluminum core
- Increased fluid capacity and optimal heat dissipation
Application Summary:
| Year |
Make/Model |
| 2002-2009 |
Nissan Sentra |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
CN |
| Dimensions |
28in x 19.8in x 1.92in |
| GTIN |
00748354797763 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 2002-2006 Nissan Sentra SE-R/Spec-V |
| SellingPoint02 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint03 |
Features a two-row, 1.42-in thick, efficient brazed aluminum core |
| SellingPoint04 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint05 |
Provides efficient temperature reduction for street and/or track use |
| SellingPoint06 |

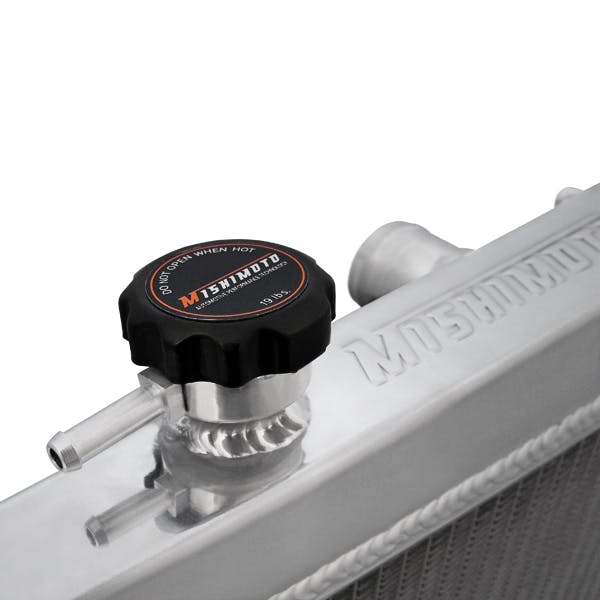

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint07 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint08 |
Mishimoto Lifetime Warranty |
| SellingPoint09 |
N/A |
| SellingPoint1 |
Direct fit for the 2002-2006 Nissan Sentra SE-R/Spec-V |
| SellingPoint10 |
N/A |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint3 |
Features a two-row, 1.42-in thick, efficient brazed aluminum core |
| SellingPoint4 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint5 |
Provides efficient temperature reduction for street and/or track use |
| SellingPoint6 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint7 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint8 |
Mishimoto Lifetime Warranty |
| SellingPoint9 |
N/A |
| TechSpec Applications |
2002-2006 Nissan Sentra SE-R--2002-2006 Nissan Sentra Spec-V--2003 Nissan Sentra Limited Edition |
| TechSpec Chassis Codes |
B15 |
| TechSpec Core Height (in) |
27.08 |
| TechSpec Core Length (in) |
14.37 |
| TechSpec Core Thickness (in) |
1.42 |
| TechSpec DPI |
2469 |
| TechSpec Drain Plug Thread Size |
M12 x 1.5 |
| TechSpec Engine Codes |
QR25DE |
| TechSpec Fluid Capacity (gal) |
2.03 |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.4 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| TechSpec Outlet (in) |
1.4 |
| TechSpec Overall Height (in) |
28 |
| TechSpec Overall Length (in) |
19.8 |
| TechSpec Overall Width (in) |
1.92 |
| TechSpec Overall Width (ins) |
1.92 |
| TechSpec Rows |
2 |
