Performance Aluminum Radiator, fits LS-Swapped Mazda RX-7 1993-1995
For those with an LS-swapped 1993-1995 Mazda RX-7 looking to enhance the overall performance and lifetime of their engine, the Mishimoto performance aluminum radiator is the ideal cooling system upgrade.With no cutting or modification required for a direct drop-in fitment, installation is easy and effortless.All Mishimoto radiators are designed and engineered to maximize cooling efficiency and most importantly, protect your car from overheating.
- Provides a bolt-in cooling solution which simplifies the engine-swap process
- Full aluminum construction including durable, TIG-welded end tanks
- Features a two-row, 2.17-in thick, efficient brazed aluminum core
Application Summary:
| Year |
Make/Model |
| 1993-1995 |
Mazda RX-7 |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
CN |
| Dimensions |
27.34in x 19.5in x 2.67in |
| GTIN |
00748354804423 |
| Harmonized Tariff Code (Schedule B) |
8708915000 |
| Hazardous Material Code |
N |
| Install Difficulty |
3 |
| Installation Difficulty |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminum |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| SellingPoint01 |
Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap |
| SellingPoint02 |
Provides a bolt-in cooling solution which simplifies the engine-swap process |
| SellingPoint03 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint04 |
Features a two-row, 2.17-in thick, efficient brazed aluminum core |
| SellingPoint05 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint06 |
Provides efficient temperature reduction for street and/or track use |
| SellingPoint07 |
Efficient temperature regulation for both stock and forced induction vehicles |
| SellingPoint08 |

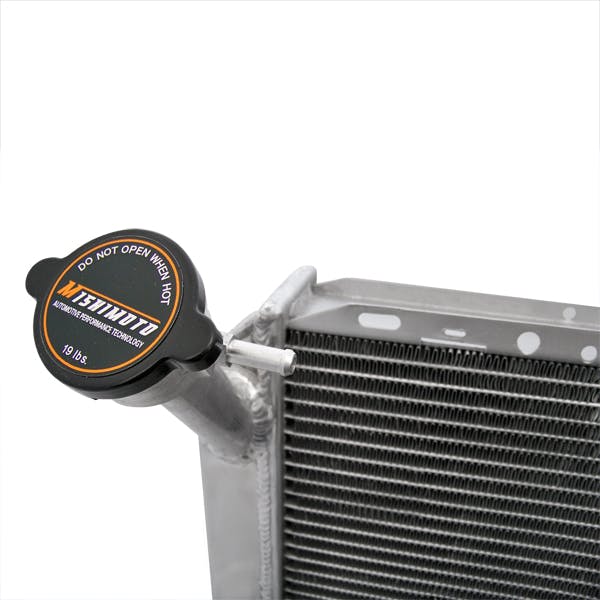

Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint09 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| SellingPoint1 |
Direct fit for the 1993-1995 FD Mazda RX7 with LSX engine swap |
| SellingPoint10 |
Mishimoto Lifetime Warranty |
| SellingPoint11 |
N/A |
| SellingPoint12 |
N/A |
| SellingPoint13 |
N/A |
| SellingPoint14 |
N/A |
| SellingPoint15 |
N/A |
| SellingPoint2 |
Provides a bolt-in cooling solution which simplifies the engine-swap process |
| SellingPoint3 |
Full aluminum construction including durable, TIG-welded end tanks |
| SellingPoint4 |
Features a two-row, 2.17-in thick, efficient brazed aluminum core |
| SellingPoint5 |
Increased fluid capacity and optimal heat dissipation |
| SellingPoint6 |
Provides efficient temperature reduction for street and/or track use |
| SellingPoint7 |
Efficient temperature regulation for both stock and forced induction vehicles |
| SellingPoint8 |
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system |
| SellingPoint9 |
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system |
| TechSpec Applications |
N/A |
| TechSpec Chassis Codes |
FD |
| TechSpec Core Height (in) |
15.75 |
| TechSpec Core Length (in) |
22.2 |
| TechSpec Core Thickness (in) |
2.17 |
| TechSpec DPI |
2067 |
| TechSpec Drain Plug Thread Size |
N/A |
| TechSpec Engine Codes |
LS |
| TechSpec Fluid Capacity (gal) |
N/A |
| TechSpec Includes |
Mishimoto Radiator--Mishimoto Radiator Cap--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in) |
1.38 |
| TechSpec Material |
Aluminum |
| TechSpec Note |
Some modification may be necessary due to differences in chassis construction and vehicle manufacturing tolerances----This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit. |
| TechSpec Outlet (in) |
1.5 |
| TechSpec Overall Height (in) |
27.34 |
| TechSpec Overall Length (in) |
19.5 |
| TechSpec Overall Width (in) |
2.67 |
| TechSpec Overall Width (ins) |
2.67 |
| TechSpec Rows |
2 |
