High Pressure

All components are designed to be compatible with water/methanol mix of up to 50% methanol. The Water/Meth solenoids are run by an injector driver output. If an extra output is not available (as would be the case on a HP ECU driving 8 injectors), PN 554-115 can be purchased that can be driven by a low side PWM output.

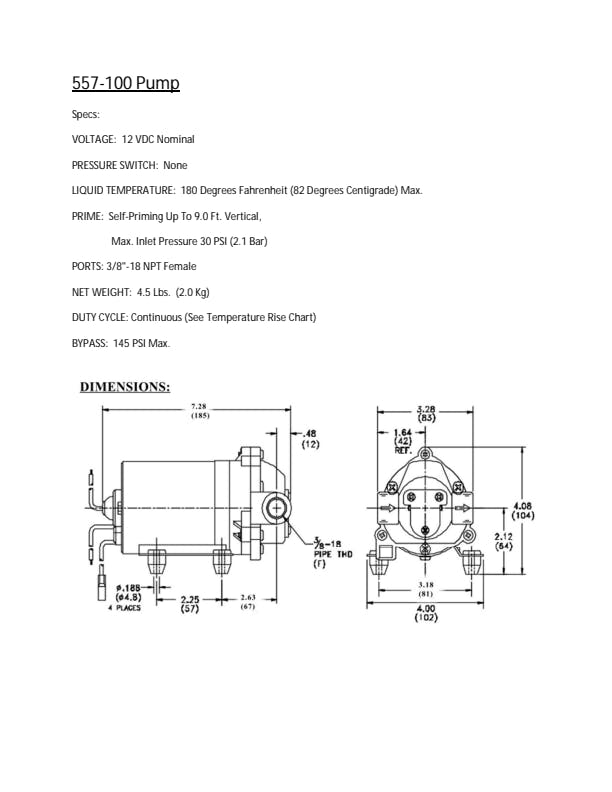

Voltage: 12 VDC Nominal
Pressure Switch: None
Liquid Temperature: 180 degrees Fahrenheit (82 Degrees Centigrade) Max.
Prime: Self-priming up to 9.0 ft. vertical; Max. Inlet Pressure 30 PSI (2.1 Bar)
Ports: 3/8"-18 NPT Female
Net Weight: 4.5 lbs. (2.0 Kg)
Duty Cycle: Continuous (See Temperature Rise Chart)
Bypass: 145 PSI Max.

Attributes
Amp Draw	7.5A @ 140PSI
Amperage Draw	7.5
Brand	Holley EFI, Holley EFI
California Proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Category	Air and Fuel Delivery
Country of Origin (Primary)	CA
Emission Code	5, 5
GTIN	00090127669235
Grade Type	Performance
Harmonized Tariff Code (Schedule B)	8409915085
Hazardous Material Code	N
Inlet / Outlet Size	3/8" - 18 NPT, 3/8" - 18 NPT
Inlet Size	0.375 in. - 18 NPT
Life Cycle Status Code	Available to Order
Max Pressure	145 PSI, 145 PSI
Maximum PSI	145
NAFTA Preference Criterion Code	D
Outlet Size	0.375 in. - 18 NPT
Product Type	Water Methanol part, Water Methanol part
SDR Required Flag	N
Sub Category	Water Injection System and Components
Warning	California Proposition 65, California Proposition 65
part type	Water / Methanol Injection Pump
