Compatible with Holley EFI, Sniper 1, and Terminator X

---

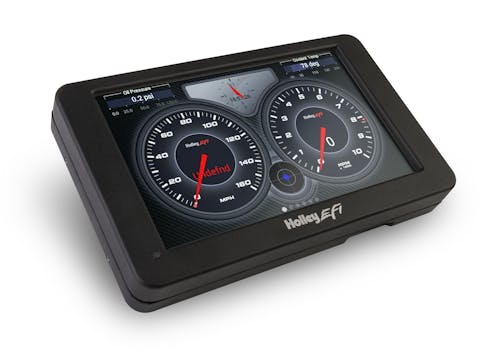

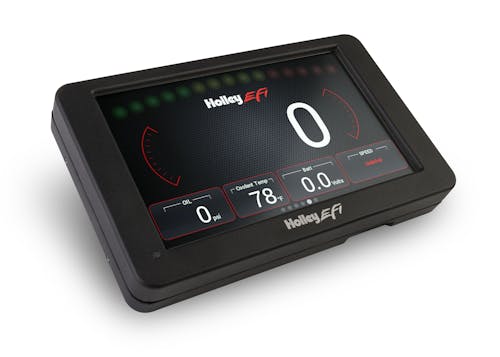

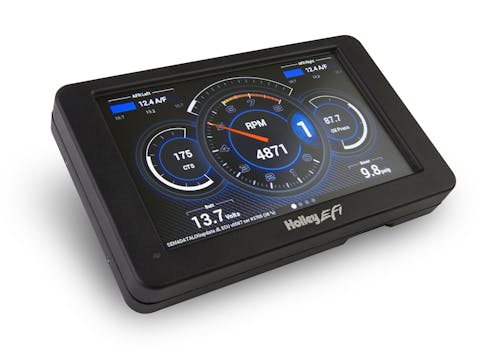

The Holley EFI 7" Digital Dash is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. The dash also offers a virtual switch panel, user-defined alarms, configurable shift lights, and can control on-screen playback of your EFI data logs. The Holley EFI Digital Dash measures 7.5" wide, 4.625" tall, and 1" deep which makes it a compact, customizable dash for use in a variety of motorsports applications. The Dash features a 7" low glare, high brightness, high contrast, full-color touch screen for easy viewing even in full sun, plug and plays connection to all Holley EFI systems as well as a weather proof aluminum housing featuring flexible mounting options. Monitor the power of your Holley EFI system at a glance!

• Plug and play connection to all Holley EFI systems via CAN bus

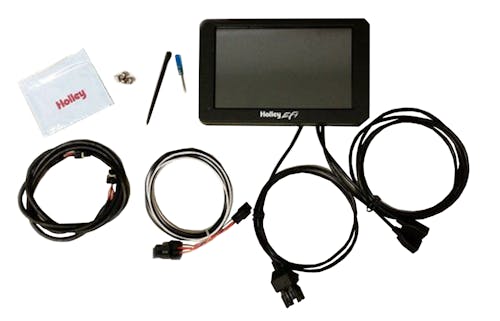

• Optional harness available to add physical inputs and outputs to the dash that can be used to perform multiple operations
• Integrated 3 Axis Accelerometer
• Compact, customizable 7" dash for use in a variety of motorsports applications
• 7" low glare, high brightness, high contrast, full color touch screen for easy viewing even in full sun
• 800x480 resolution with auto brightness
• Operating voltage min 8V - 20V

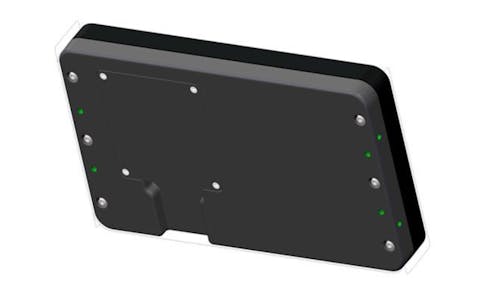

• Weather proof aluminum housing featuring flexible mounting options
• Completely customizable display of all EFI parameters including every user configurable input and output available

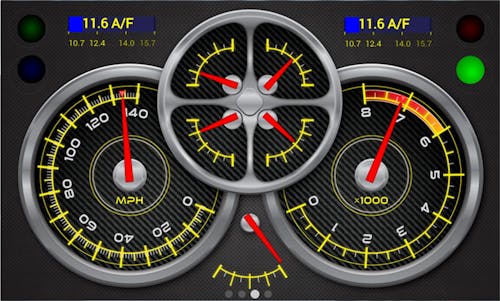

• Multiple gauge and indicator types with limitless customization options

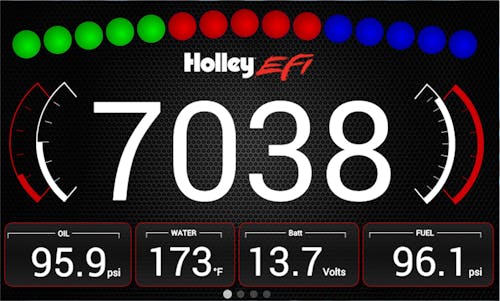

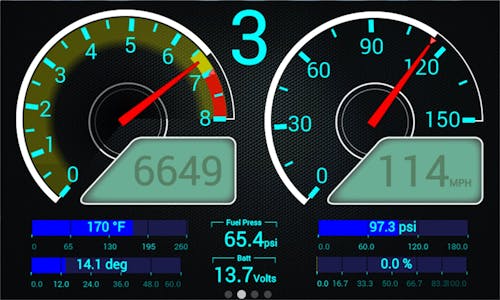

• Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
• Virtual Switch Panel (replaces the need for physical switches)
• User defined alarms for any input
• Configurable progressive shift lights and light bar
• Control and on screen playback of EFI data logs
• Download and save Holley EFI data logs to external USB memory stick
• Expandable internal storage on micro SD card
• Support for future USB devices
• Upgradable with future software enhancements

---

Information:

Software and firmware updates can be downloaded here for free. Tuning is not supported with Terminator X ECU's. A waterproof enclosure is recommended for installations that will be exposed to direct moisture, or water spray. The housing does have an O-ring gasket to prevent damage in the event of accidental or periodic exposure to water.
