For all Holley MPI / TBI / Terminator EFI systems up to 600 HP

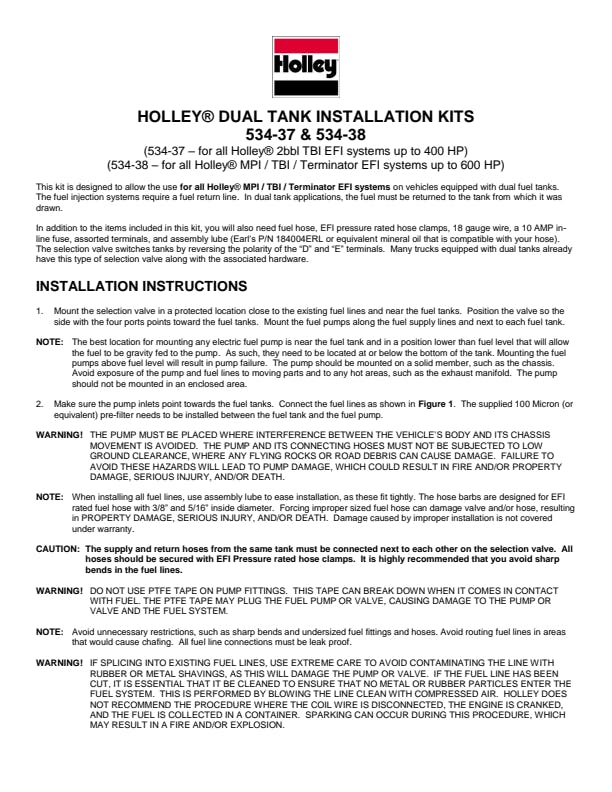

This kit is designed to allow the use for all Holley MPI / TBI / Terminator EFI systems on vehicles equipped with dual fuel tanks. The fuel injection systems require a fuel return line. In dual tank applications, the fuel must be returned to the tank from which it was drawn. Originally designed for all TBI 4 bbl Pro-Jection and 950 MPFI/4 bbl TBI systems.
This kit is designed to allow the use for all Holley MPI / TBI / Terminator EFI systems on vehicles equipped with dual fuel tanks. The fuel injection systems require a fuel return line. In dual tank applications, the fuel must be returned to the tank from which it was drawn. Originally designed for all TBI 4 bbl Pro-Jection and 950 MPFI/4 bbl TBI systems.
- For 4 barrel
- Dual tank use
- MPI, TBI, and Terminator EFI systems up to 600 HP
- Includes switching valve, relay, switch, and harness
- Review Associated Comments for further installation notes
Information:
In addition to the items included in this kit, you will also need fuel hose, EFI pressure rated hose clamps, 18 gauge wire, a 10 AMP inline fuse, assorted terminals, and assembly lube (Earl’s P/N 184004ERL or equivalent mineral oil that is compatible with your hose). The selection valve switches tanks by reversing the polarity of the “D” and “E” terminals. Many trucks equipped with dual tanks already have this type of selection valve along with the associated hardware.| Attributes | |
| Brand | Holley EFI |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category | Fuel Pumps and Accessories |
| Color | Silver |
| Country of Origin (Primary) | US |
| Emission Code | 5, 5 |
| Finish | Zinc |
| Free Flow GPH | 80 |
| Fuel Delivery Type | Fuel Injection, Fuel Injection |
| Fuel Sending Unit Included | No, No |
| Fuel Type | Gasoline, Gasoline |
| Gasket Or Seal Included | No, No |
| Grade Type | Performance, Performance |
| Harmonized Tariff Code (Schedule B) | 8409915085 |
| Hazardous Material Code | N |
| Inlet Type | Barb, Barb |
| Internal Or External | External, External |
| Life Cycle Status Code | Available to Order |
| Mounting Bracket Included | Yes, Yes |
| Mounting Hardware Included | No, No |
| NAFTA Preference Criterion Code | B |
| Negative Ground | Yes, Yes |
| Outlet Type | Barb, Barb |
| Product Type | Dual Tank, Dual Tank |
| Regulator Included | No, No |
| SDR Required Flag | N |
| Seal And Lock Ring Included | No, No |
| Strainer Included | Yes, Yes |
| Terminal Quantity | 2 |
| Universal Or Specific Fit | Specific, Specific |
| Warning | California Proposition 65, California Proposition 65 |
| Warranty | Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| Wiring Harness Included | Yes, Yes |
| GTIN | 00090127332207 |
