Holley Valve Covers w/ Coil Mounting Provisions - Service Part

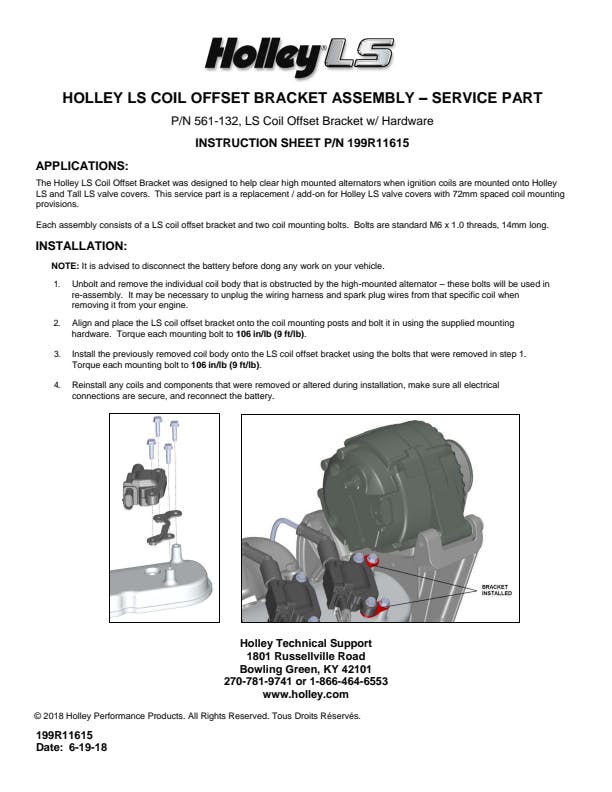

The Holley LS coil offset bracket was designed for use on vehicles equipped with Holley LS valve covers and high-mounted driver's side alternators. The bracket installs directly to the existing coil mounting posts and allows roughly 1" of extra clearance. This assembly was developed for use only with Holley cast aluminum LS valve covers with coil mounting provisions (72mm bolt spacing) and 5th gen LS coil bodies. Each bracket assembly includes one LS coil offset bracket and two mounting bolts.
- For use on Holley LS valve covers with coil mounting provisions (bolt spacing of 72 mm) and 5th gen LS coil bodies
- Torque mounting bolts to 106 in/lb (9 ft/lb)
Information:
Coil Not Included
Application Summary:
| Year |
Make/Model |
| 2008-2009 |
Buick Allure |
| 2008-2009 |
Buick LaCrosse |
| 2004-2007 |
Cadillac CTS |
| 1998-2002 |
Chevrolet Camaro |
| 2010-2015 |
Chevrolet Camaro |
| 1997-2013 |
Chevrolet Corvette |
| 2006-2009 |
Chevrolet Impala |
| 2006-2007 |
Chevrolet Monte Carlo |
| 2014-2017 |
Chevrolet SS |
| 2005-2006 |
Chevrolet SSR |
| 2006-2009 |
Chevrolet Trailblazer |
| 1998-2002 |
Pontiac Firebird |
| 2009 |
Pontiac G8 |
| 2005-2008 |
Pontiac Grand Prix |
| 2004-2006 |
Pontiac GTO |
| Attributes |
| Application |
Holley LS Valve Covers, Holley LS Valve Covers |
| Brand |
Holley, Holley |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category |
Ignition |
| Coil Mounting Studs |
n/a |
| Coil Spacing |
72mm, 72mm |
| Coil Type |
Gen V LS Coil / D510C, Gen V LS Coil / D510C |
| Country of Origin (Primary) |
CN |
| Emission Code |
5, 5 |
| Finish |
Black, Black |
| GTIN |
00090127047545 |
| Hardware Included |
Yes, Yes |
| Harmonized Tariff Code (Schedule B) |
8708990011 |
| Hazardous Material Code |
N |
| Height |
Standard |
| Life Cycle Status Code |
Available to Order |
| Logo |
None, None |
| Material |
Aluminum, Mixed |
| Mounting Hardware Included |
Yes |
| Mounting Hole Quantity |
2 |
| NAFTA Preference Criterion Code |
B |
| Product Type |
Valve Cover Accessories, Valve Cover Accessories |
| SDR Required Flag |
N |
| Style |
Components, Components |
| Sub Category |
Brackets, Flanges and Hangers |
| Thread |
M6 x 1.0, M6 x 1.0 |
| Thread Size |
M6 x 1.0 |
| Warning |
California Proposition 65, California Proposition 65 |
| Warranty |
Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| part type |
Ignition Coil Mounting Bracket |
