Fits Gen 3 Coyote Engines in 1953-1979 Ford F100, F150, and F250 2WD Trucks

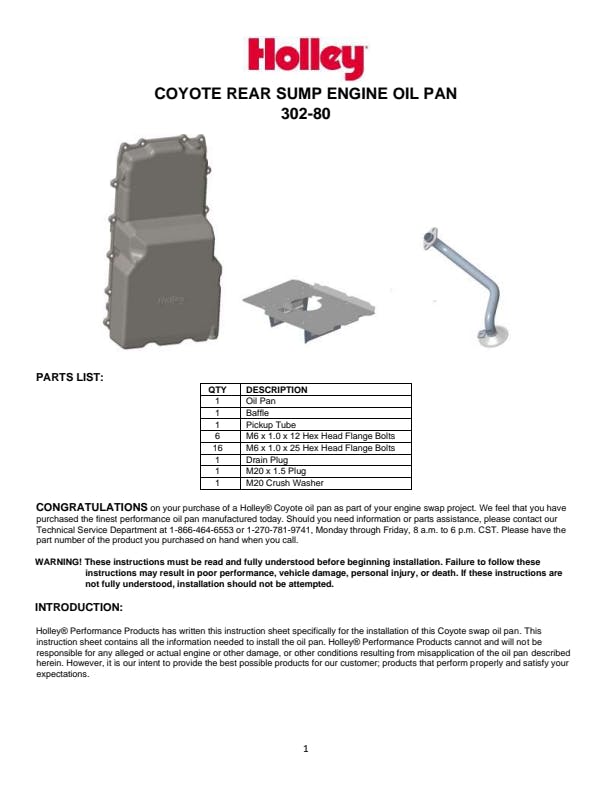

***You may need to make a custom tool from an inexpensive 1/4" drive 10mm deep socket to torque the outer bolt of the pick-up tube assembly flange to the oil pump. Image included in instructions.
- Maintains oil capacity of stock Mustang Coyote oil pan to ensure adequate oil supply in all street performance and factory-stock type racing applications.
- Oil pan fits 2018-2023 Gen 3 Coyote engines
- Installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics.
- Provides compatibility with the stock Gen 3 Mustang Coyote engine low-oil level sensor
- Proprietary design pick-up tube/O-ring and lower sump baffle plate are included.
- Provides 2 Bosses for drain-back for turbo applications (Unmachined)
- Traditional high-quality cast aluminum appearance with clean exterior styling
Information:
Compatible with Gen 3 5.0L Coyote engines (2018-2023 Ford 5.0L Coyote Engines). ***You may need to make a custom tool from an inexpensive 1/4" drive 10mm deep socket to torque the outer bolt of the pick-up tube assembly flange to the oil pump. Image included in instructions.
Application Summary:
| Year |
Make/Model |
| 1953-1979 |
Ford F-100 |
| 1975-1979 |
Ford F-150 |
| 1953-1979 |
Ford F-250 |
| Attributes |
| Application |
F150, 1953-1979 Ford F100 |
| Baffled |
No |
| Brand |
Holley, Holley |
| Capacity |
7.6 |
| Category |
Engine, Oil Pans |
| Color |
Silver |
| Country of Origin (Primary) |
CN |
| Crank Shaft Wiper Included |
No |
| Dipstick Port |
No |
| Drain Plug Included |
Yes |
| Emission Code |
5, 5 |
| Engine |
Ford Coyote, Ford Coyote |
| Finish |
Natural Cast |
| GTIN |
00090127617175 |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8409915085 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
Aluminium |
| Oil Level Sensor Port |
Yes |
| Oil Pan Capacity |
7.6 Quarts, 7.6 Quarts |
| Oil Pan Type |
Cast, Cast |
| Oil System Capacity (w/ filter) |
8.1 Quarts, 8.1 Quarts |
| Pickup Included |
Yes |
| Product Type |
Oil Pan Kit, Oil Pan Kit |
| SDR Required Flag |
N |
| Sub Category |
Cylinder Block Components, Cylinder Block Components |
| Sump Location |
Rear |
| Sump Type |
Wet |
| Turbo Oil Drainback |
Boss present (needs drilled and tapped), Boss present (needs drilled and tapped) |
| Warning |
California Proposition 65, California Proposition 65 |
| Warranty |
Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| Windage Tray Included |
No |
| part type |
Engine Oil Pan, Engine Oil Pan |
