Fits 1973-1987 GM K10 LT Swapped Trucks and Other 4WD LT Swap Projects

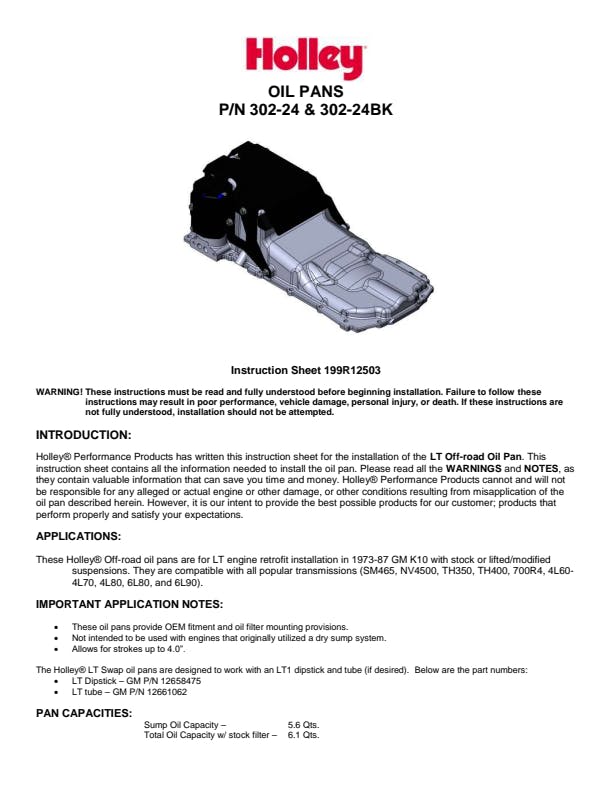

*See Installation Notes below for important information regarding necessary modifications to windage tray, capacity, etc. (see instructions for full details).
- Fits GM K10 and other LT Swapped 4-wheel drive applications
- Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE flange gasket and sealing, proper structural rigidity, and OE bell-housing attachments
- Compatible with hinged-door baffle #302-34 and rock shield #302-35 which can be added at any time
- Traditional high-quality cast aluminum appearance with clean exterior styling
- Complete kit including sump baffle, pick-up tube, pick-up o-ring, oil filter stud, & oil passage cover
- Maximum crankshaft stroke - 4.00-inches
Information:
Maximum crankshaft stroke = 4.00"
Sump Oil Capacity - 5.6 Quarts
Total Oil Capacity with stock oil filter - 6.1 Quarts
Parts Needed:
LT Dipstick - GM Part # 12658475
LT Dipstick Tube - GM Part # 12661062
Oil Pan Gasket (Mr. Gasket P/N 6665G, GM® 12612350, or equivalent)
Mr. Gasket 78080G, GM 12378521, or equivalent high-quality RTV sealer (as there is not a gasket like on the Gen III/IV LS)
Thread sealant (Loctite® brand 567 or equivalent)
Oil Filter (AC Delco® PF64, Wix WL10255 family, or equivalent)
Compatible with all popular transmissions (SM465, NV4500, TH350, TH400, 700R4, 4L60-4L70, 4L80, 6L80 and 6L90).
*These pans are not intended to be used with engines that originally utilized a dry sump system.
Application Summary:
| Year |
Make/Model |
| 1988-2002 |
Chevrolet C1500 |
| 1992-1999 |
Chevrolet C1500 Suburban |
| 1988-2000 |
Chevrolet C2500 |
| 1992-1999 |
Chevrolet C2500 Suburban |
| 1988-2000 |
Chevrolet C3500 |
| 1988-1999 |
Chevrolet K1500 |
| 1988-2000 |
Chevrolet K2500 |
| 1988-2000 |
Chevrolet K3500 |
| 1995-2002 |
Chevrolet Tahoe |
| 1988-1999 |
GMC C1500 |
| 1992-1999 |
GMC C1500 Suburban |
| 1988-2000 |
GMC C2500 |
| 1992-1999 |
GMC C2500 Suburban |
| 1988-2000 |
GMC C3500 |
| 1988-1999 |
GMC K1500 |
| 1988-2000 |
GMC K2500 |
| 1988-2000 |
GMC K3500 |
| Attributes |
| Application |
GM Gen V LT |
| Baffled |
No |
| Brand |
Holley, Holley |
| Capacity |
5.6 |
| Category |
Engine |
| Category Filter |
Oil Pans |
| Choose Your Part |
Oil Pan Kit, Oil Pan Kit |
| Clearance Category |
Oil Pans |
| Color |
Black |
| Country of Origin (Primary) |
CN |
| Crank Shaft Wiper Included |
No |
| Dipstick Port |
No |
| Drain Plug Included |
Yes |
| Emission Code |
5, 5 |
| Engine |
GM Gen V (LT), GM Gen V (LT) |
| Finish |
Black Powdercoated |
| GTIN |
00090127842362 |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8409915085 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
Cast Aluminum |
| Maximum Stroke |
4.00", 4.00" |
| Oil Pan Capacity |
5.6 Quarts, 5.6 Quarts |
| Oil Pan Type |
Off-Road / 4WD, Off-Road / 4WD |
| Oil System Capacity (w/ filter) |
6.1 Quarts, 6.1 Quarts |
| Pickup Included |
Yes |
| Product Type |
Oil Pan Kit, Oil Pan Kit |
| SDR Required Flag |
N |
| Sub Category |
Cylinder Block Components |
| Sump Location |
Rear |
| Sump Type |
Wet |
| Turbo Oil Drainback |
No, No |
| Warning |
California Proposition 65, California Proposition 65 |
| Warranty |
Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| Windage Tray Included |
No |
| part type |
Engine Oil Pan |
