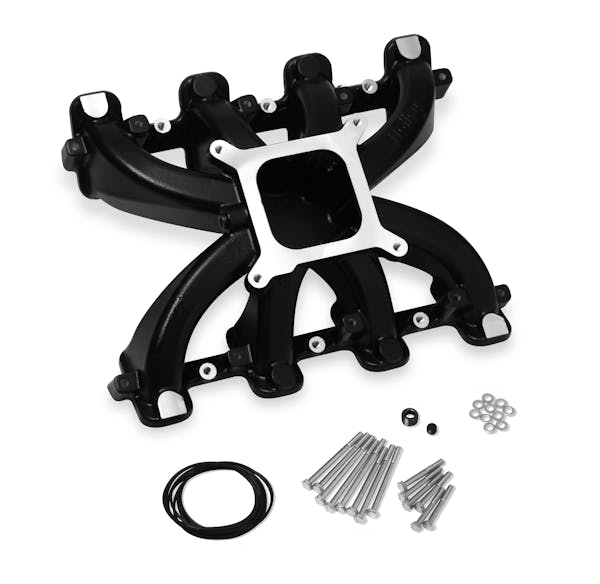

Black Ceramic Coated Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS3/L92 style rectangular port cylinder heads
- 2500-7000 RPM power band
- Port size - 2.50" height x 1.15" wide
- Includes Viton® O-ring intake to cylinder head gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
- 4150 Square bore flange (accepts up to 1.75" diameter throttle bores)
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fit in vehicles with minimum hood modifications
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.
- Height (front) - 5.417" to the lifter valley cover flange at the engine block front flange
Information:
Includes mounting bolts & washers. Also includes O-ring cylinder head mounting flange gaskets for an OEM style seal.
Application Summary:
| Year |
Make/Model |
| 2007-2008 |
Cadillac Escalade |
| 2007-2008 |
Cadillac Escalade ESV |
| 2007-2008 |
Cadillac Escalade EXT |
| 2010-2015 |
Chevrolet Camaro |
| 2008-2013 |
Chevrolet Corvette |
| 2014-2017 |
Chevrolet SS |
| 2008 |
Chevrolet Tahoe |
| 2007-2008 |
GMC Sierra 1500 |
| 2007-2008 |
GMC Yukon |
| 2007-2008 |
GMC Yukon XL 1500 |
| 2008 |
Hummer H2 |
| 2009 |
Pontiac G8 |
| Attributes |
| ASIN |
B00VWJV9LW |
| Basic Operating RPM Range |
2500-7000 |
| Brand |
Holley |
| California Proposition 65 |
No |
| Category |
Intake Manifolds, Air and Fuel Delivery |
| Category Filter |
Intake Manifolds |
| Clearance Category |
Intake Manifolds |
| Construction |
Cast |
| Country of Origin (Primary) |
CN |
| Cylinder Head Type |
LS3/L92 |
| Emission |
Without EGR |
| Emission Code |
3, Off Road |
| Engine |
GM LS3/L92 |
| Engine Make/Size |
GM LS3/L92 |
| Finish |
Black |
| Flange Style |
4150 Square Bore |
| Front Height |
5.417 in., 5.417 inch |
| Fuel System Type |
Carb |
| GTIN |
00090127715901 |
| Harmonized Tariff Code (Schedule B) |
8409918000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Manifold Type |
Single Plane |
| NAFTA Preference Criterion Code |
B |
| Number of Carbs |
One |
| Plenum Finish |
Black |
| Position |
Upper |
| Product Type |
Manifold, Intake Manifold |
| RPM Power Band |
2500-7000, 2500-7000 RPM |
| RPM Range |
2500-7000 |
| Rear Height |
5.417 in., 5.417 inch |
| SDR Required Flag |
N |
| Sale Category |
Air and Fuel Delivery |
| Sub Category |
Cylinder Block Components |
| Usage |
Street/Strip |
| Warning |
California Proposition 65 |
| Warranty |
Limited 90 Day, Manufacturer's Limited 90 Day Warranty |
| part type |
Engine Intake Manifold |
