Universal - Black Aluminum with Mounting Bracket for Panel Mounting to the Firewall or Inner Fender
Holley's remote mounted power steering reservoirs are ideal for applications that can not fit a pump mounted reservoir. These lightweight aluminum reservoirs have an internal baffle and air separator to keep the fluid from getting foamy or overflowing. Choose from two styles of reservoirs - Use 198-211 (polished aluminum finish) for custom & racing applications (fabricate mount or use clamps for mounting), or 198-212 has a black finish, and includes mounting bracket. Reservoirs include AN fittings.
The dual inlet ports support the plumbing required for Hydro-Boost brake systems. The factory style plastic pump-mounted power steering reservoir does not have the extra inlet port that is required for Hydro-Boost. These remote reservoirs when used with Earls power steering pump adapters (PS0001ERL, PS0002ERL, PS003ERL, PS0004ERL) eliminate the plastic reservoir & allow easy plumbing for the outlet from the Hydro-Boost to the reservoir. If you don't have a Hydro-boost brake system, install the included AN plug on the extra inlet port.
- Aluminum Construction
- Dual inlet Ports Support Hydro-Boost Brake Systems - Plumbing Solution with this Style Brakes when Used with Earls Pump Adapters
- Fluid Baffle with Air Separator Built Inside Reservoir - Reduces Foaming and Bubbles in Power Steering Fluid for Improved Steering Performance
- Port Sizes: (2) -8 ORB Ports on Top (Inlets) & (1) -10 ORB Port on the Bottom (Outlet)

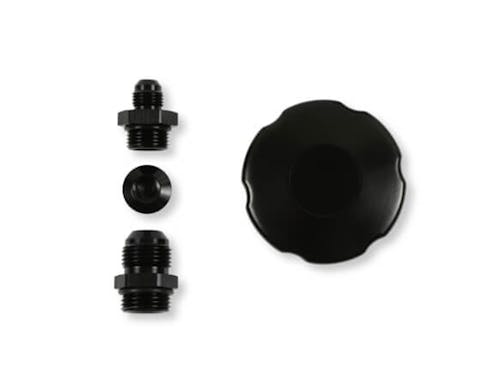

- Includes Fittings: (2) -6 AN Male Flare to -8 AN ORB, (1) -10 AN Male Flare to -10 AN ORB, and (1) -8 AN Port Plug
- Vented Cap - Allows Excess Pressure to be Released
- Includes Mounting Bracket

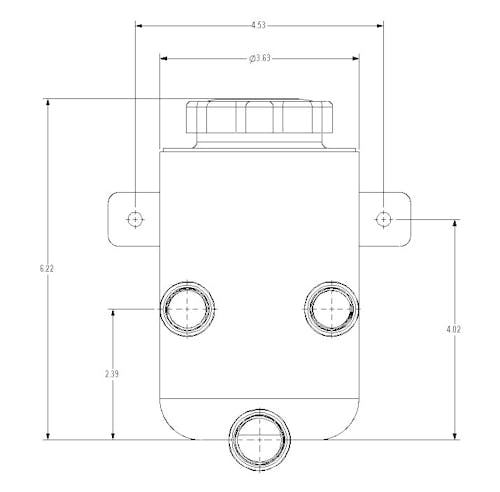

- Dimensions: Height 6.22", Width 3.63 - See Drawing
Information:
Holley's Power Steering hose and hose ends are recommended for the Power Steering (high pressure) plumbing. The low pressure feed hose that feeds fluid from the bottom of the reservoir to the power steering pump must be compatible with power steering fluid (I.e. UltraPro, Ultra-Flex, or Speed-Flex hose & hose ends are recommended
Application Summary:
| Year |
Make/Model |
| 1970-1974 |
Dodge Challenger |
| 1970-1974 |
Plymouth Barracuda |
| 1970-1974 |
Plymouth Cuda |
| Attributes |
| Adapter AN Size ( A ) |
6 AN MALE |
| Adapter AN Size ( C ) |
10 AN MALE |
| Adapter Port Size ( B ) |
3/4-16 (AN8) |
| Adapter Port Size ( C ) |
7/8-14 (AN10) |
| Adapter Port Size (A) |
3/4-16 (AN8) |
| Brand |
Holley |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Category |
Steering |
| Country of Origin (Primary) |
CN |
| Emission Code |
5, 5 |
| GTIN |
00090127122303 |
| Harmonized Tariff Code (Schedule B) |
8409910000 |
| Hazardous Material Code |
N |
| Height |
6.22, 6.22 |
| Height (in) |
6.22 |
| Life Cycle Status Code |
Available to Order |
| NAFTA Preference Criterion Code |
B |
| Product Type |
Power Steering Reservoir, Power Steering Reservoir |
| SDR Required Flag |
N |
| Sale Category |
Engine |
| Sub Category |
Power Steering Hoses, Pumps, and Related Components |
| Warning |
California Proposition 65, California Proposition 65 |
| Width (in) |
3.63 |
| part type |
Power Steering Reservoir |
