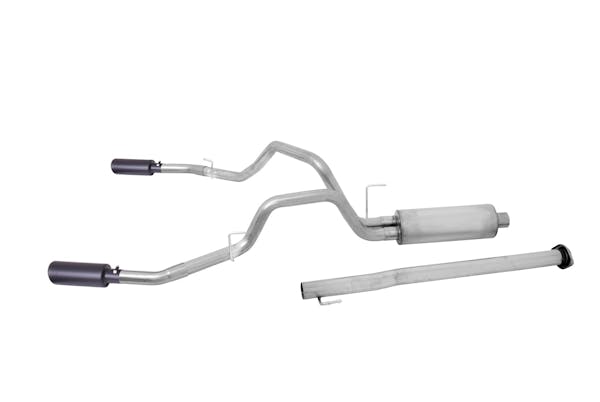

Black Elite Cat-Back Dual Split Exhaust System; Stainless
Don't waste a split second! The Black Elite Series displays performance and style by giving you the ultimate choice where there's no need to decide. Take on adventure with the Black Elite Series Split Rear. Each T-304 stainless tip is offered with a premium black ceramic finish applied with Gibson's formulated process exclusive only to the Black Elite Series. For increased style and Performance, the series pushes the sound through our proven stainless steel Superflow Muffler giving you a rich deeper tone. With this perfect combination, Gibson Performance exceeds expectations with the ability to offer quality and style beating their competitors while being made in the USA. The Black Elite Series offers hassle-free bolt on installation and lifetime limited warranty.
- Stainless Mandrel Bent Tubing
- Superflow™ CFT Stainless Performance Muffler
- Baffled/Chambered Muffler; No Internal Packing
- Minimal Interior Drone - Aggressive Sound
- Black Ceramic Rolled Slash-Cut Tip[s]
- Hassle-Free Bolt-On Installation
- Incl. All Hardware/Factory Style Hangers
- Lifetime Limited Warranty
Information:
Baffled And Chambered Muffler Design, No internal Packing, Minimal Interior Drone
Application Summary:
| Year |
Make/Model |
| 2015-2023 |
Ford F-150 |
| Attributes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Exhaust Type |
Cat-Back |
| Exit Position |
Dual Split Rear |
| Footnote |
Will not Fit SVT Raptor or Harley Davidson Edition |
| GTIN |
00677418031522 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
3.000 in. |
| Inlet Inside Diameter (in.) |
3 |
| Life Cycle Status Code |
Available to Order |
| Main Piping Diameter |
2.500 in. |
| Main Piping Diameter (in.) |
2.5 |
| Material |
Stainless Steel |
| Muffler Body Diameter |
7.000 in. x 7.000 in. |
| Muffler Body Diameter (in.) |
7 x 7 |
| Muffler Body Length |
19.000 in. |
| Muffler Body Length (in.) |
19.000 |
| Muffler Dimension |
7 in. Round Body; 3.00 in. Center Inlet; 2.50 in. Dual Outlet; L-19 in. |
| NAFTA Preference Criterion Code |
B |
| Outlet |
Dual |
| SDR Required Flag |
N |
| SDS Sheet Number |
N |
| Tail Pipe Diameter |
2.500 in., 4.000 in. |
| Tail Pipe Material |
Stainless Steel |
| Tip Description |
4in. Black Ceramic T304 Stainless. Rolled Slash-Cut Tip. Clamp on. |
| Tip Diameter |
4.000 in. |
| Tip Logo |
None |
| Tube Diameter |
2.500 in. |
| Tubing Diameter |
2.500 in. |
| Vehicle Category |
Black Elite |
