Cat-Back Dual Split Exhaust System; Stainless
For the enthusiast who wants an awesome look and aggressive throaty sound this Dual Split Cat back exhaust is for you. Gibson Exhaust Systems decrease backpressure and produce more torque and increased horsepower. Typical gains average of 15-20 horsepower. Stainless dual Tip exit straight out the back. Works with most bumpers, roll pans and trailer hitches. Exhaust sound is louder under towing conditions. Hassle Free bolt- on installation. No welding required. Backed by a Lifetime Limited Warranty.
- Stainless Mandrel Bent Tubing
- Superflow™ Muffler
- Baffled/Chambered Muffler; No Internal Packing
- Minimum Interior Drone; Aggressive Sound

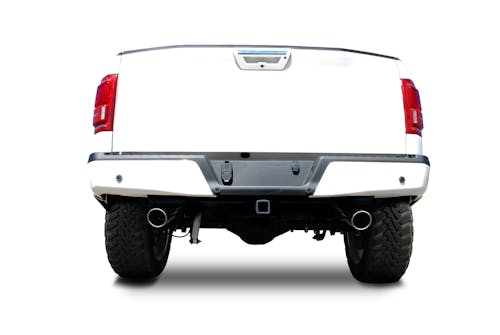

- Polished Stainless Slash-Cut Tip[s]
- Hassle Free Easy Bolt On Installation
- Incl. All Hardware/Factory Styles Hangers For Easy Bolt Install
- Lifetime Limited Warranty
Information:
T304 Stainless Steel; Mandrel Bent Tubing; Stainless Steel Superflow™ Muffler; Stainless Steel Clampless Slash Tips; Zinc Plated 3/8 in. to 1/2 in. Hangers/Clamps; Lifetime Limited Warranty
Application Summary:
| Year |
Make/Model |
| 2015-2023 |
Ford F-150 |
| Attributes |
| Additional Description |
Includes all hardware and factory style hangers for easy bolt on installation. |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) |
US |
| EMISSION CARB # |
50 State Legal California Emissions Compliant |
| Emission Code |
Legal US |
| Exhaust Type |
Dual |
| Exit Position |
Rear |
| Exit Style |
Straight |
| Footnote |
Will not Fit SVT Raptor or Harley Davidson Edition |
| GTIN |
00677418029277 |
| Harmonized Tariff Code (Schedule B) |
8708925000 |
| Hazardous Material Code |
N |
| Inlet Inside Diameter |
3.000 in. |
| Inlet Inside Diameter (in.) |
3 |
| Inlet Size (in.) |
3 |
| Life Cycle Status Code |
Available to Order |
| Material |
Stainless Steel |
| Muffler Body Length |
19.000 in. |
| Muffler Body Length (in.) |
19.000 |
| Muffler Dimension |
7 in. Round Body , 3.00 in. Center Inlet , 2.50 in. Dual Outlet , L 19 in. |
| Muffler Type |
Chambered |
| NAFTA Preference Criterion Code |
B |
| Outlet |
Dual |
| Outlet Outside Diameter |
3.000 in. |
| Outlet Outside Diameter (in.) |
3 |
| Outlet Size (in.) |
3 |
| Product Warranty |
Lifetime Limited Warranty |
| SDR Required Flag |
N |
| System Type |
Cat Back |
| Tail Pipe Diameter |
2.500 in. |
| Tail Pipe Material |
Stainless Steel |
| Tip Description |
4in. Polished T304 Stainless Rolled Slash Cut Tip. Clamp on. |
| Tip Diameter |
4.000 in. |
| Tip Logo |
None |
| Tip Size |
4.0 in. |
| Tip Specification |
Inlet 2.50 in. , Outlet 4.0 in. , L 12 in. |
| Tubing Diameter |
3.000 in. |
| Vehicle Category |
Truck and Suv |
